4.1.4 Additional Procedure/Procedural Differences
The disassembly/reassembly procedures of Epson Artisan800/Epson Stylus Photo PX800FW/Epson Stylus Photo TX800FW and Epson Artisan700/Epson Stylus Photo PX700W/
Epson Stylus Photo TX700W are different. Unless otherwise specified, this chapter describes Epson Artisan800/Epson Stylus Photo PX800FW/Epson Stylus Photo TX800FW.
Refer to the pages mentioned below for the disassembly/reassembly procedures of Epson Artisan700/Epson Stylus Photo PX700W/Epson Stylus Photo TX700W.
Each model is hereinafter called as follows.
Epson Artisan800/Epson Stylus Photo PX800FW/Epson Stylus Photo TX800FW: Artisan 800/PX800FW/TX800FW
Epson Artisan700/Epson Stylus Photo PX700W/Epson Stylus Photo TX700W: Artisan 700/PX700W/TX700W

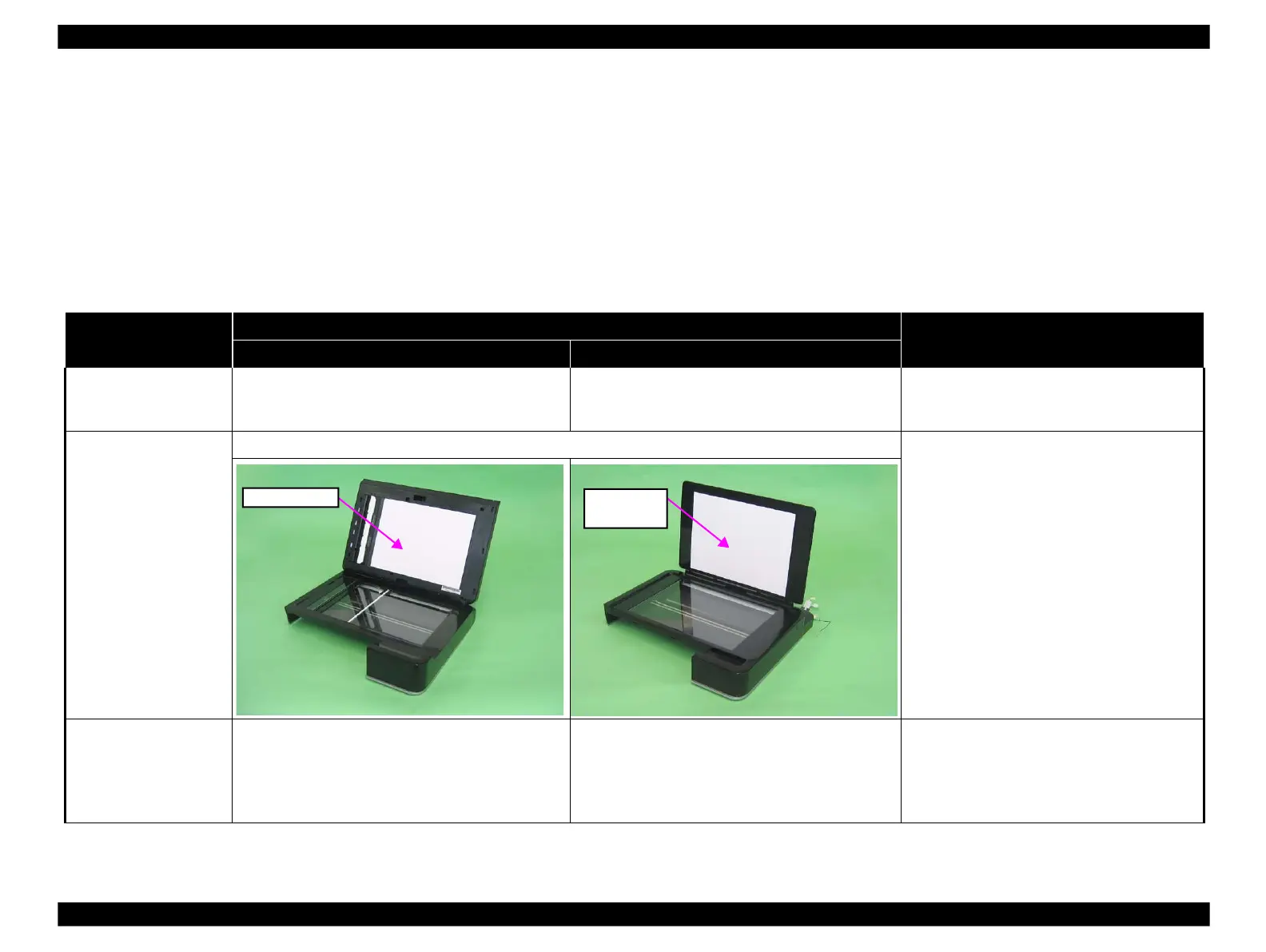

Table 4-3. Procedure Differences
Parts name
Reference page
Artisan 800/PX800FW/TX800FW
Artisan 700/PX700W/TX700W
ADF Unit
ADF mechanism
No ADF mechanism
 Artisan 800/PX800FW/TX800FW
◼ 4.2.2.1 " ADF Unit (Artisan 800/
PX800FW/TX800FW only) " (p.102)
The Document Cover and Housing are different depend on the ADF mechanism or not.
ADF Unit
Document
Cover
 Artisan 800/PX800FW/TX800FW
◼ 4.2.6 " Disassembly of the ADF Unit
(Artisan 800/PX800FW/TX800FW only) "
(p.174)
Scanner Unit
◼ 4.2.5 " Disassembling Scanner Unit "
(p.167)
 Artisan 700/PX700W/TX700W
◼ 4.3.3.1 " Document Cover " (p.200)
◼ 4.3.3.2 " Scanner Upper Housing (Artisan
700/PX700W/TX700W) " (p.201)
Panel Unit
7.8 inch touch panel
3.5 inch LCD
2.5 inch LCD
(no touch panel)
 Artisan 800/PX800FW/TX800FW
◼ 4.2.3.1 " Panel Unit " (p.115)
 Artisan 700/PX700W/TX700W
◼ 4.3.2.1 " Panel Unit (Artisan 700/PX700W/
TX700W) " (p.194)
