4.2.2.11
Right Housing / Card Cover
Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing/Paper Guide Top Assy/Upper Housing/Hinge/Rear Right FAX Housing
Removal procedure
1.
Remove the screws (x2) that secure the Right Housing.

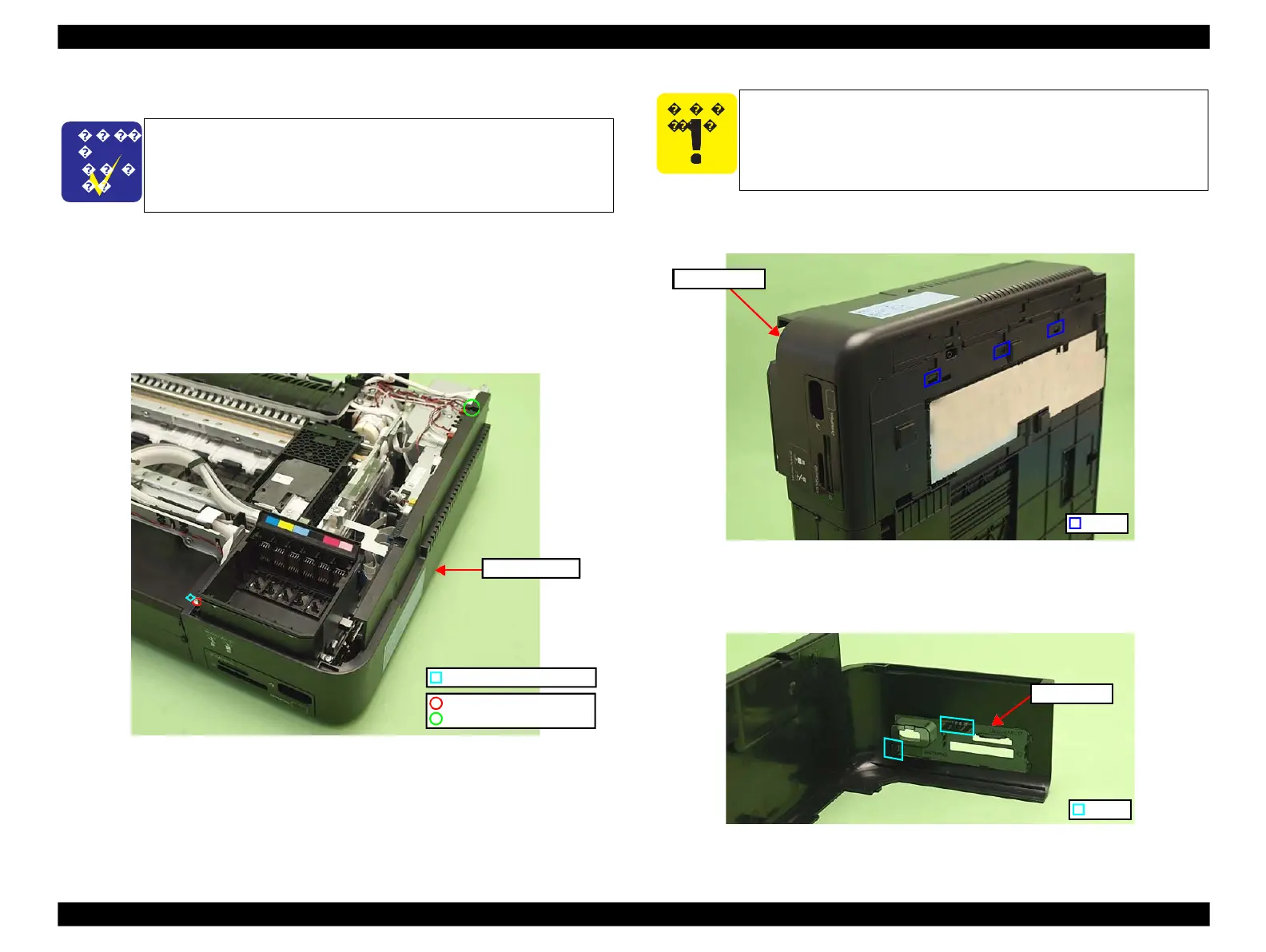

Figure 4-28. Removing the Right Housing/Card Cover (1)
2.
Release the dowel (x1) of the front side (See Fig. 4-28.) and hooks (x3) on the
bottom of the Right Housing, and remove the Right Housing.
Figure 4-29. Removing the Right Housing/Card Cover (2)
3.
Release the hooks (x2) from the back of the Right Housing and remove the
Card Cover.
Figure 4-30. Removing the Right Housing/Card Cover (3)
When removing the Right Housing, be careful not to let the Card
Cover interfere with the Card Slot Assy or the Card Cover may be
damaged.
The disassembly/reassembly procedures of Artisan 700/PX700W/
TX700W differ from those of Artisan 800/PX800FW/TX800FW.
See 4.3.1.7 "Right Housing/Card Cover (Artisan 700/PX700W/
TX700W)" (p193) for the procedures.
