Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
OPERATING PRINCIPLES
Overview
https://www.manualsbooks.com
50
Confidential
2.1.3 Motors & Sensors
The following describes the motors and sensors.

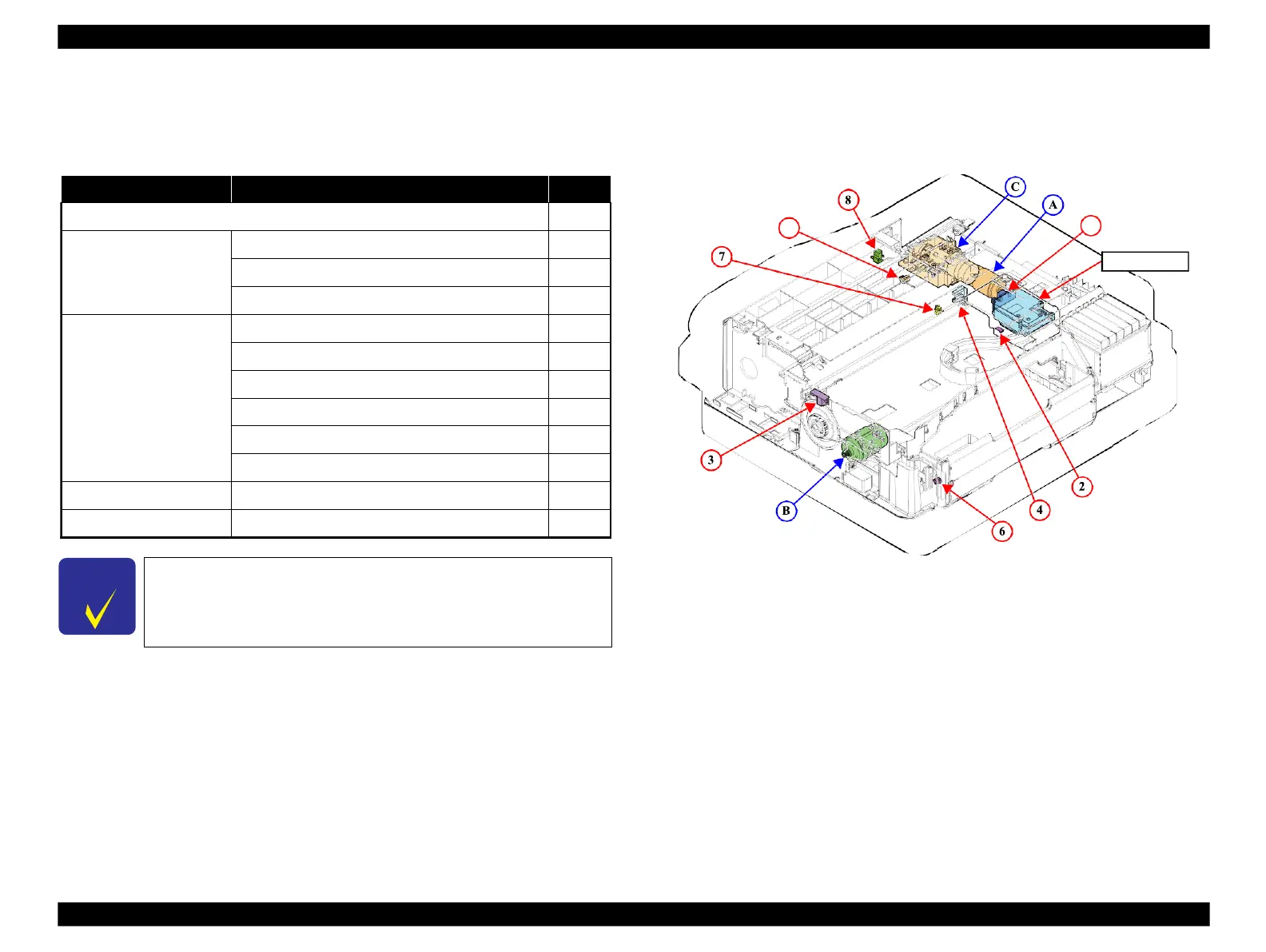

Table 2-1. Motors & Sensors (Printer)
Figure 2-3. Motors & Sensors (Printer)
�
�
�
�
�
� �
�
� �
See “ 3.2.1 Motor and Sensor Troubleshooting ” (p.55) for the each
motor and sensor specification.
Name
Motors & Sensors name
#
Printhead
---
Carriage mechanism
CR Motor
A
CR Encoder
1
PW Sensor
2
Paper feeding mechanism
PF Motor
B
PF Encoder
3
PE Sensor
4
CDR Tray Sensor
5
EJ Cover Open (Plunger)
6
Photo Tray Sensor
7
Ink Supply mechanism
Decompression Motor
C
Duplex Printing mechanism
Duplex Unit Sensor
8
5
1
Printhead
