Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
OPERATING PRINCIPLES
Overview
https://www.manualsbooks.com
51
Confidential
Table 2-2. Motors & Sensors (Scanner)
Name
Motors & Sensors name
#
Scanner Carriage Unit
---
Open/close detection
mechanism
Cover Open Sensor
9
Drive section of Scanner
Carriage mechanism
Scanner Motor
D
Scanner CR Encoder
10
Table 2-3. Motors & Sensors (ADF)
Name
Motors & Sensors name
#
Paper feeding mechanism
ADF Motor
E
ADF DOC Sensor
11
ADF PE Sensor
12

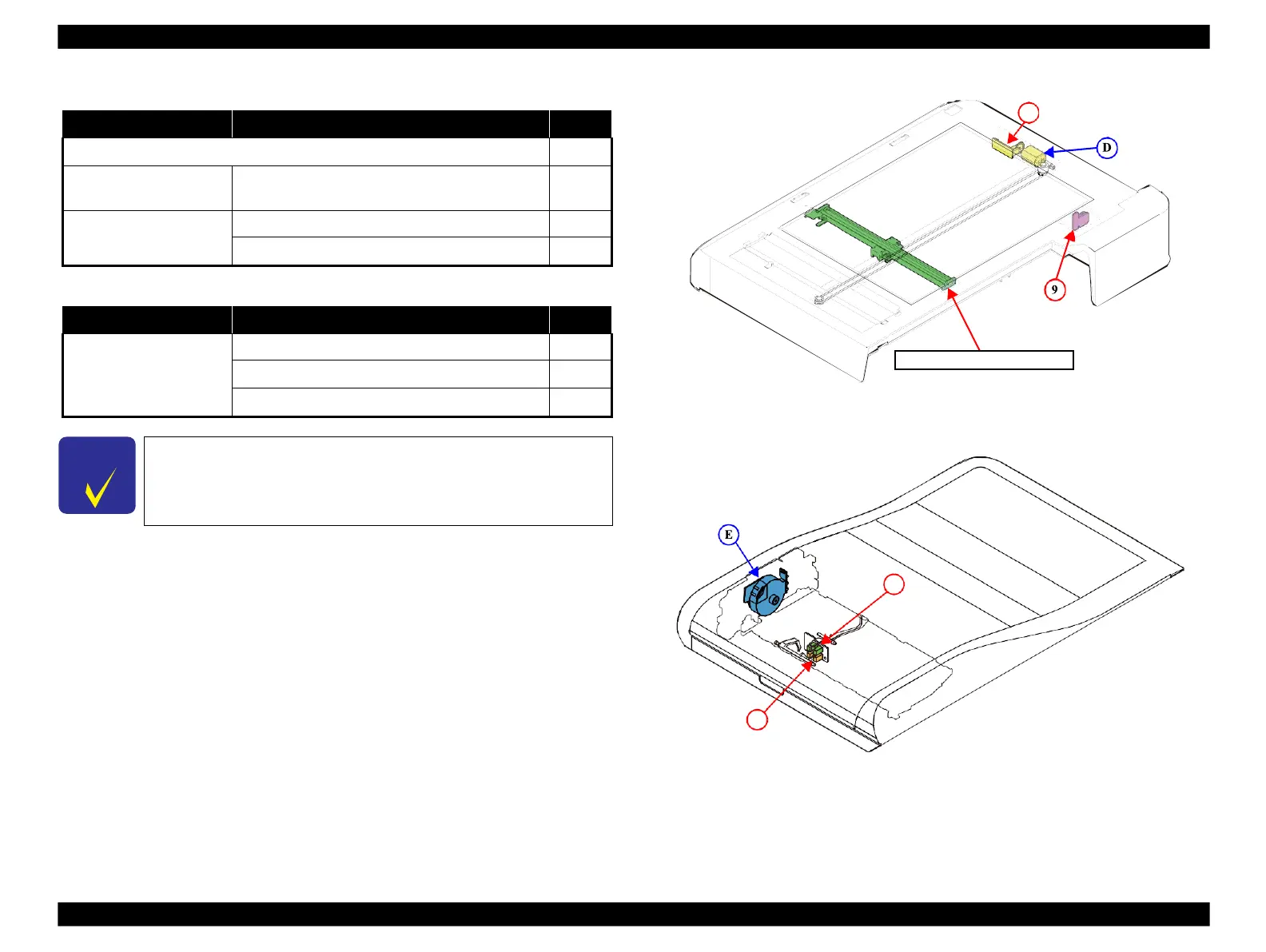

Figure 2-4. Motors & Sensors (Scanner)
Figure 2-5. Motors & Sensors (ADF)
10
Scanner Carriage Unit
11
12
�
�
�
�
�
� �
�
� �
See “ 3.2.1 Motor and Sensor Troubleshooting ” (p.55) for the each
motor and sensor specification.
