Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
174
Confidential
4.2.6 Disassembly of the ADF Unit (Artisan 800/
PX800FW/TX800FW only)
4.2.6.1 ADF Hinge
Parts/Components need to be removed in advance:
Scanner Unit/ADF Unit
Removal procedure

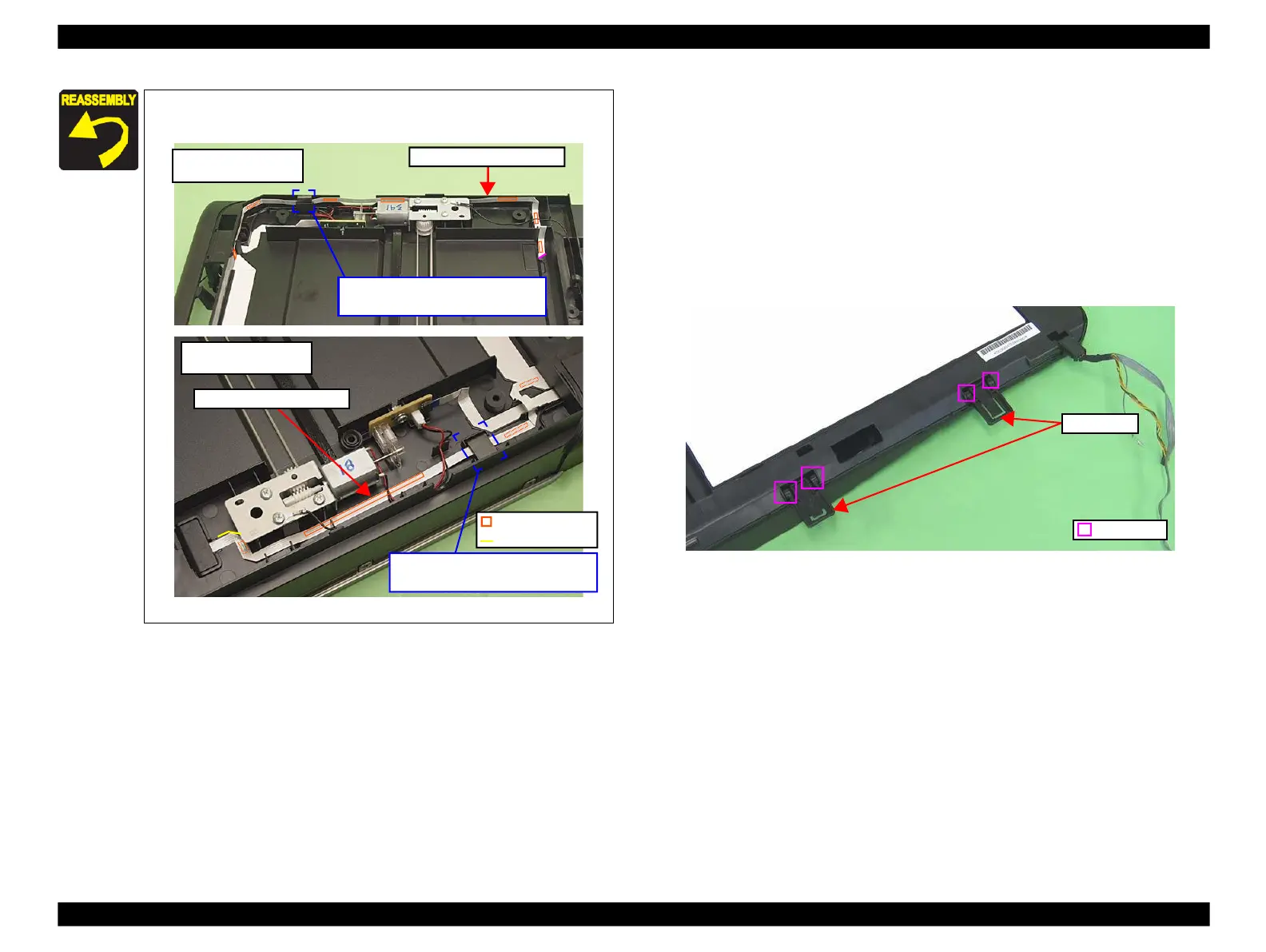

1. Release the guide pins (2 each) that secure the ADF Hinges, and remove the
ADF Hinges from the ADF Base Assy.
Figure 4-178. Removing the ADF Hinge
When routing the Cover Open Sensor FFC, route it as shown
below and in Fig. 4-171.
Cover Open Sensor FFC
Double-sided tape
Rib
Put FFC through ferrite core, and
secure it with double-sided tape (x4).
Figure 4-177. Routing the Cover Open Sensor FFC
Cover Open Sensor FFC
Artisan 700/PX700W/
TX700W
Put FFC through ferrite core, and
secure it with double-sided tape (x7).
Artisan 800/PX800FW/
TX800FW
Guide Pin
ADF Hinges
