4.3.1.7
Right Housing/Card Cover (Artisan 700/PX700W/TX700W)
Parts/Components need to be removed in advance:
Scanner Unit/Upper Left Housing/Paper Guide Top Assy/Upper Housing/Hinge/
Rear Right Housing
Removal procedure
1.
Remove the screw (x1) that secures the Right Housing.

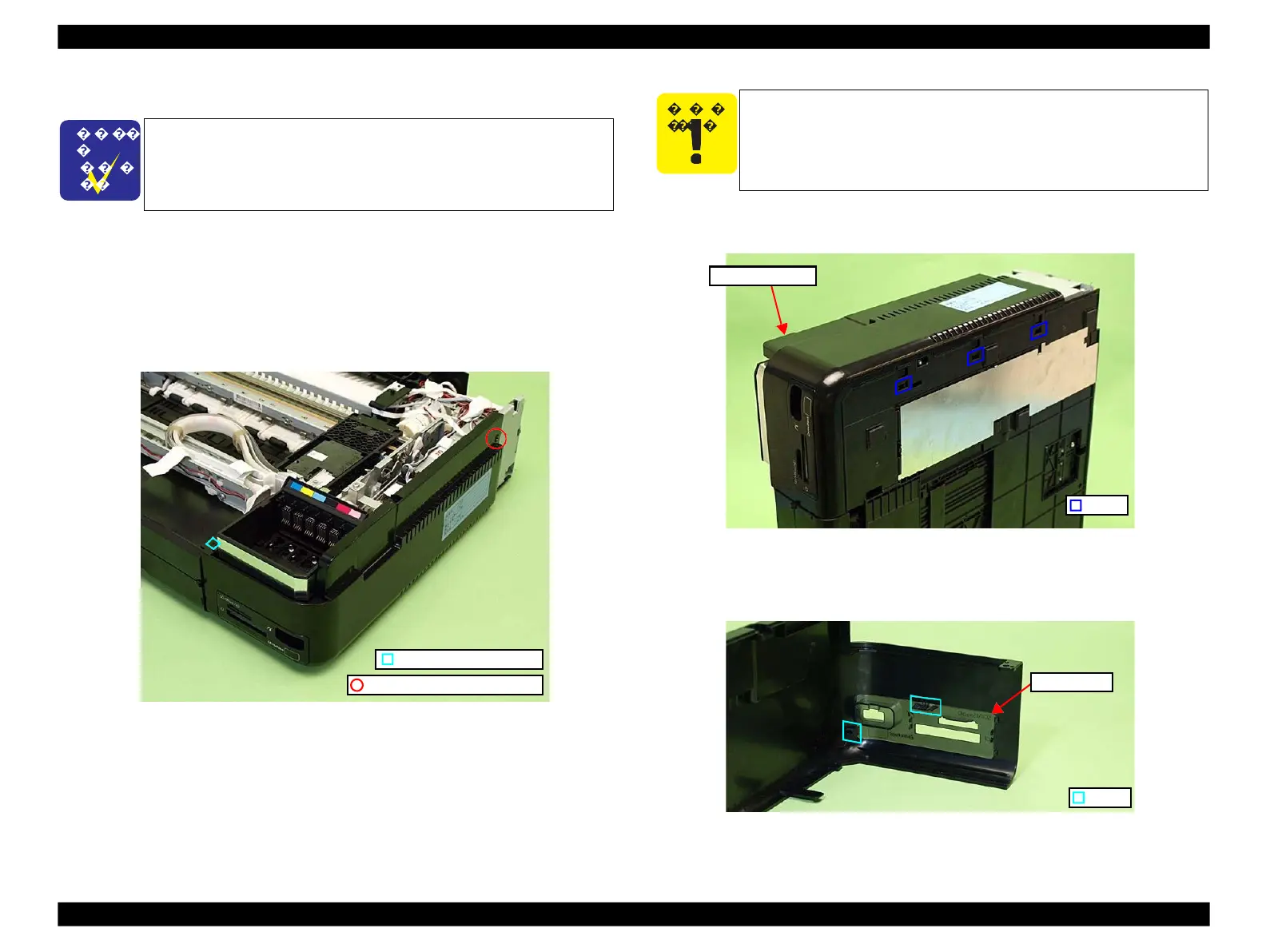

Figure 4-222. Removing the Right Housing/Card Cover (1)
2.
Release the dowel (x1) on the front side (See Fig. 4-222) and hooks (x3) on
the bottom of the Right Housing, and remove the Right Housing.
Figure 4-223. Removing the Right Housing/Card Cover (2)
3.
Release the hooks (x2) on the back of the Right Housing and remove the Card
Cover.
Figure 4-224. Removing the Right Housing/Card Cover (3)
When removing the Right Housing, be careful not to let the Card
Cover interfere with the Card Slot Assy or the Card Cover may be
damaged.
The disassembly/reassembly procedures for Artisan 800/PX800FW/
TX800FW differ from those of Artisan 700/PX700W/TX700W, see
4.2.2.11 "Right Housing / Card Cover" (p113) for the procedures.
