3.

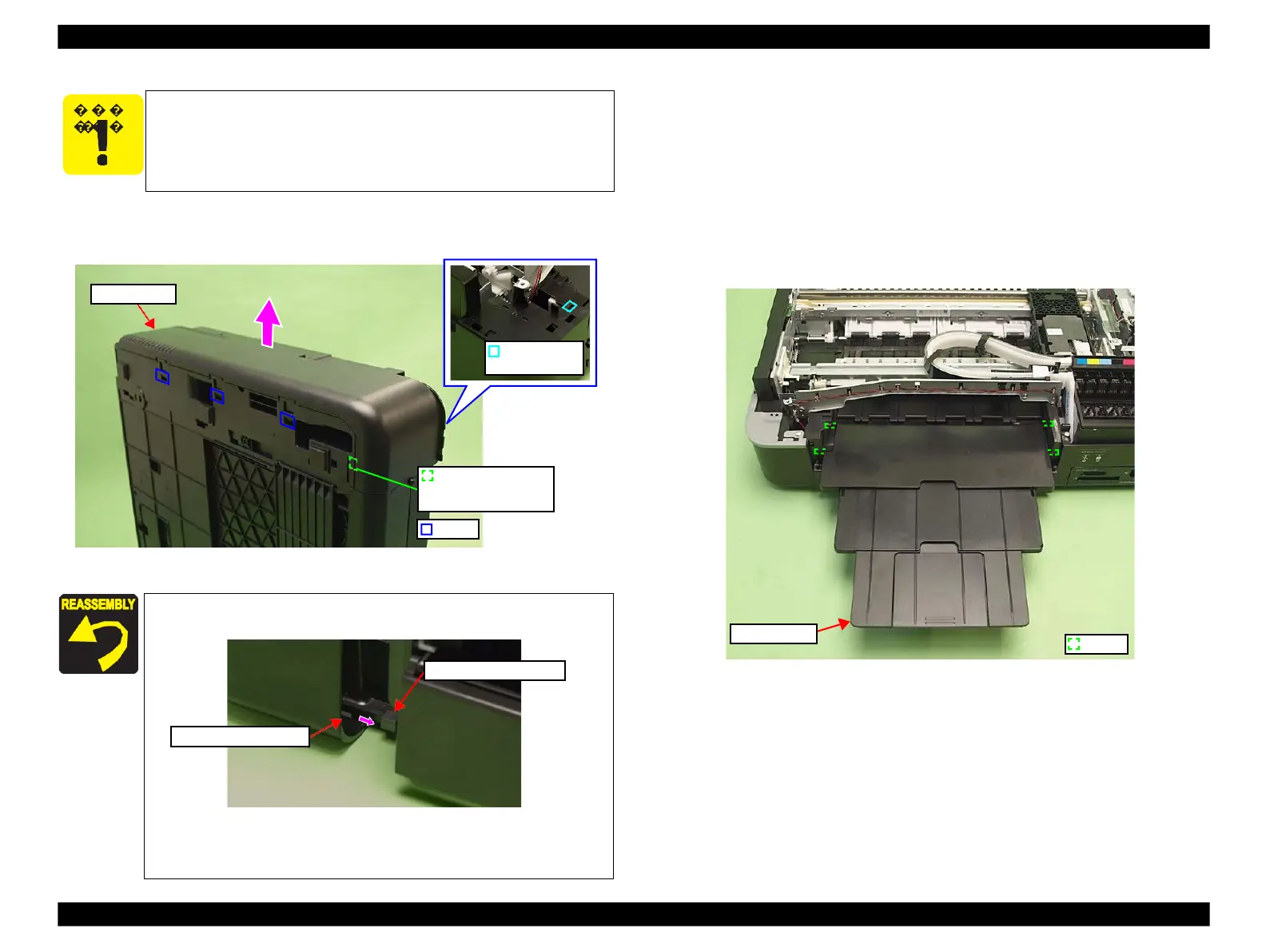

Release the hooks (x3) on the bottom and dowel (x1) on the front side of the
Left Housing, and remove the Left Housing in the direction of the arrow.
Figure 4-21. Removing the Left Housing / Decoration Belt L (2)
4.2.2.8
Stacker Assy
Parts/Components need to be removed in advance:
ADF Unit (Artisan 800/PX800FW/TX800FW only)/Scanner Unit/Upper Left
Housing/Paper Guide Top Assy/Upper Housing
Removal procedure
1.
Pull the Stacker Assy.
2.
Bend the center of the Stacker Assy and release the dowels (x4) from the
grooves of the Base Frame, and remove the Stacker Assy.
Figure 4-23. Removing the Stacker Assy
So as to make description easier, the printer in the photographs is
placed vertically in the following steps. Be careful about ink spilling
if the printer is tilted in practical operation.
The ribs of the Left
Housing and the Base
Frame are inside.
Align and insert the rib in the front inside of the Left Housing to
the inside of the rib of the Base Frame.
Figure 4-22. Installing the Left Housing
Align the positioning hole of the Left Housing with the dowel of
the Base Frame. (See Fig. 4-21.)
To Next Page
