Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
173
Confidential

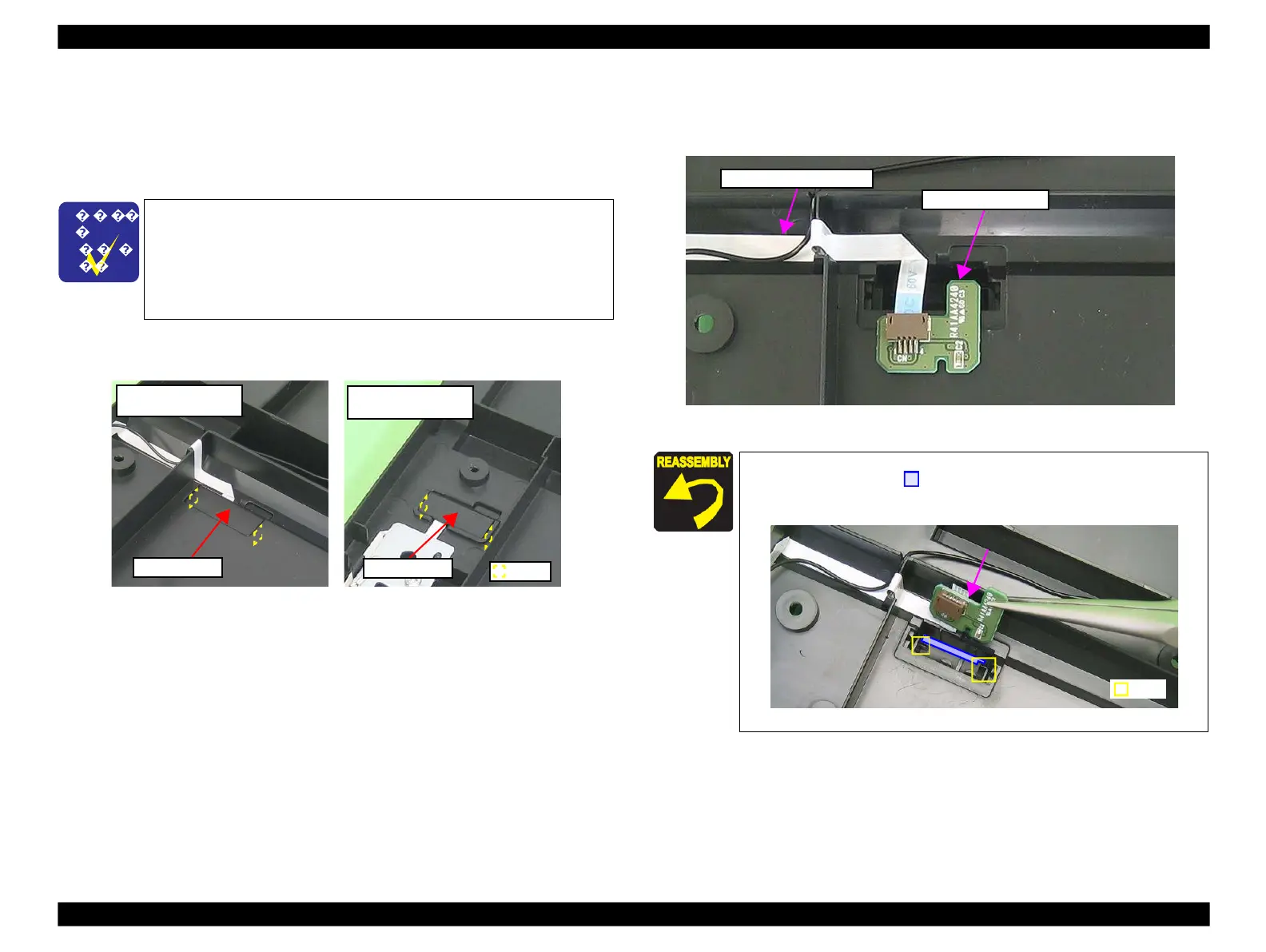

4.2.5.5 Cover Open Sensor
Parts/Components need to be removed in advance:
Scanner Unit/ADF Unit/Scanner Upper Housing
Removal procedure
1. Release the hooks (x2) of the Sensor Cover, and remove the Sensor Cover
from the Scanner Lower Housing.
Figure 4-174. Removing the Cover Open Sensor (1)
2. Disconnect the Cover Open Sensor FFC from the connector of the Cover
Open Sensor, and remove the Cover Open Sensor from the Scanner Lower
Housing.
Figure 4-175. Removing the Cover Open Sensor (2)
When attaching the Cover Open Sensor, insert it into the space
inside the ribs (x2) of the Scanner Lower Housing as shown
in Fig. 4-174.
Figure 4-176. Attaching the Cover Open Sensor
Rib
Cover Open Sensor
Some of the parts of Artisan 800/PX800FW/TX800FW differ from
those of Artisan 700/PX700W/TX700W.
Unless otherwise specified, this section describes the procedures for
Artisan 800/PX800FW/TX800FW. The differences that may affect
the disassembly/reassembly procedures of Artisan 700/PX700W/
TX700W will be provided in “ Reassembly” , etc.
Sensor Cover
Artisan 800/PX800FW/
TX800FW
Hook
Sensor Cover
Artisan 700/PX700W/
TX700W
Cover Open Sensor
Cover Open Sensor FFC
