Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Routing FFC/cables
https://www.manualsbooks.com
203
Confidential

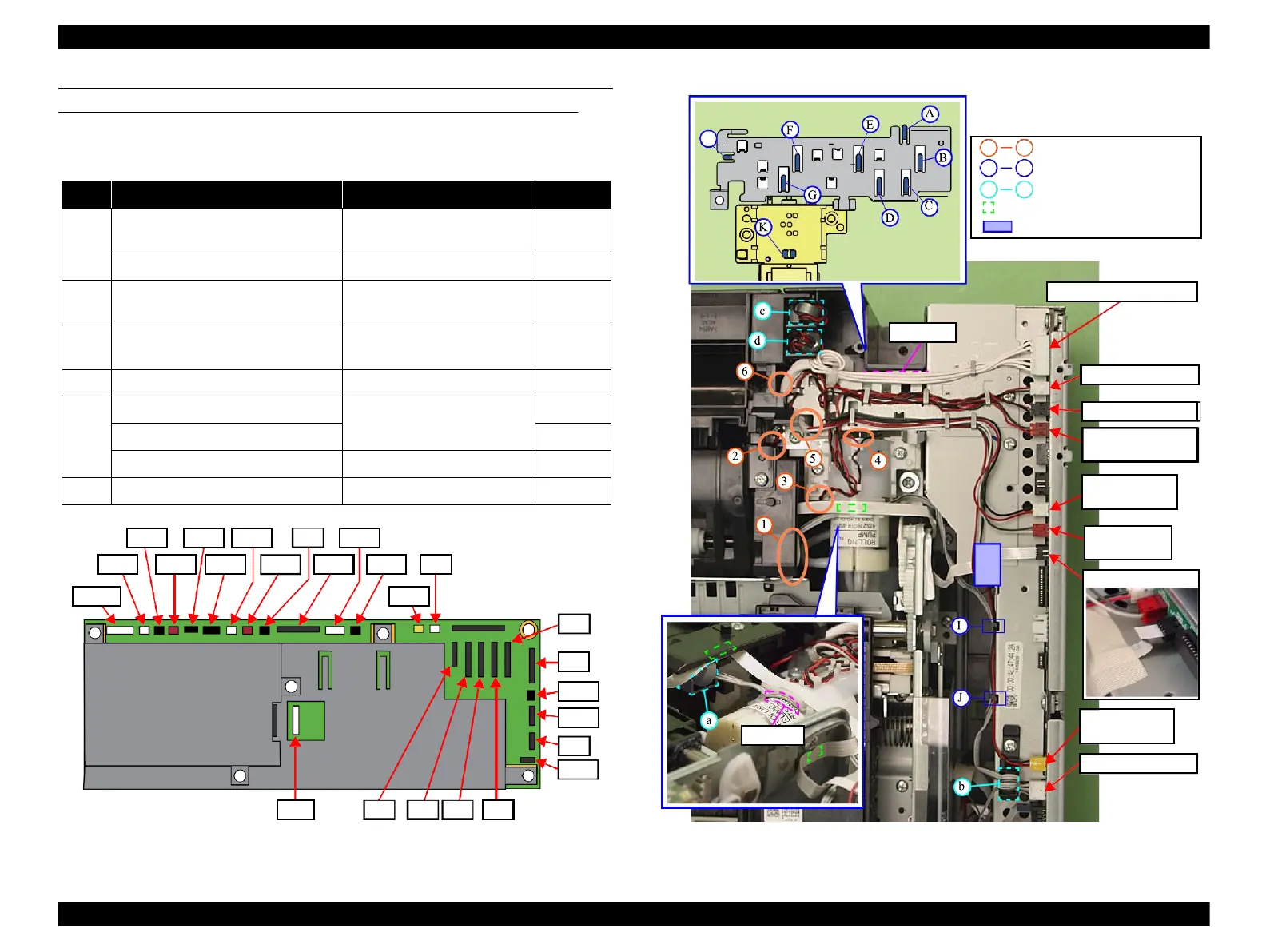

MAIN BOARD (TOP SIDE) (ARTISAN 800/PX800FW/TX800FW)
The following describes the routing orders of the cables and FFCs that are connected to
the Main Board.
Start
Cable
Route
CN No.
1
PE Sensor Cable
(Ferrite Core x2)
a → groove → I → J → b
CN9
PF Encoder FFC
Double-sided tape (x4)
CN8
2
PF Motor Cable
(Ferrite Core x1)
H → c → F → E → B
CN22
3
CR Motor Cable
(Ferrite Core x1)
K → d → F → E → B
CN21
4
Decompression Pump Motor Cable
K → F → E → B
CN24
5
Duplex Unit Sensor Cable
G → D → C
CN13
CDR Tray Sensor Cable
CN14
Photo Tray Sensor Cable
G → D → C → I → J
CN12
6
Power Supply Unit Cable
Align it to standard line → A
CN501
Figure 4-246. Main Board (Artisan 800/PX800FW/TX800FW)
Figure 4-245. Connector positions on the Main Board
(Artisan 800/PX800FW/TX800FW)
H
Decompression
Pump Motor Cable
CR Motor Cable
PE Sensor Cable
Photo Tray
Sensor Cable
Groove A
PF Encoder FFC
CDR Tray
Sensor Cable
Duplex Unit
Sensor Cable
PF Motor Cable
Base line
Power Supply Unit Cable
1 6
Routing hole for the FFC/cable
A K
Hook
a d
Ferrite Core position
Double-sided tape
Acetate tape
CN8
CN14
CN1
CN6 CN4 CN3
CN32
CN7
CN5
CN2
CN36
CN9
CN24
CN51
CN13
CN31
CN19
CN12
CN501
CN10
CN41
CN25
CN22
CN49
CN21
