Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Routing FFC/cables
https://www.manualsbooks.com
204
Confidential
MAIN BOARD (TOP SIDE) (ARTISAN 700/PX700W/TX700W)
Following describes routing the cables and FFCs that connect to the Main Board.
Start
Cable
Route
CN No.
1
PE Sensor Cable
(Ferrite Core x2)
a → groove A → F → G → b
CN9
PF Encoder FFC
Double-sided tape (x4)
CN8
2
PF Motor Cable
(Ferrite Core x1)
E → c → C → B
CN22
3
CR Motor Cable
(Ferrite Core x1)
H → d → C → B
CN21
4
Decompression Pump Motor Cable
H → C → B
CN24
5
Duplex Unit Sensor Cable
D → A
CN13
CDR Tray Sensor Cable
CN14
Photo Tray Sensor Cable
D → A → F → G
CN12
6
Power Supply Unit Cable
Groove B (Insert it between Base
Frame and Decompression Pump
Unit)
CN501

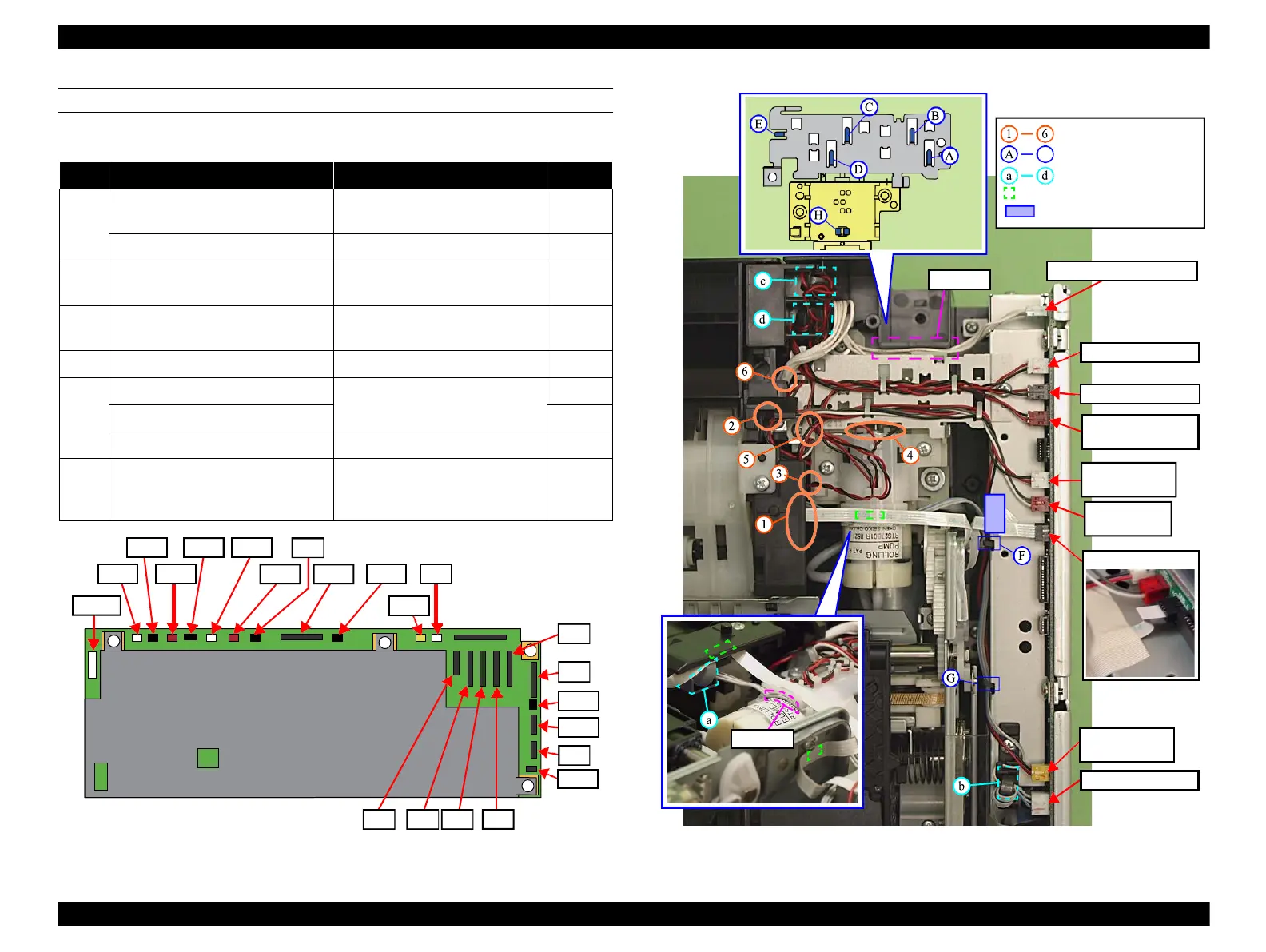

Figure 4-247. Connector positions on the Main Board
(Artisan 700/PX700W/TX700W)
Figure 4-248. Main Board (Artisan 700/PX700W/TX700W)
CN49
CN8
CN14 CN41
CN501
CN1
CN5
CN7
CN6 CN4 CN3 CN2
CN9
CN24
CN32
CN31
CN19
CN12
CN10
CN22
CN13
CN21
Routing hole for FFC/cable
H
Hook
Ferrite Core position
Double-sided tape
Acetate tape
CDR Tray
Sensor Cable
Duplex Unit
Sensor Cable
PE Sensor Cable
Photo Tray
Sensor Cable
Groove A
PF Encoder FFC
Decompression Pump
Motor Cable
CR Motor Cable
PF Motor Cable
Groove B
Power Supply Unit Cable
