3. Remove the E-ring.
4. Remove the torsion spring from the ADF PF Roller, and remove the ADF PF
Roller from the ADF Frame Unit in the direction of the arrow.

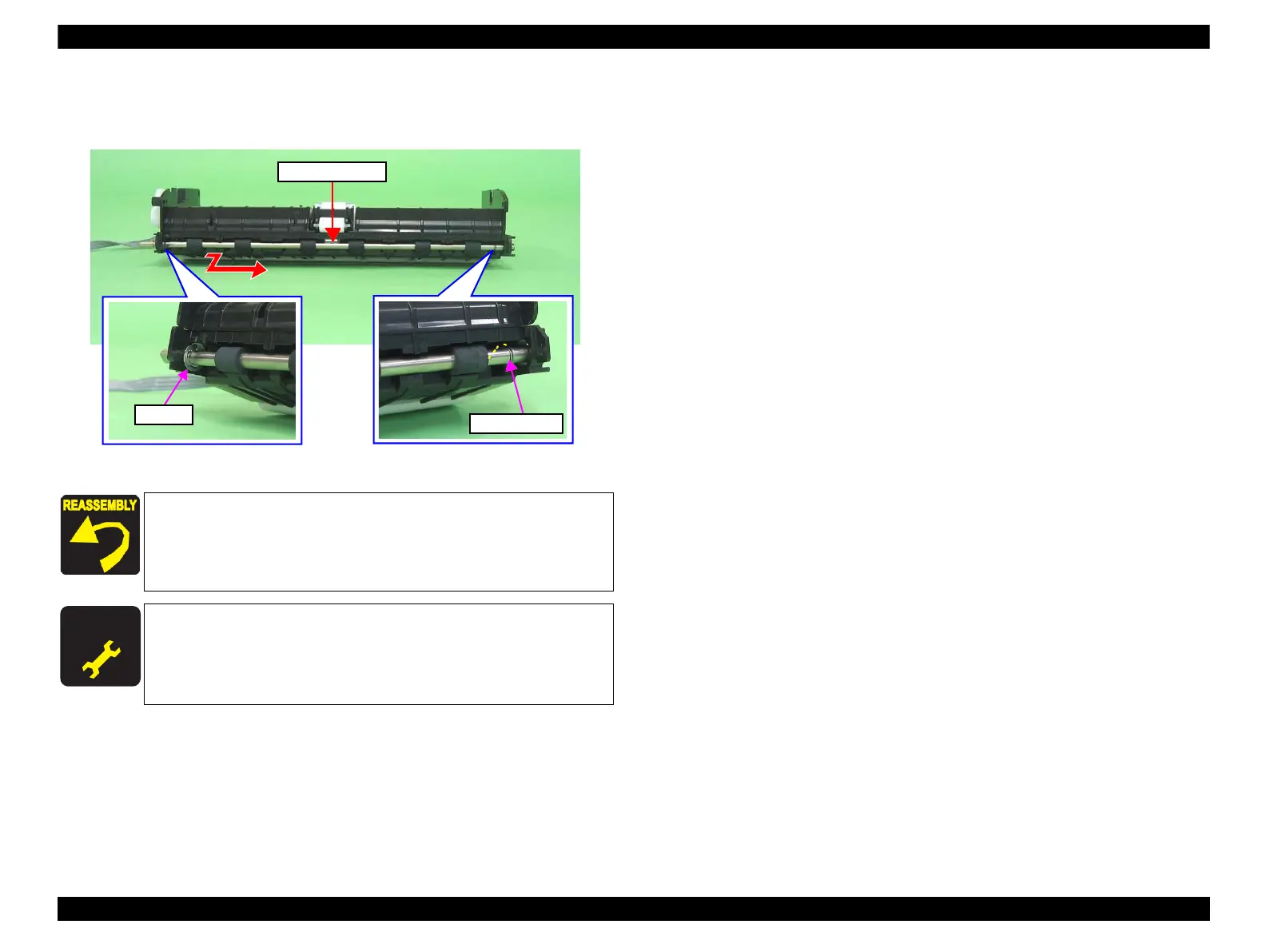

Figure 4-202. Removing the ADF PF Roller (3)
ADF PF Roller
Torsion spring
E-ring
When installing the ADF PF Roller, attach the leg of the torsion
spring on the ADF PF Roller as shown in Fig. 4-202.
�
� � � �
�
� � �
�
� � � �
�
� � �
After replacing or removing the ADF PF Roller, be sure to perform
the required lubrication. (See Chapter 6 "MAINTENANCE".)
