Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
108
Confidential

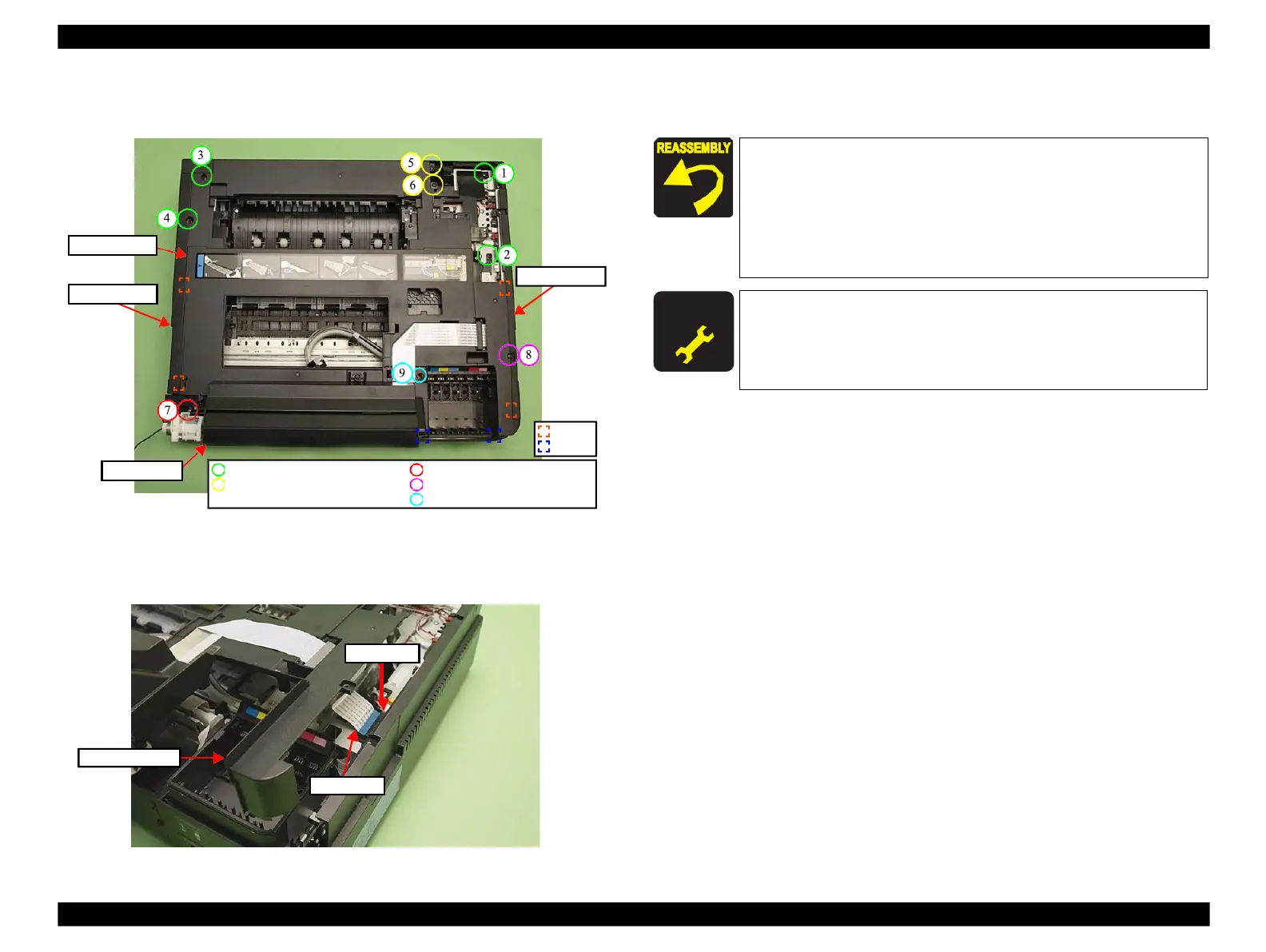

3. Remove the screws (x9) that secure the Upper Housing. (See Fig. 4-17.)
4. Release the ribs (x4) and hooks (x2) of the Upper Housing.
Figure 4-17. Removing the Upper Housing (2)
5. Lift the Upper Housing slightly and disconnect the Panel FFC from the Main
Board, and remove the Upper Housing together with the Panel Unit.
Figure 4-18. Removing the Upper Housing (3)
6. Remove the Panel Unit from the Upper Housing. (See 4.2.3.1 "Panel Unit"
(p115).)
Right Housing
C.B.A. 3x8 (black) (6±1Kgfcm)
C.B.P. 3x10 (6±1Kgfcm)
C.B.P. 3x10 (black) (6±1Kgfcm) C.B.S. 3x8 (black) (8±1Kgfcm)
C.B.S. 3x6 (8±1Kgfcm)
Rib
Hook
Panel Unit
Left Housing
Upper Housing
Upper Housing
Main Board
Panel FFC
Insert the ribs (x4) of the Upper Housing to the inside of the
Housing L/R when installing the Upper Housing. (See Fig.
4-17.)
Tighten the screws in the order shown in Fig. 4-17.
When installing the Front Harness Cover, insert the ribs (x3) of
the Front Harness Cover to the Upper Housing, and secure
them with the hooks (x2). (See Fig. 4-16.)
�
� � � �
�
� � �
�
� � � �
�
� � �
After removing/replacing the Upper Housing, make the specified
adjustments. (See Chapter 5 "ADJUSTMENT".)
