Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Disassembly Procedures
https://www.manualsbooks.com
3.
Remove the screws (x3) that secure the Decompression Pump Unit, and
remove the Decompression Pump Unit from the Base Frame.

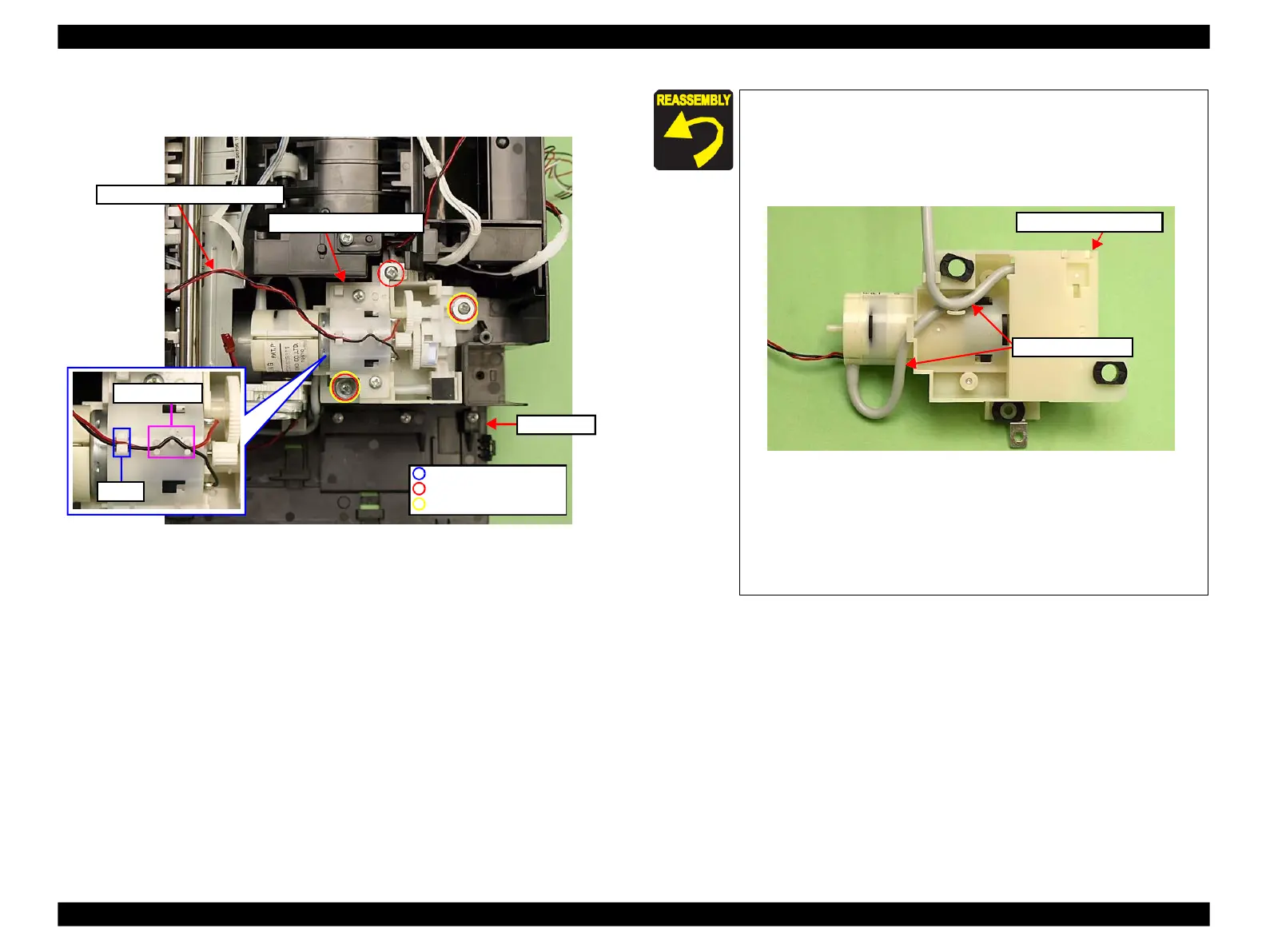

Figure 4-72. Removing the Decompression Pump Unit
When routing the Decompression Pump Motor cable, make
sure to secure it with the dowels (x6) and the hook on top of the
Decompression Pump Unit as shown in Fig. 4-72.
When routing the decompression tube, confirm no clipped part
or fold on the tube. (See Fig. 4-71, Fig. 4-73.)
Figure 4-73. Installing the Decompression Pump Unit
Put the decompression tube through the groove on the Base
Frame (section A, B), and route it behind the FFC. (See Fig.
4-71.)
Make sure to insert the decompression tube into the socket on
the Cartridge Box Unit to the full to its base. (See Fig. 4-71.)
C.B.P. 3x8 (6±1Kgfcm)
C.B.P. 3x14 (6±1Kgfcm)
P.W. 3.3x0.5x10
Decompression Pump Motor cable
To Next Page
