Epson Stylus Photo TX800FW

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
141
Confidential
Make sure to insert the dowel of the right arm into the groove
on the CDR Guide. (See Fig. 4-95.)
Place the left arm over the right arm before installation. (See
Fig. 4-95.)
If an arm comes off, place it to the CDR Tray at an angle as
shown in Fig. 4-96
, and insert the hole of the arm into the hook
on the tray, then rotate it in the direction of the arrow to engage
the arm to the tray.

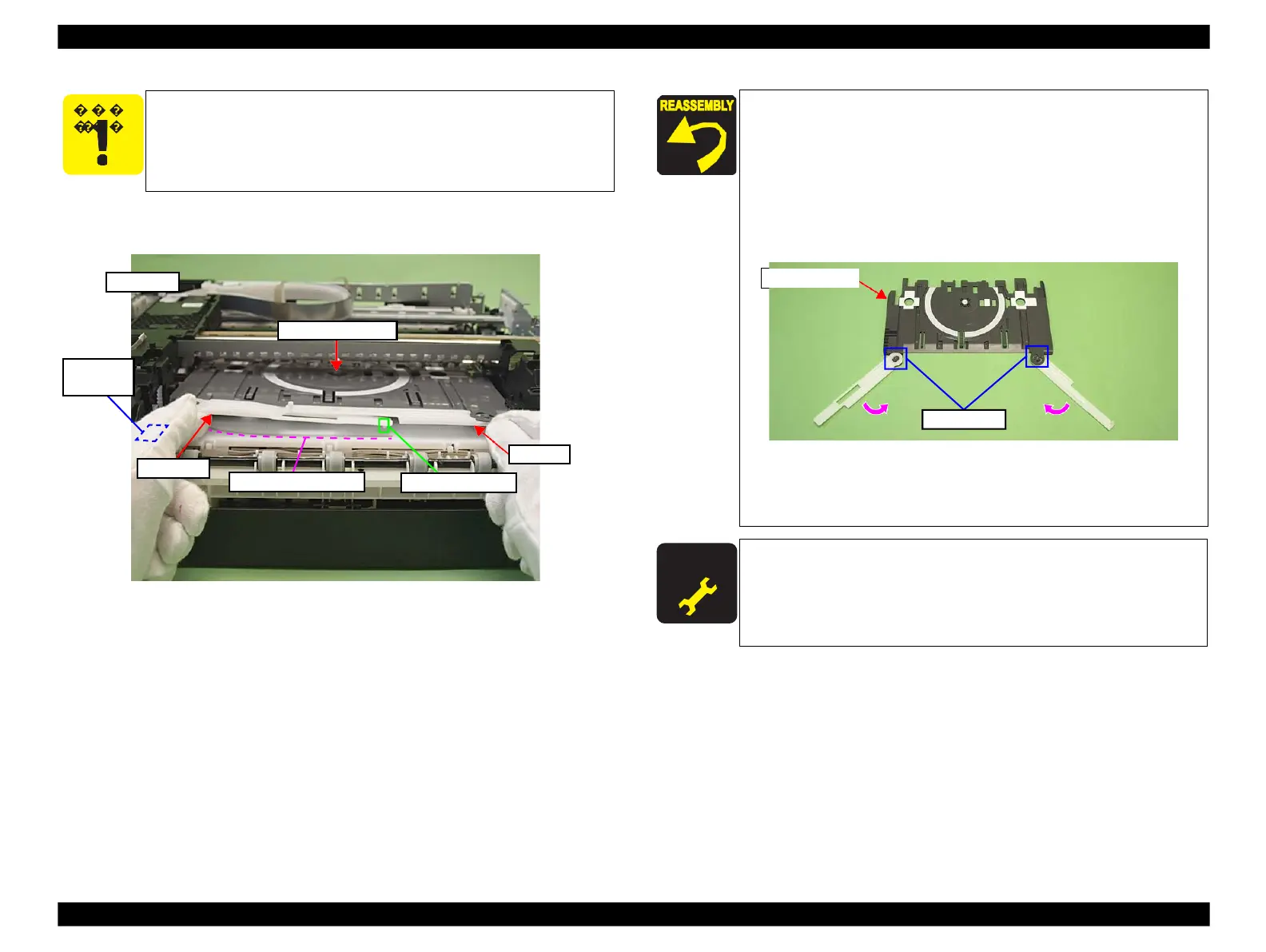

Figure 4-96. Reassembling the CDR Tray Assy
When installing the Spur Gear B, engage its teeth with the
grooves on the CDR Tray Assy. (See Fig. 4-94.)
Hole & hook
CDR Tray Assy
3. Lift the CDR Tray Assy on the side with arms, remove the CDR Tray Assy to
the rear side of the printer.
Figure 4-95. Remove the CDR Tray Assy (2)
Take care not to damage the CDR Tray Sensor when removing the
CDR Tray Assy. (See
Fig. 4-94, Fig. 4-95.)
�
� � � �
�
� � �
�
� � � �
�
� � �
After replacing the CDR Tray Assy, make the specified
adjustments. (See Chapter 5 "ADJUSTMENT".)
When replacing the CDR Tray Assy, make sure to carry out
the specified lubrication. (See Chapter 6 "MAINTENANCE"
.)
Dowel on right arm
Groove on CDR Guide
Right arm
Left arm
CDR Tray
Sensor
CDR Tray Assy
Rear side
