3. Loosen the screw (x1) that secures the Parallelism Bushing. (See Fig. 4-125.)
4. Lift the PG Lever R and disengage the dowel of the Main Frame from the
shaft hole of the Parallelism Bushing. (See Fig. 4-125.)
5. Rotate the Parallelism Bushing till the screw that secures the CR Motor Assy
can be seen.

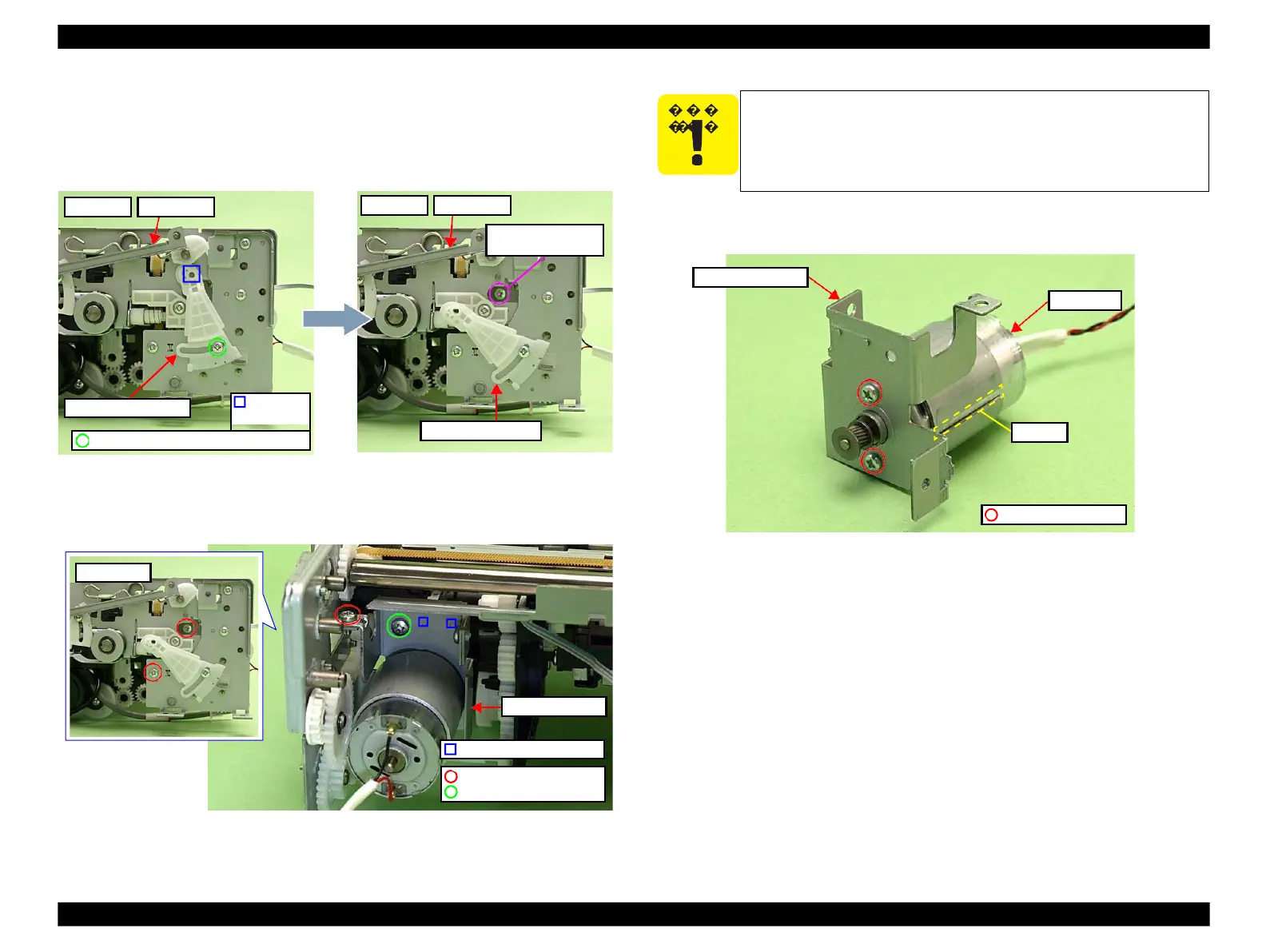

Figure 4-125. Removing the CR Motor (2)
6. Remove the screws (x4) that secure the CR Motor, and remove the CR Motor
Assy.
Figure 4-126. Removing the CR Motor (2)
7. Remove the screws (x2) that secure the CR Motor, and remove the CR Motor
from the CR Motor Holder.
Figure 4-127. Removing the CR Motor (3)
Parallelism Bushing
C.B.S. 3x6 (Secure it after PG Adjustment)
Dowel &
shaft hole
PG Lever R
Right side
PG Lever R
Right side
Parallelism Bushing
The screw that
secures the CR Motor
CR Motor Assy
C.B.S. 3x6 (8±1Kgfcm)
C.B.S. 3x4 (8±1Kgfcm)
Positioning hole & dowel
Right side
Be careful not to damage the Pinion Gear of the CR Motor with the
CR Motor Holder.
C.P. 3x4 (4±1Kgfcm)
Groove
CR Motor
CR Motor Holder
