Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Disassembly Procedures
https://www.manualsbooks.com

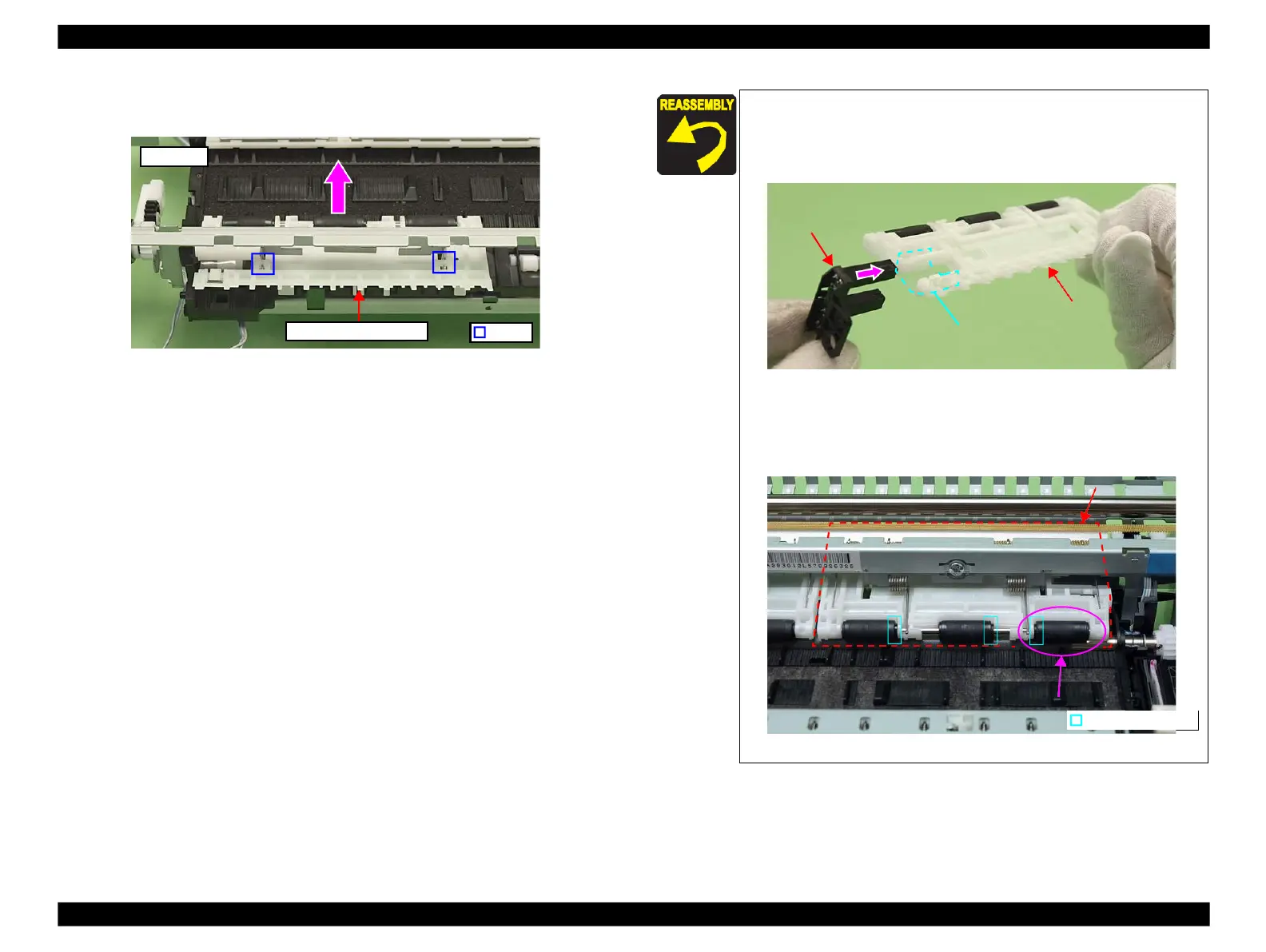

Align the positioning hole of the PE Sensor with the dowel of
the Paper Guide Front Assy. (See Fig. 4-149.)
When installing the PE Sensor, insert the sensor with the Upper
Paper Guide sheet in between. (See Fig. 4-149, Fig. 4-151.)
Figure 4-151. Installing the PE Sensor
The roller of the Upper Paper Guide R in the figure below only
is installed in the opposite direction; therefore, make sure to
install it properly when the roller comes off.
Figure 4-152. Installing the roller
Roller to be installed reversely
4.
Release the hooks (x2) of the Main Frame and remove the Upper Paper Guide
R in the direction of the arrow.
Figure 4-150. Removing the Upper Paper Guide R
To Next Page
