4. Follow the flowchart below to locate the cause of trouble.

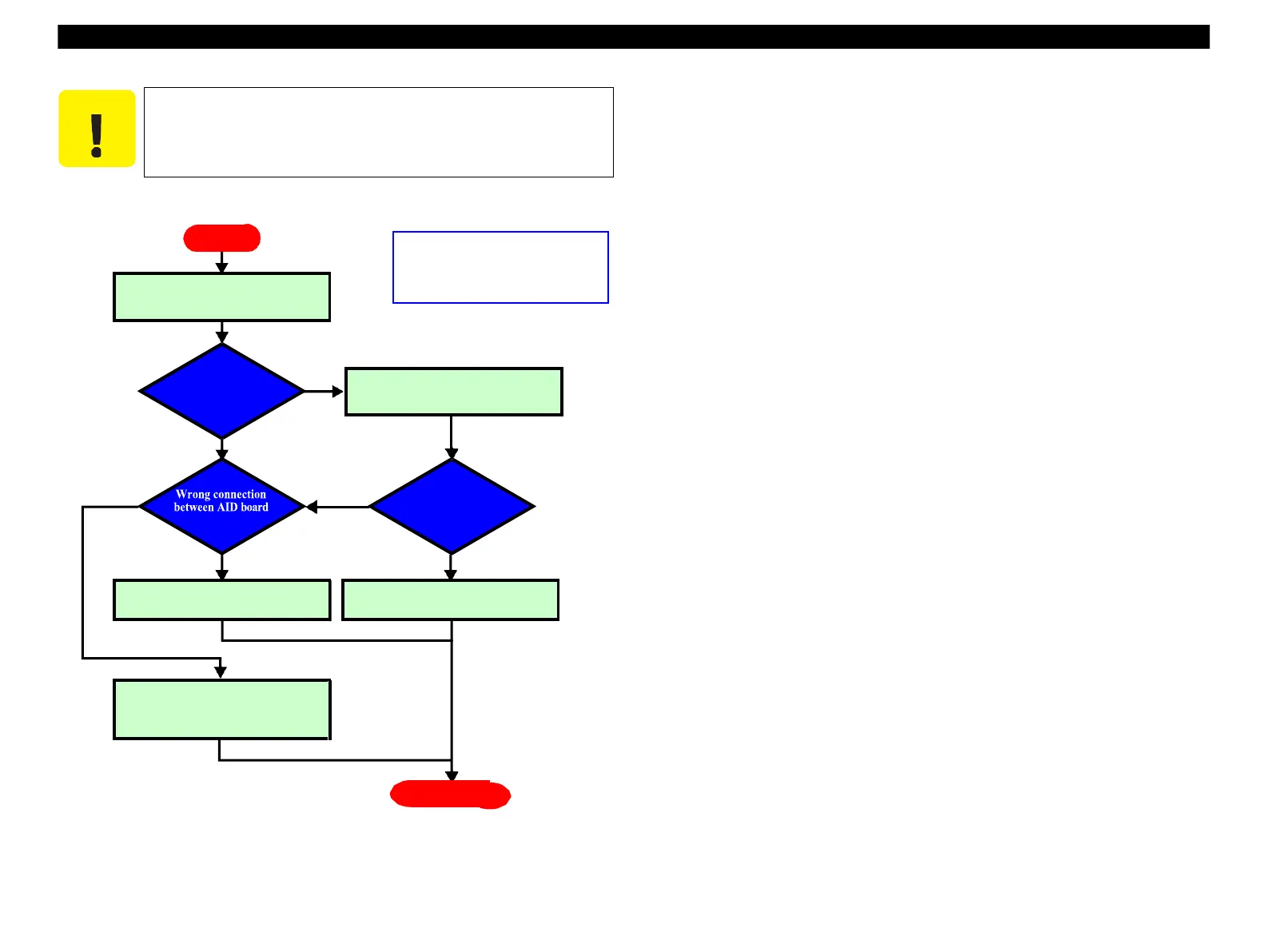

Figure 5-55. Flowchart for locating the cause of trouble
5. After replacing appropriate parts in step 4, turn on the printer, select “ AID SHK
Error Reset” from the menu of the adjustment program again, and press the
“ Check” button to confirm that the value of the counter is not increased.
If the value is increased or the same fatal error occurs repeatedly, return to step 1
and continue to locate the cause of trouble.
� � � �
� � �
Yes
Nozzles clogged?
No
Yes
and ink system?
Yes
Nozzle clogging
corrected?
No
No
Correct the connection of AID
board and ink system. If the cable
is damaged, replace ink system.
Replace the printhead.
Replace AID board
(Card Slot Assy).
Run a manual cleaning from
control panel to see if nozzle
clogging is corrected.
If the same fatal error occurs when
operating according to the
flowchart, perform AID SHK
Error Reset each time.
In the next step; when executing a manual cleaning, make sure to
run it from the control panel on the printer, not by the cleaning of
the adjustment program.
START
Print nozzle check pattern from
adjustment program to check if
nozzle clogging occurs.
To Step 5
