405.1200.037.2 - Rel.: 2.21 of 25/02/2008
34-39

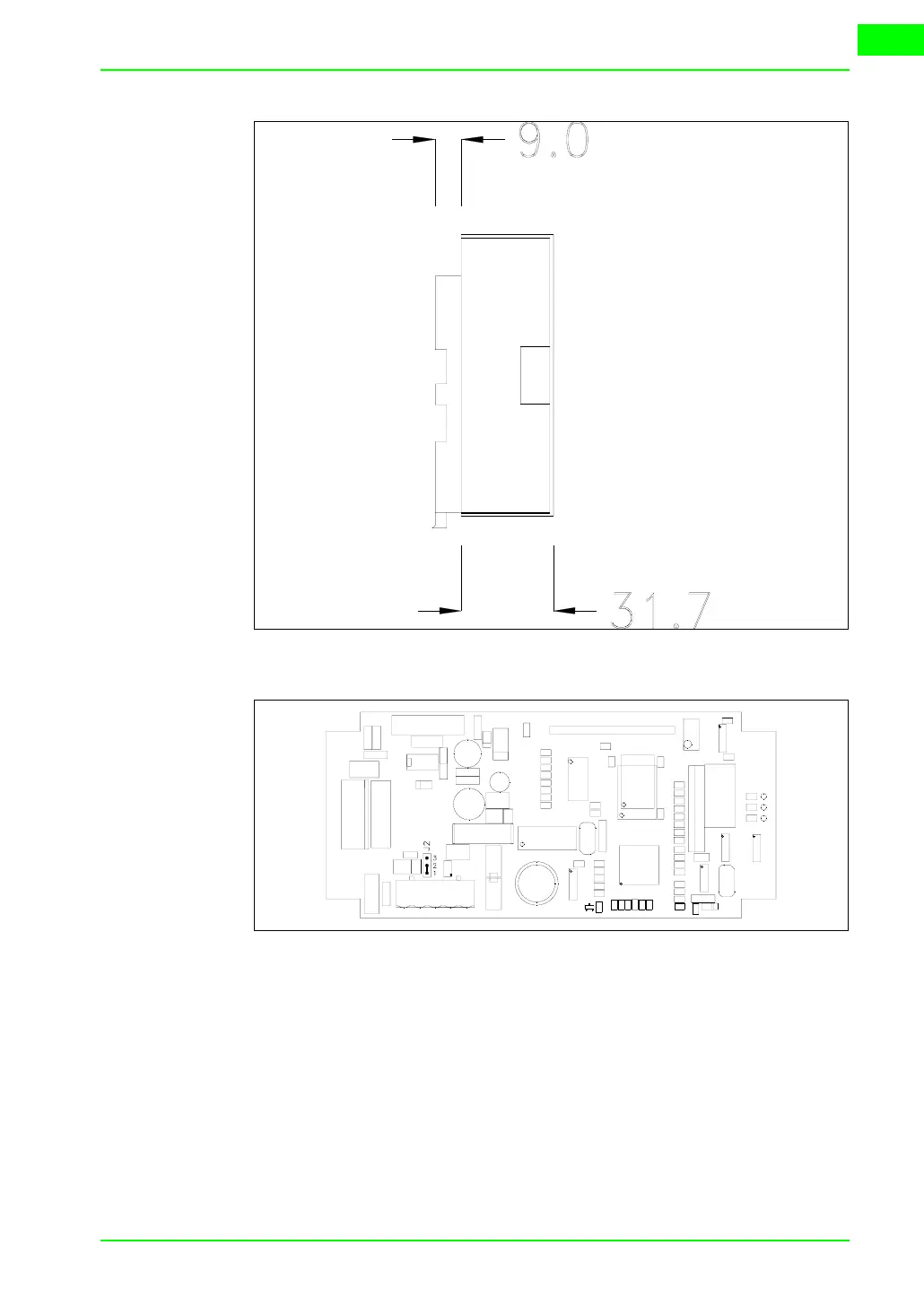

Termination of CAN line:
The device in question integrates the termination resistances of the serial
line (typically 120 ohms) which can be inserted by means of a jumper (pre-
set on 1-2, line not terminated). To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
