Foundry Switch and Router Installation and Configuration Guide
3 - 44 December 2000

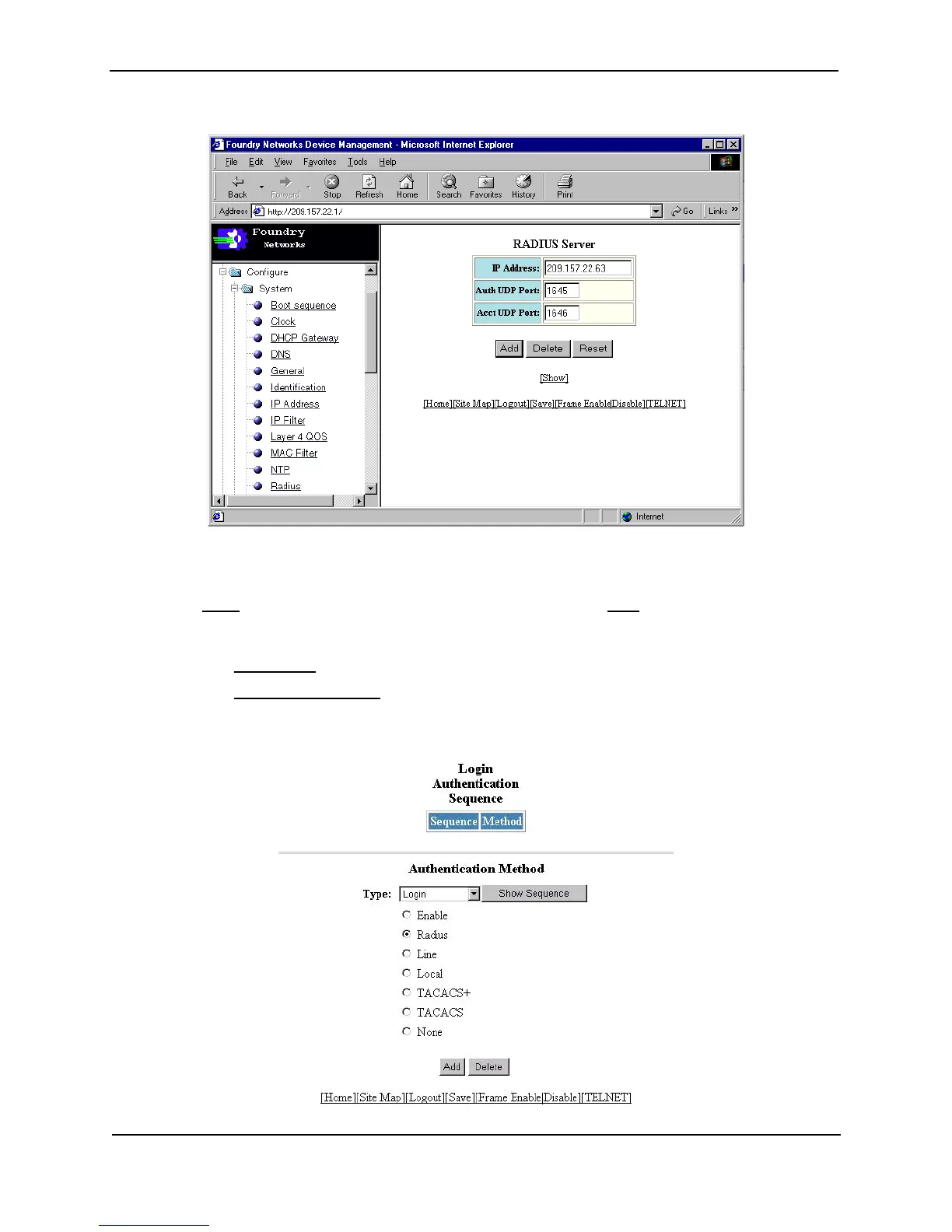

12. Enter the server’s IP address in the IP Address field.
13. If needed, change the Authentication port and Accounting port. (The default values work in most networks.)
14. Click Home to return to the System configuration panel, then select the Save link at the bottom of the dialog.
Select Yes when prompted to save the configuration change to the startup-config file on the device’s flash
memory.
15. Select the Management
link to display the Management panel.
16. Select the Authentication Methods
link to display the Login Authentication Sequence panel, as shown in the
following example.
