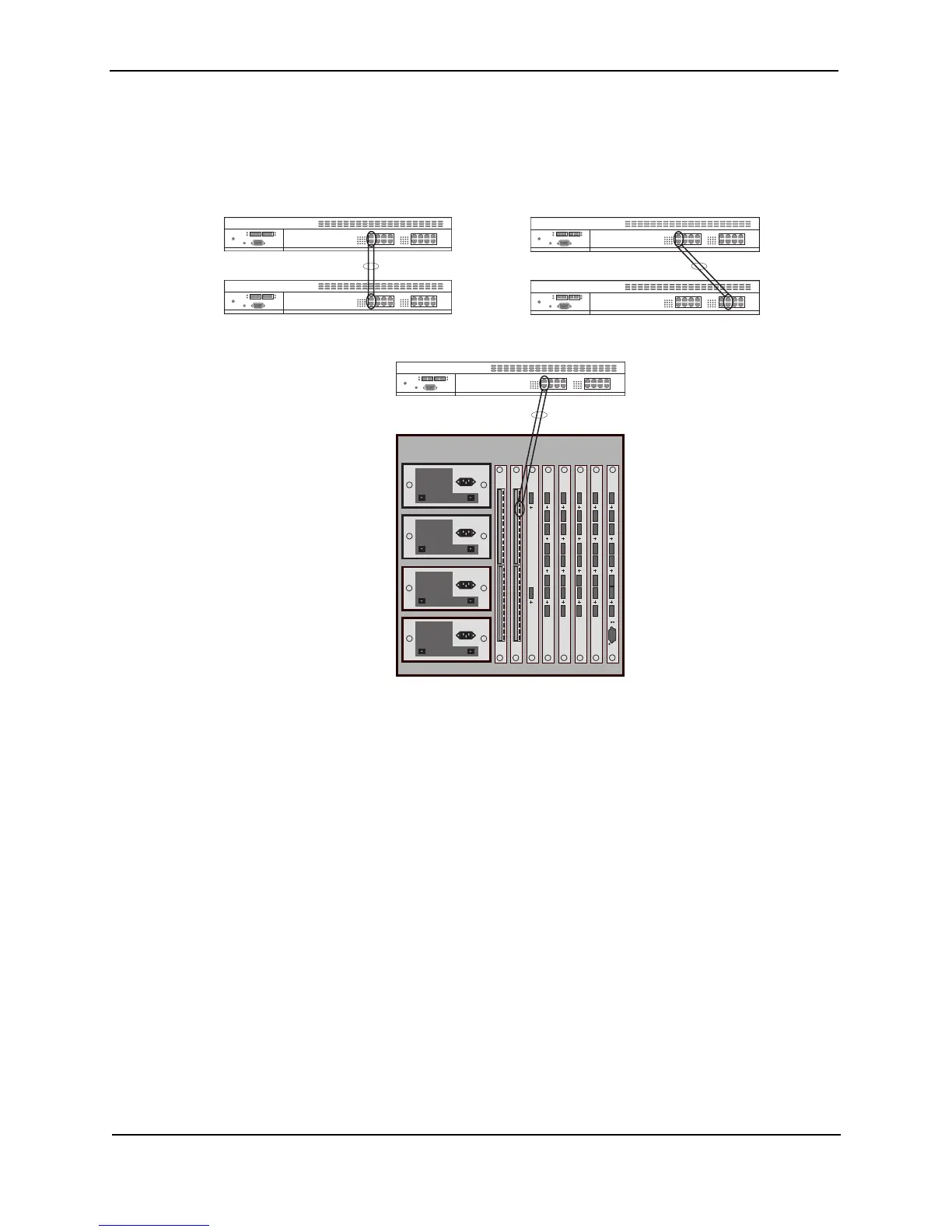

Figure 10.4 shows some examples of valid 2-port trunk group links between devices. The trunk groups in this
example are switch trunk groups, between two Foundry devices. Ports in a valid 2-port trunk group on one device
are connected to two ports in a valid 2-port trunk group on another device. The same rules apply to 4-port trunk
groups.
Figure 10.4 Examples of 2-port trunk groups
Power
Link
Activity
Link
Activity
Console
Power
Link
Activity
Link
Activity
Console
Power
Link
Activity
Link
Activity
Console
Power
Link
Activity
Link
Activity
Console
Power
Link
Activity
Link
Activity
Console
