Modes of Operation

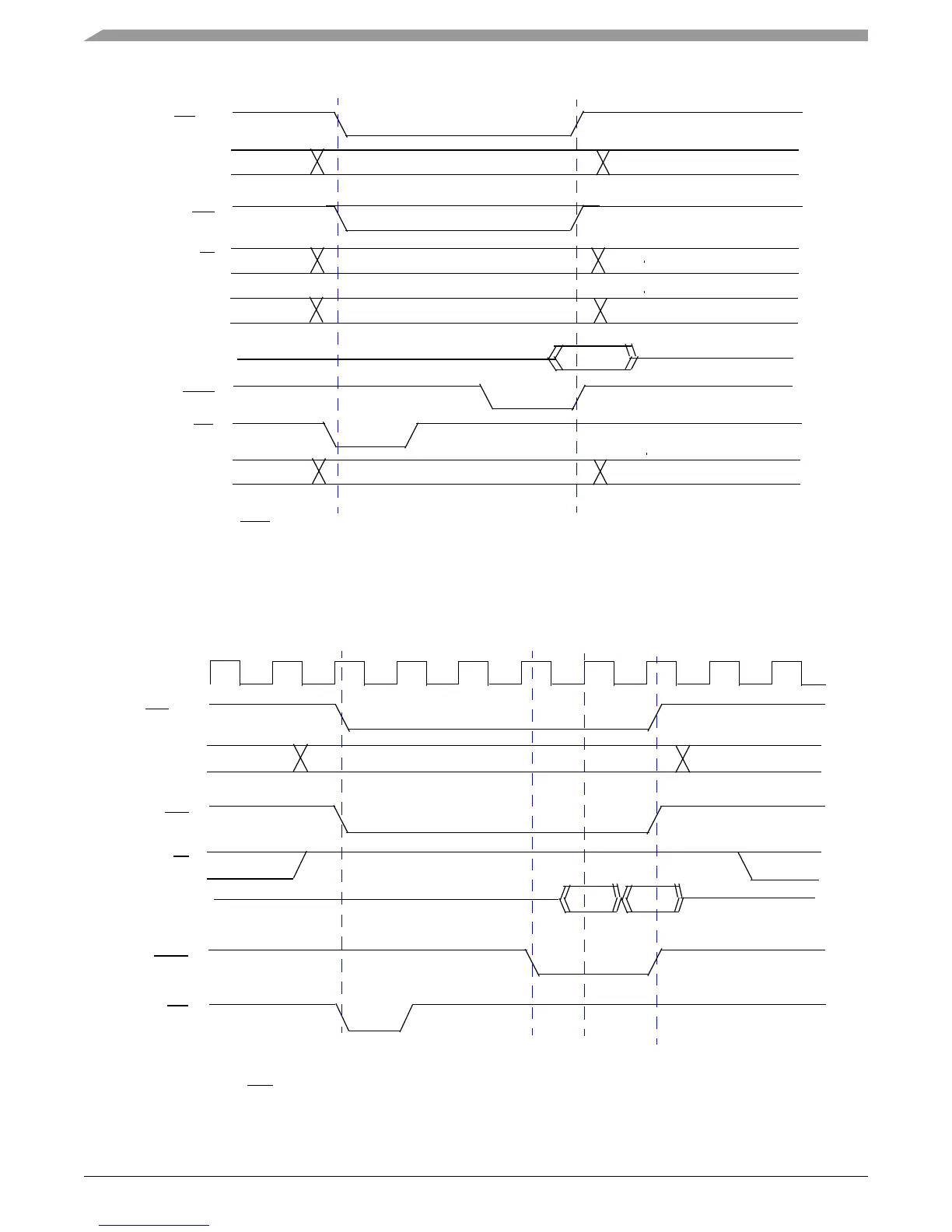

Figure 9-4. Timing Diagram—Non-MUXed Mode
Figure 9-5. Timing Diagram—Burst Mode
ADDR
DATA (rd)
CS[x]
R/W
DATA (wr)
OE
TS
TSIZ[1:2]
ACK
Valid Address
Valid write Data
Valid read Data
NOTE:
1. ACK can shorten the CS pulse width.
2. TS is only available in Large Flash and MOST Graphics mode.
ADDR
DATA (rd)
CS[x]
R/W
OE
TS
ACK
PCI CLK
Valid read Data
Valid Address
NOTE:
1. Burst Mode is only available for Large Flash and MOST Graphics mode.
2. ACK
is output and indicates the burst.
