Freescale Semiconductor MPC5200B - USB Port Map-10 Pins

Pinout Tables
MPC5200B Users Guide, Rev. 1
Freescale Semiconductor 2-43

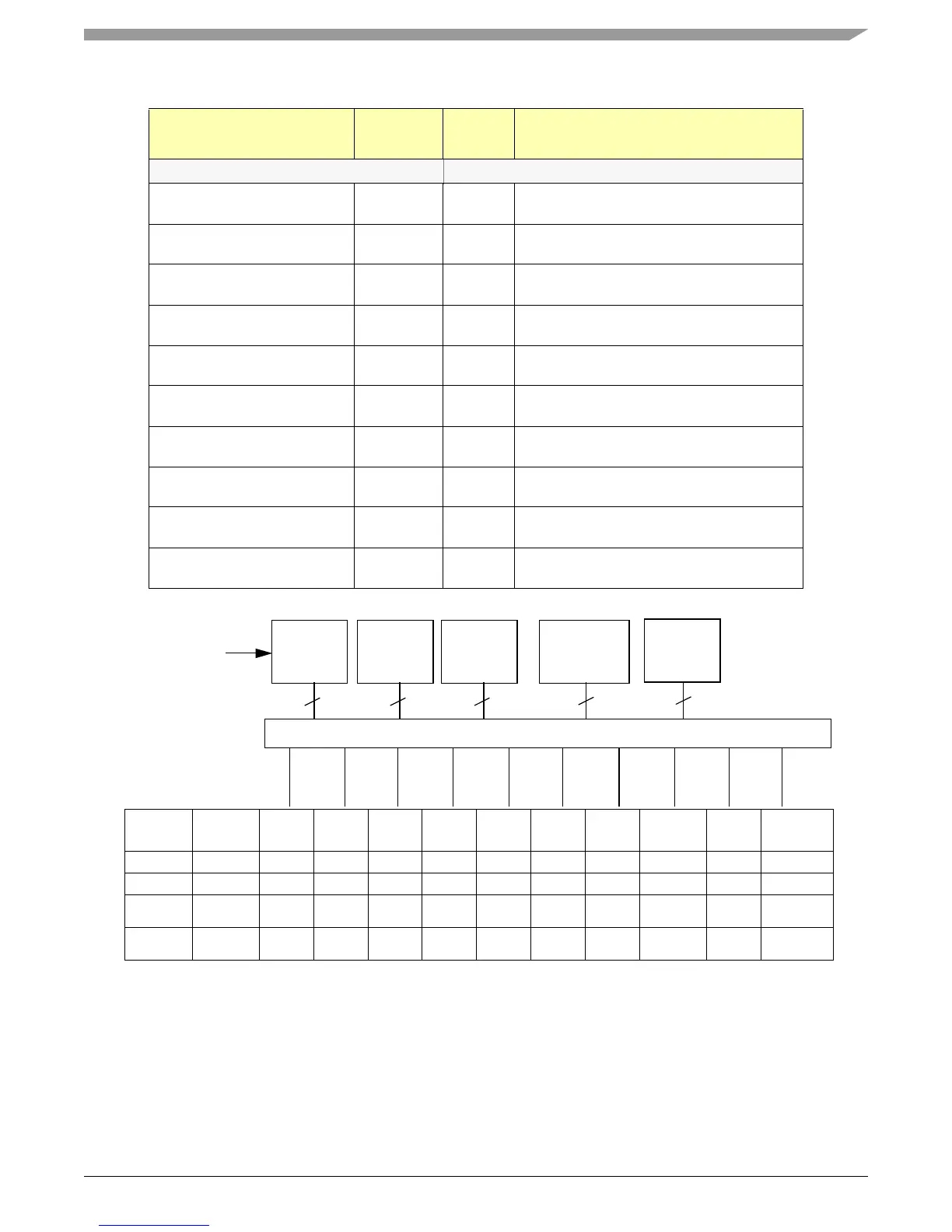

Figure 2-7. USB Port Map—10 Pins
Pin PSC3_9 Ball C04
GPIO hi - z GPIO_W/WAKE_UP
Simple General Purpose I/O with WAKE UP
USB2 hi - z USB2_OVRCRNT
USB Over Current
UART3 hi - z GPIO_W/WAKE_UP
Simple General Purpose I/O with WAKE UP
UART3e hi - z GPIO_W/WAKE_UP
Simple General Purpose I/O with WAKE UP
CODEC3 hi - z GPIO_W/WAKE_UP
Simple General Purpose I/O with WAKE UP
CODEC3_w/MCLK hi - z GPIO_W/WAKE_UP
Simple General Purpose I/O with WAKE UP
SPI hi - z SPI_CLK
SPI Clock
UART3, SPI hi - z SPI_CLK
SPI Clock
UART3e, SPI hi - z SPI_CLK
SPI Clock
CODEC3, SPI hi - z SPI_CLK
SPI Clock
Table 2-15. PSC3 Functions by Pin (continued)
PIN / BALL NUMBER Function
Reset
Value
Description
USB Clock
from PSC6 Port
GPIO
USB Host
RST_CFG
Pin Drivers and MUX Logic
2
5
USB_5 USB_6 USB_7 USB_8 USB_9
10
USB_0 USB_1 USB_2 USB_3 USB_4
PSC4
4
PSC5
4
Function
Port_conf
[18:19]
USB_0 USB_1 USB_2 USB_3 USB_4 USB_5 USB_6 USB_7 USB_8 USB_9
RST_CFG --- RST_CFG6 RST_CFG7
GPIO 00 GPIO GPIO GPIO GPIO INTERRUPT
USB 01 USB1_OE USB1_TXN USB1_TXP USB1_RXD USB1_RXP USB1_RXN USB1_POR
TPWR
USB1_SPEED USB1_SUS
PEND
USB1_OVERCNT
2x UART4/5 10 GPIO UART4_RT
S
UART4_TX
D
UART4_RXD UART4_CTS UART5_RXD UART5_TXD UART5_RTS UART5_CTS INTERRUPT
NOTE:
1. If not used for USB, this port is available as a GPIO resource.
2. USB clock source can be generated internally or sourced fromUSB_CLK input.
3. Pins 3–5 are not mapped to any function other than USB.
4. RST_config bits are sampled only during Reset.
5. PSC4/5 can be used here or on the Ethernet port, but not in both places.
