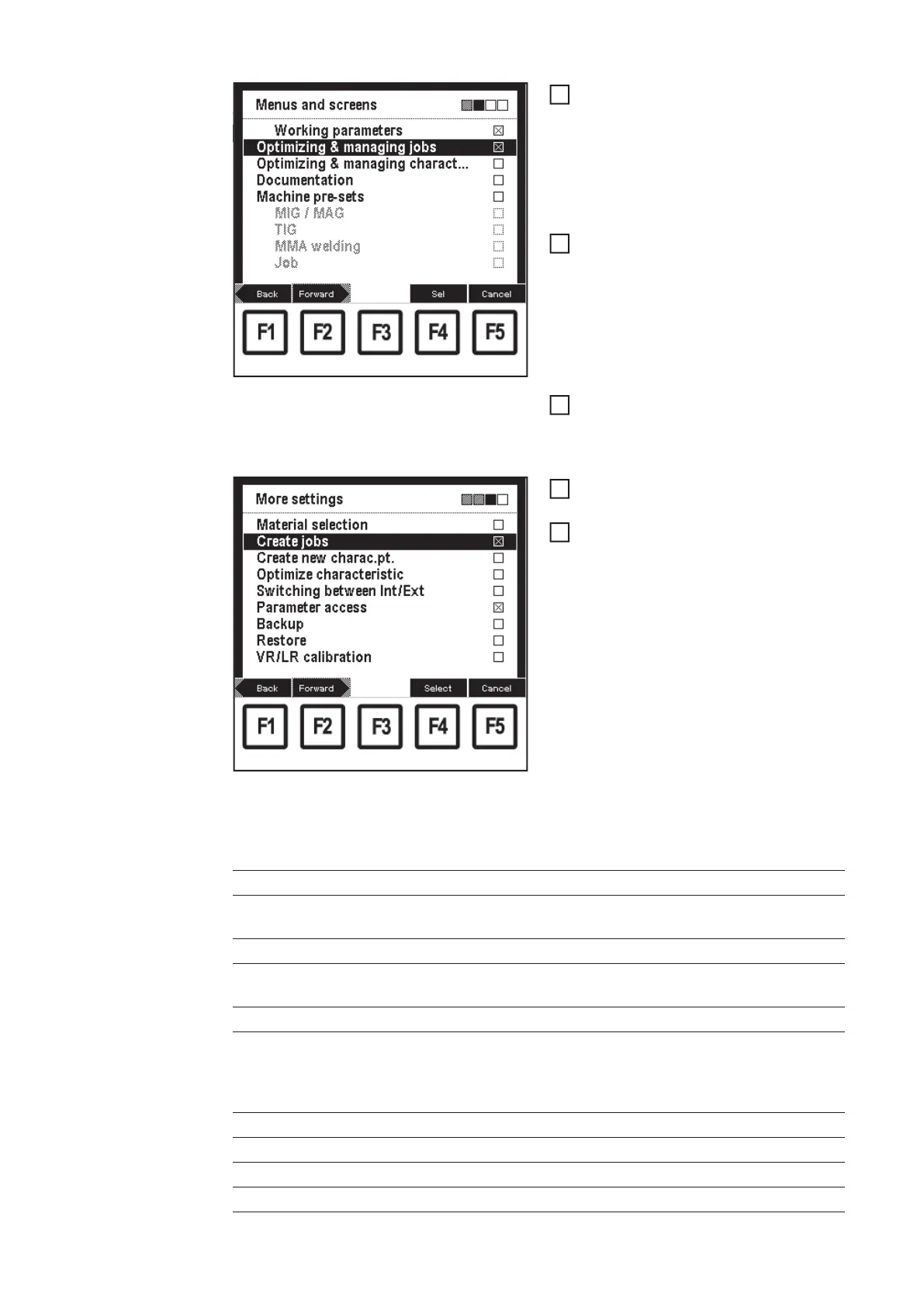

"Menus and screens" screen
Select menu items and screens that
are to be changed using adjusting dial
(18)
Press F4 "Select" to activate a menu
item or screen
– An activated menu item or screen
is denoted by an X in the check
box.
– In the case of menu items that
have not been activated, their
screens are greyed out.
Press F2 "Forward"
– The 3rd screen in the wizard ap-
pears ("More settings")
"More settings" screen
Select function key functions that are
to be changed using adjusting dial (18)
To activate the functions, press F4
"Select"
– An activated function key function
is denoted by an X in the check
box.
IMPORTANT! The higher-level menu item
must also be activated in order to activate
screens.
8
9
10
11
12
IMPORTANT! To activate function key functions, at least one higher-level menu item must
be activated:
Function key function Higher-level menu items
Material selection MIG/MAG synergic welding, MIG/MAG manual
welding, optimizing and managing jobs
Create jobs MIG/MAG synergic welding, CC/CV mode
Creating a new characteristic
point
MIG/MAG synergic welding, MIG/MAG manual
welding
Optimize characteristic MIG/MAG synergic welding
Switching between Int/Ext MIG/MAG synergic welding, MIG/MAG manual
welding, rod electrode (MMA) welding, TIG weld-
ing, CC/CV mode, job welding, optimizing and
managing jobs
Parameter access -
Backup Default machine settings
Restore Default machine settings
VR/LR calibration Default machine settings
