9.3.5.2 Summary

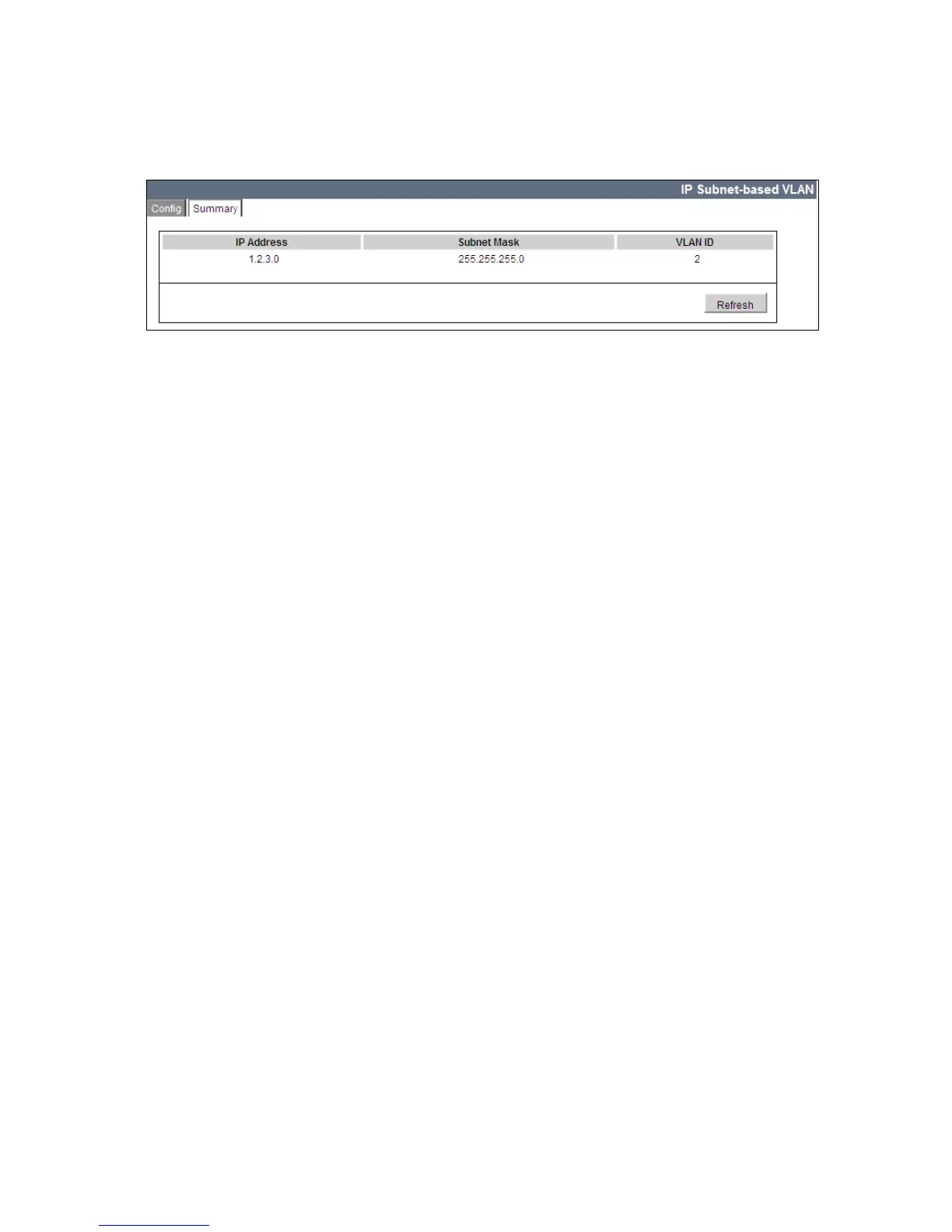

Figure : IP Subnet-based VLAN Summary
Non-Configurable Data
IP Address - The IP Address of the subnet that is being bound to a VLAN ID.
Subnet Mask - Subnet mask of the IP Address bound to VLAN ID.
VLAN ID - VLAN ID to which above mentioned IP Subnet is being bound to. VLAN ID can be any
number in the range of (1 to 4093).
Command Buttons
Refresh - Update the screen with the latest information.
