9.3.8 VTP
9.3.8.1 Config

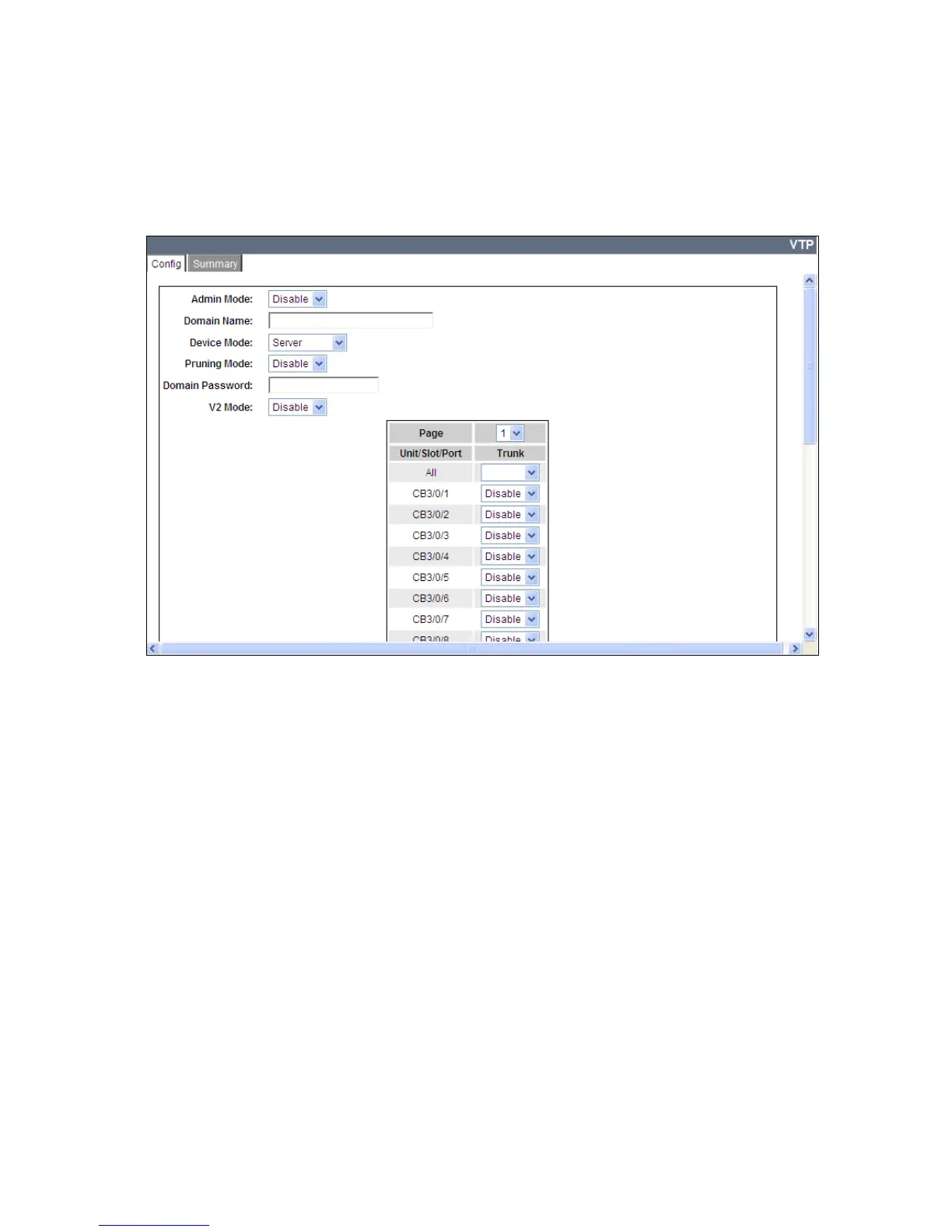

Figure : VTP Config
Selection Criteria
Admin Mode - Enable or disable the VTP feature.
Device Mode - Use the pull down menu to select the VTP device mode(client, server and
transparent). The default operational mode of VTP device is "server".
Pruning Mode - Enable or disable the VTP pruning mode.
Trunkport - Enable or disable the VTP trunkport.
V2 Mode - Enable or disable the VTP version 2 mode.
Configurable Data
Domain Name - Set the name of the VTP administrative domain.
Domain Password - Set the password for the VTP administrative domain.
Command Buttons
Apply - Applies the new configuration and causes the changes to take effect. These changes will not
be retained across a power cycle unless a save configuration is performed.
