9.3.13 MLD Snooping
9.3.13.1 Config and Status
Use this menu to configure the parameters for MLD Snooping, which is used to build forwarding lists for
multicast traffic. Note that only a user with Read/Write access privileges may change the data on this
screen.

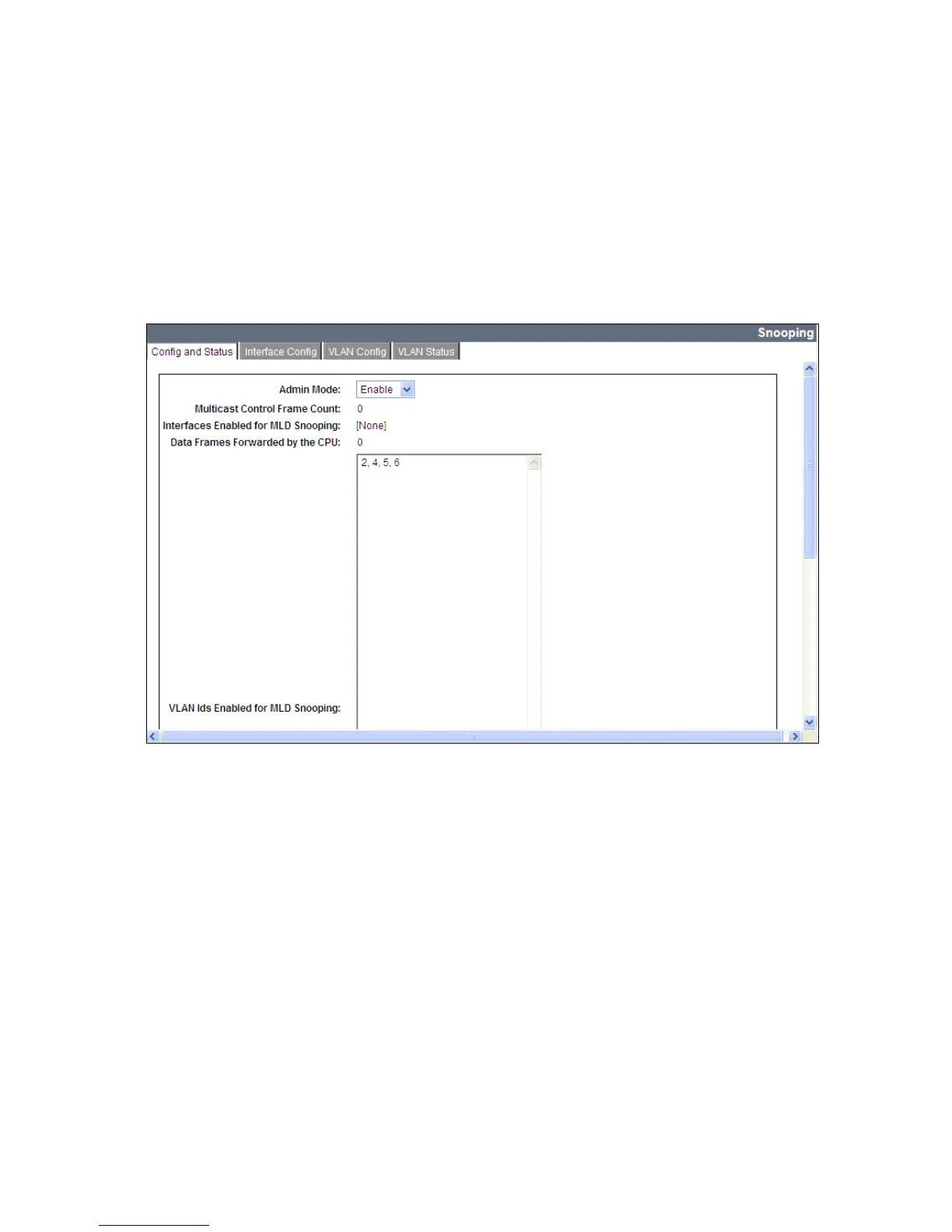

Figure : MLD Snooping Config and Status
Selection Criteria
Admin Mode - Select the administrative mode for MLD Snooping for the switch from the pull down
menu. The default is disable.
Non-Configurable Data
Multicast Control Frame Count - The number of multicast control frames that are processed by the
CPU.
Interfaces Enabled for MLD Snooping - A list of all the interfaces currently enabled for MLD
Snooping.
Data Frames Forwarded by the CPU - The number of data frames forwarded by the CPU.
VLAN Ids Enabled For MLD Snooping - Displays VLAN Ids enabled for MLD snooping.
Command Buttons
