9.3.12.3 VLAN Config

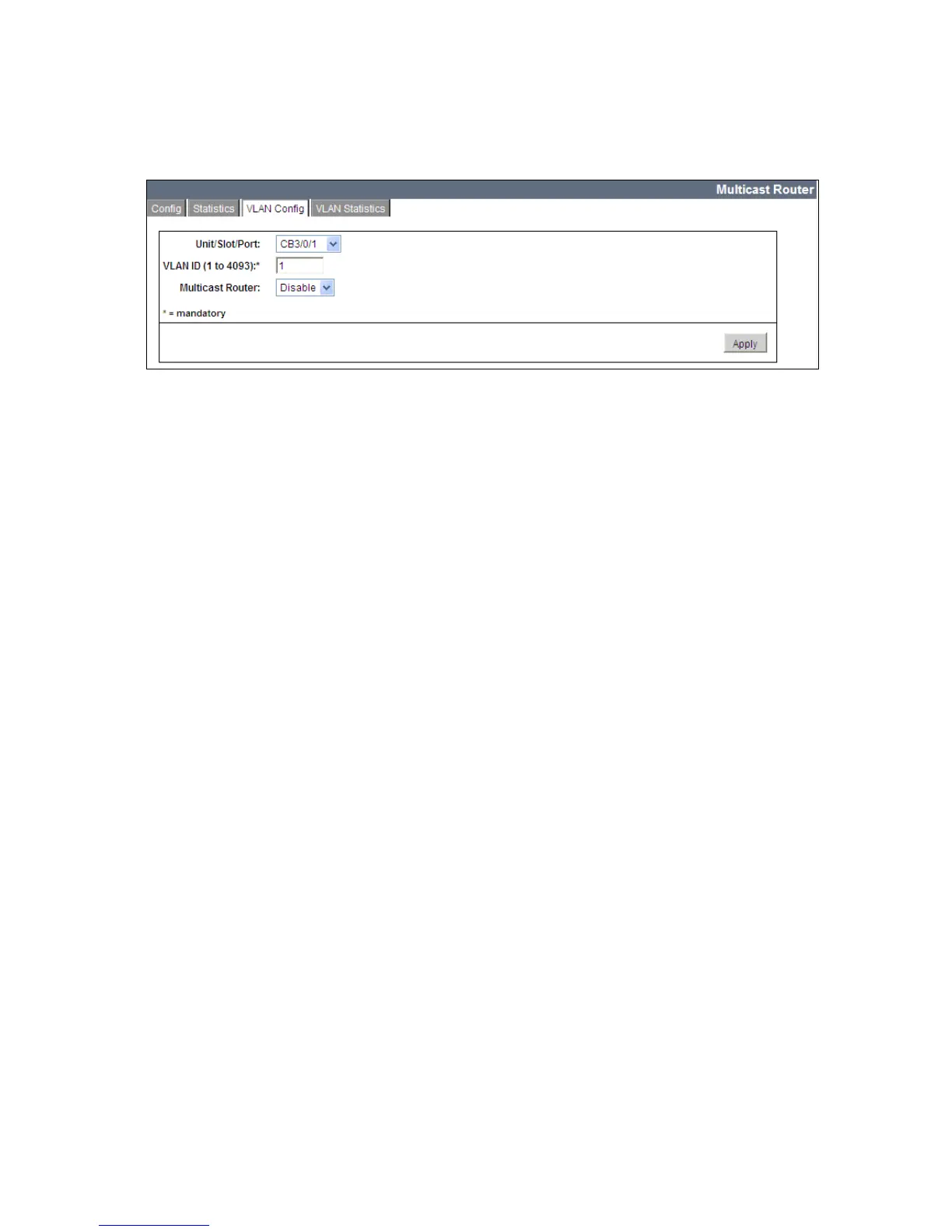

Figure : IGMP Multicast Router VLAN Config
Selection Criteria
Unit/Slot/Port - The select box lists all Unit/Slot/Ports.Select the interface for which you want
Multicast Router to be enabled.
Multicast Router - For the VLAN ID, multicast router may be enabled or disabled using this.
Configurable Data
VLAN ID - VLAN ID for which the Multicast Router Mode is to be Enabled or Disabled.
Command Buttons
Apply - Update the switch with the values you entered.
