Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
Preliminary steps
No steps needed.
Installing a 2.5-inch HDD/SSD in a 2.5-inch installation frame

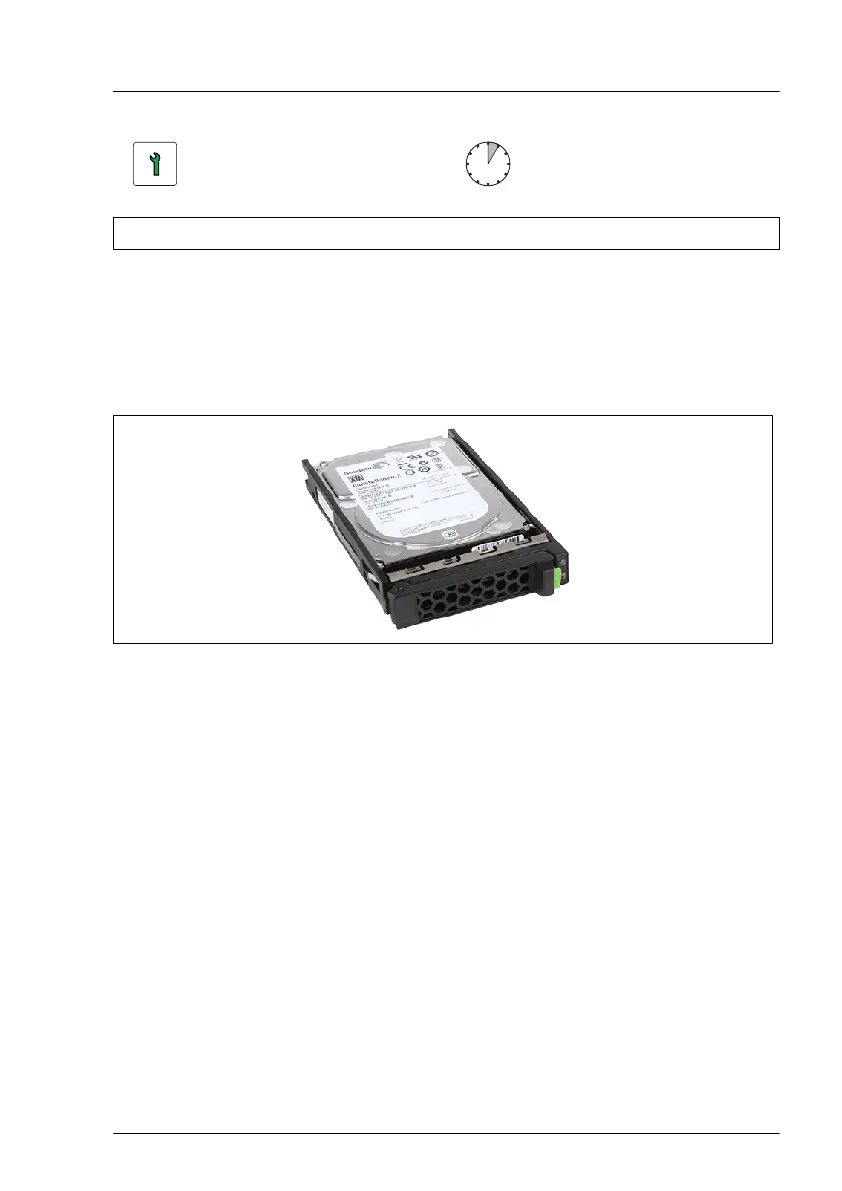

Figure 54: Installing the 2.5-inch HDD/SSD in the 2.5-inch installation frame (A)
▶
Lay the 2.5-inch HDD/SSD into the 2.5-inch installation frame as shown.
Hard disk drive (HDD) / solid state disk (SSD)
