Release all HDD modules and pull them out a few centimeters, see
"Removing a 3.5-inch HDD module" on page 130.
CAUTION
The HDD modules need not to be removed.
▶
If you want to remove them nevertheless, check if all HDD
modules are uniquely identified so that you can reinsert them
into their original bays.
▶
Release all dummy modules and pull them out a few centimeters, see
"Removing a 3.5-inch HDD dummy module" on page
128.
Removing the defective 4x 3.5-inch HDD backplane

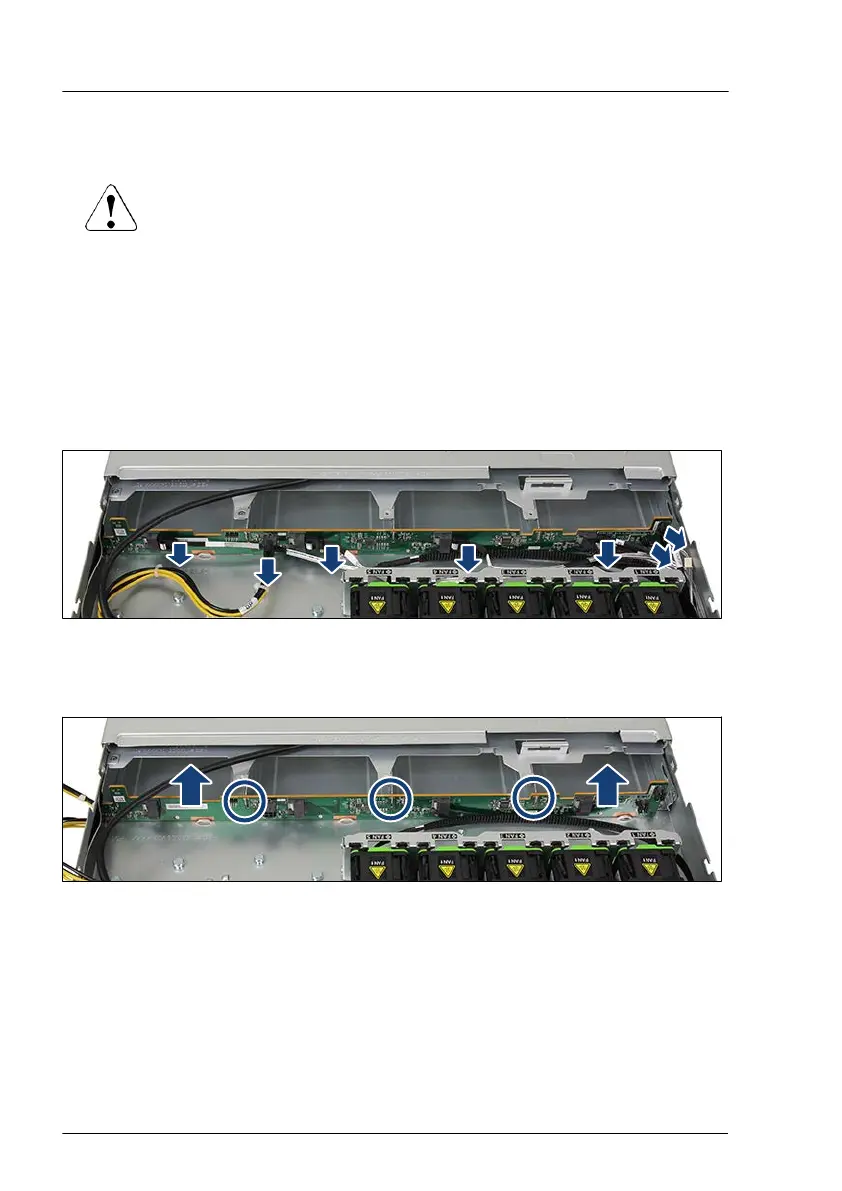

Figure 63: Disconnecting the cables
▶
Disconnect all cables from the HDD backplane.
Figure 64: Removing the 4x 3.5-inch HDD backplane
▶
Pull the HDD backplane upward until the three hooks (see circles)
disengage.
▶
Take out the HDD backplane.
Hard disk drive (HDD) / solid state disk (SSD)
134 Upgrade and Maintenance Manual RX1330 M5
