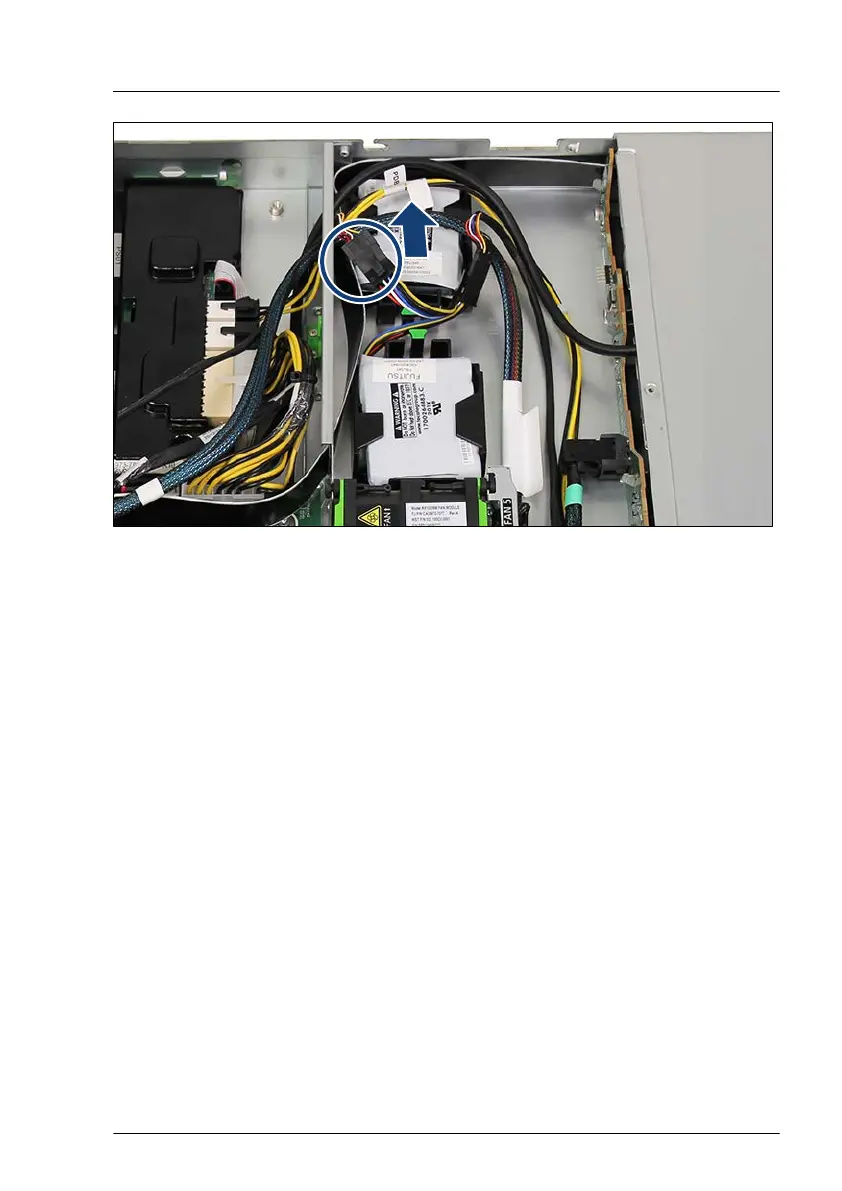

Figure 162: Installing the second FBU
▶
Lift up all cables.
▶
Insert the holder into the chassis.
▶
Slide the holder in direction of the arrow
.
▶
Connect the FBU adapter cable to the FBU cable (see circle).
Expansion cards and backup units
RX1330 M5 Upgrade and Maintenance Manual 215
