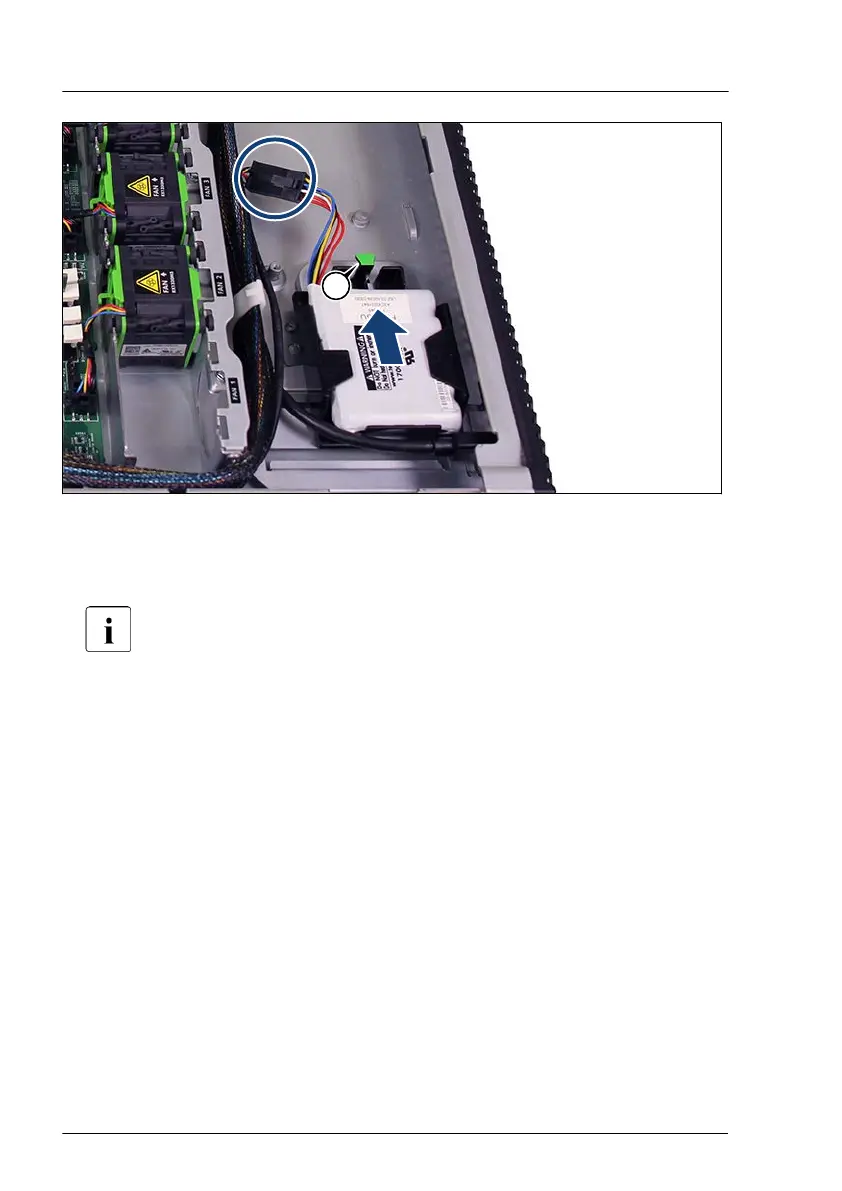

Figure 165: Removing the FBU with the holder (RX1330 M5S)
▶
Slide the holder in direction of the arrow as far as it will go while lifting up the
green locking handle on the holder (A).
After that, the bolts will rest in the wide ends of the keyhole slots on
the holder.
▶
Disconnect the FBU adapter cable from the FBU cable (see circle).
▶
T
ake out the FBU with the holder
.
Expansion cards and backup units
218 Upgrade and Maintenance Manual RX1330 M5
