Removing a memory module

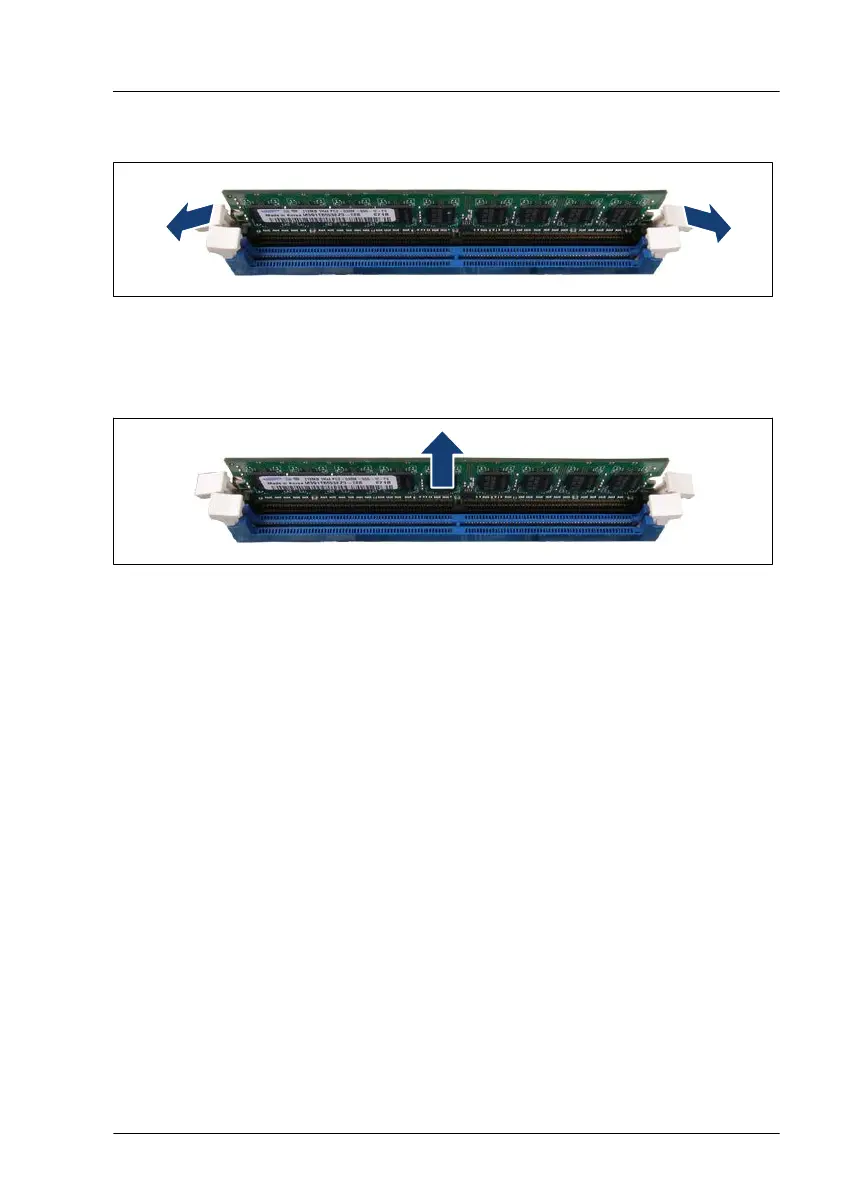

Figure 171: Removing memory modules (A)
â–¶
Eject the desired memory module by pressing out the securing clips at each
end of the memory slot.
Figure 172: Removing memory modules (B)
â–¶
Remove the ejected memory module.
Concluding steps
â–¶
"Installing the air duct" on page
66.
â–¶
"Reassembling" on page
53.
â–¶
"Connecting the power cord" on page 57.
â–¶
"Switching on the server" on page 60.
â–¶
If applicable, "Installing the front cover with lock" on page 61.
â–¶
"Resuming BitLocker functionality" on page 86.
Main memory
RX1330 M5 Upgrade and Maintenance Manual 227
