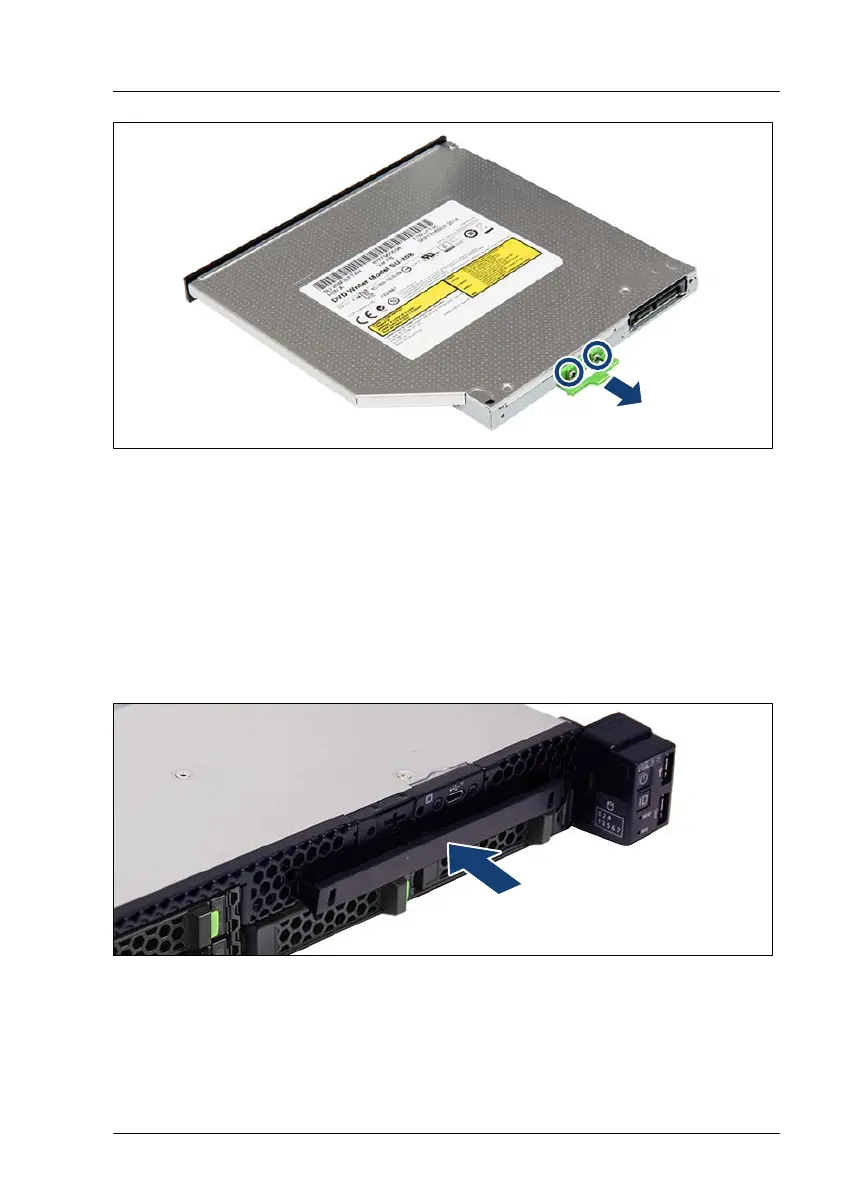

Figure 195: Removing the ODD latch from the ODD (with ODD lock)
▶
Remove the two screws (see circles).
▶
Remove the ODD latch.
▶
If no new ODD will be installed:
▶
Fasten the ODD latch with two screws to the chassis (see Figure 187).
Installing the dummy cover
Figure 196: Installing the dummy cover
▶
Insert the dummy cover in a slight angle and push it inward until it engages
at the other side.
Accessible drives
RX1330 M5 Upgrade and Maintenance Manual 253
