Install the serial interface in the riser module 2.

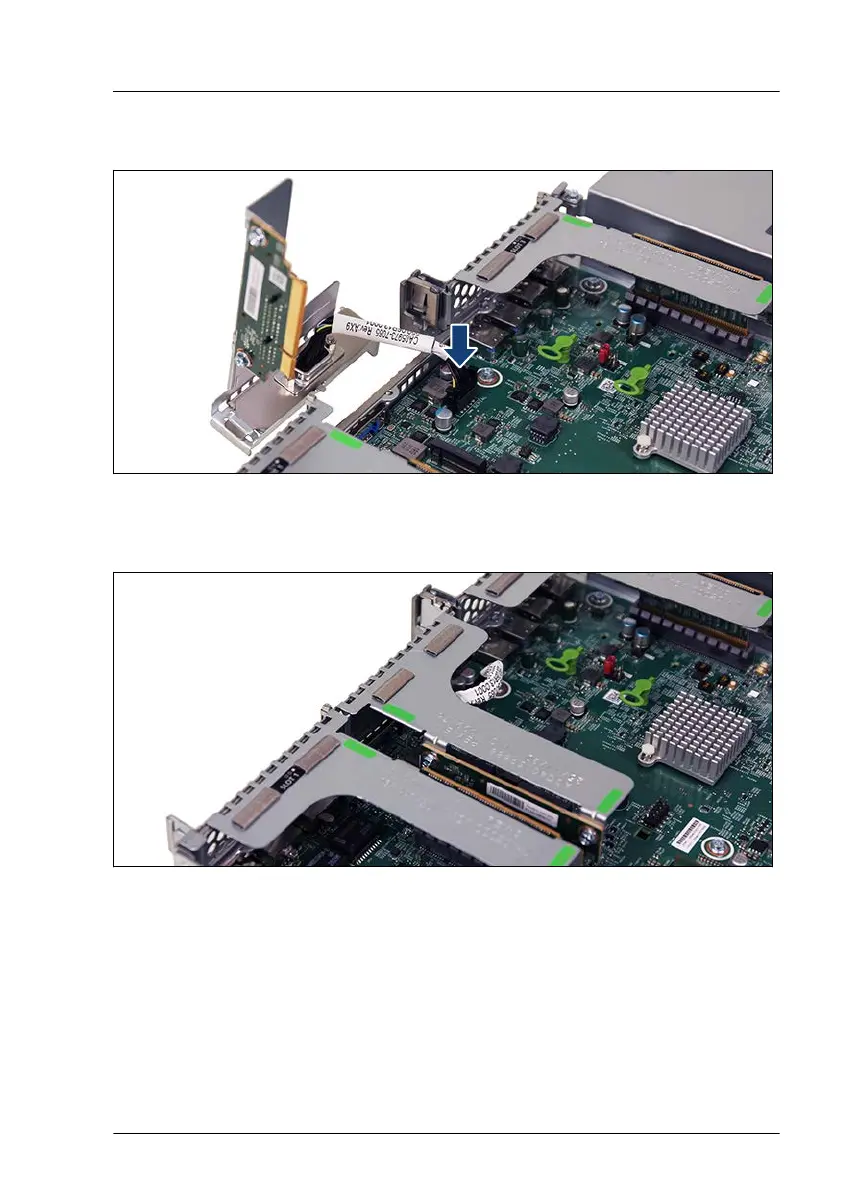

Figure 232: Connecting the serial interface cable
▶
Connect the serial interface cable to the system board connector "SERIAL".
Figure 233: Installed riser module 2
Concluding steps
▶
Install the riser module 2, see "Installing a riser module" on page 64
.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 57.
Serial interface
RX1330 M5 Upgrade and Maintenance Manual 285
