Removing the serial interface

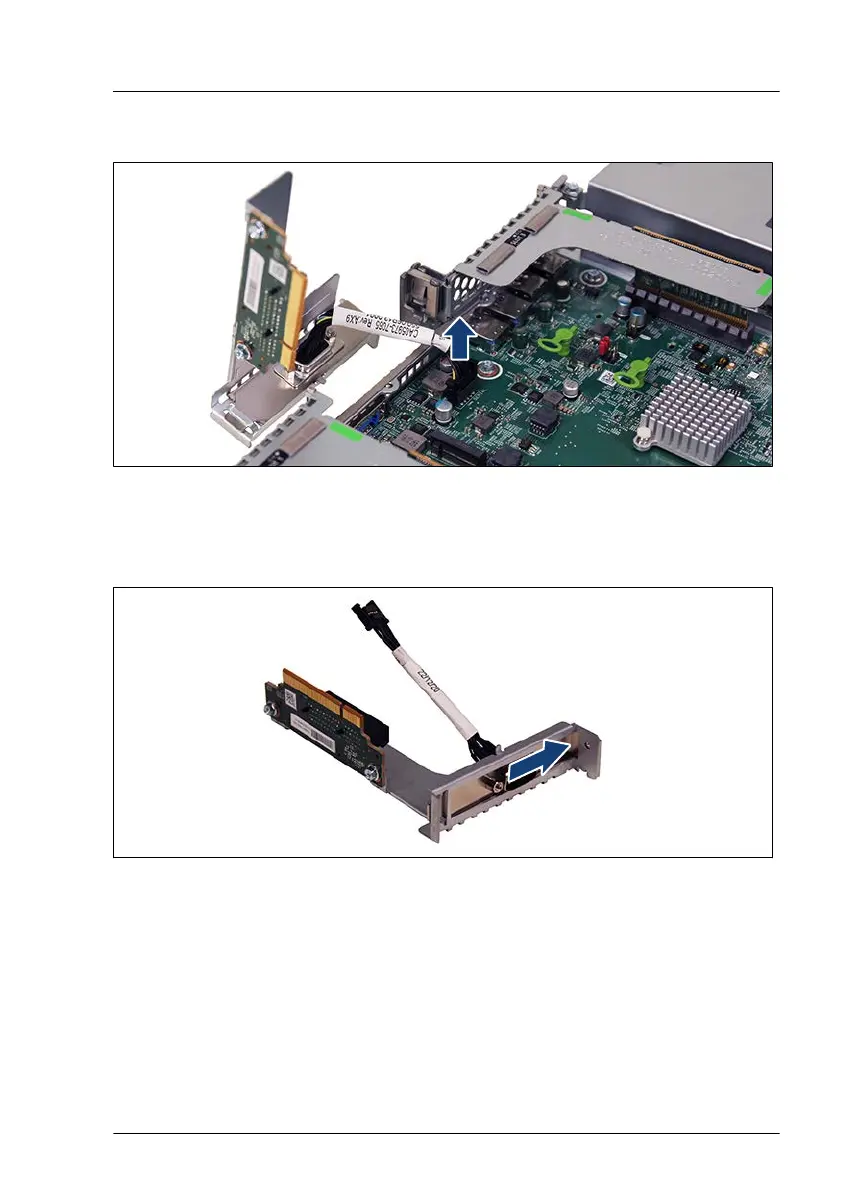

Figure 234: Disconnecting the serial interface cable
▶
Disconnect the serial interface cable from the system board connector
"SERIAL".
Figure 235: Removing the serial interface
▶
Remove the serial interface.
▶
Install the slot cover
, see
"Installing the slot cover" on page 202.
Serial interface
