Remove the riser module 2 and riser module 3, see "Removing a riser
module" on page 63
.
Removing the M.2 SSD

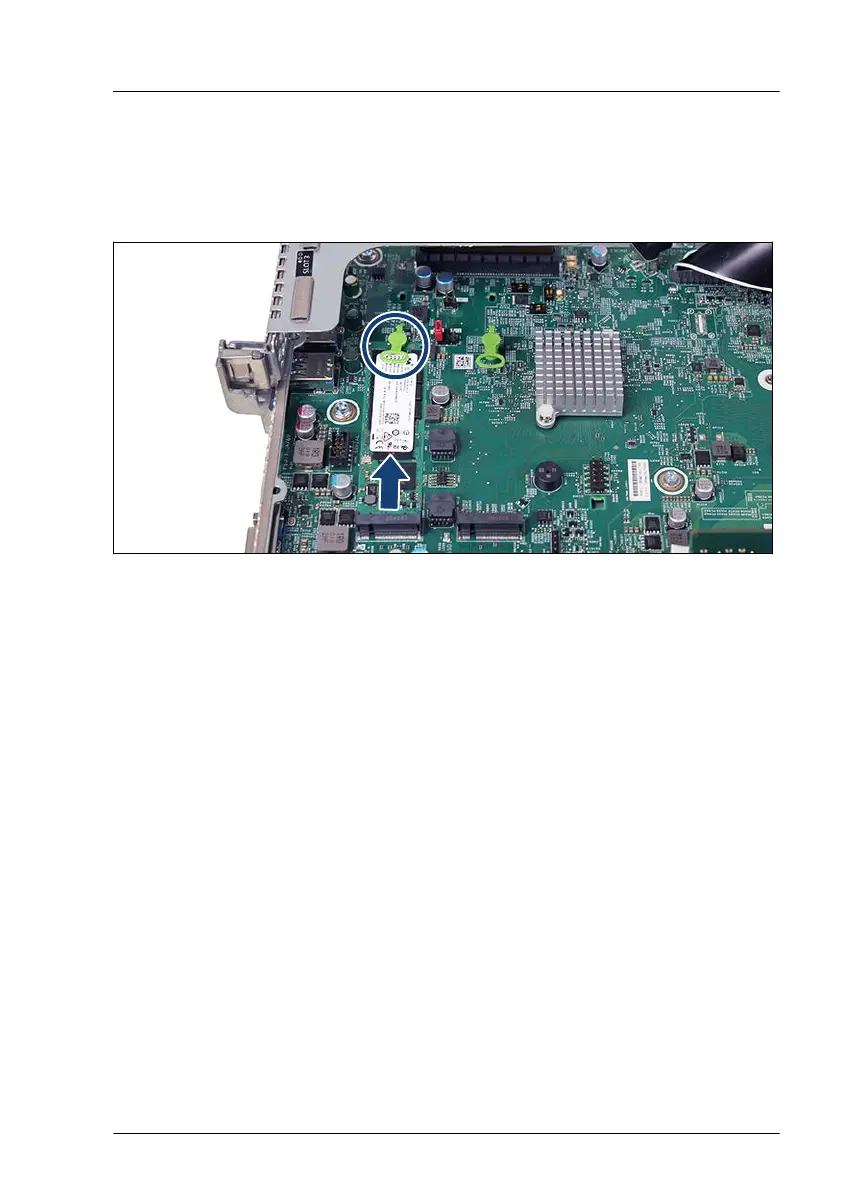

Figure 252: Removing the M.2 SSD
▶
Open the M.2 SSD lock (see circle).
▶
T
ake the M.2 SSD out of its slot at a slight angle.
▶
If applicable, remove the second M.2 SSD in the same way
.
Concluding steps
▶
Install the riser module 2 and riser module 3, see "Installing a riser module"
on page 64.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
