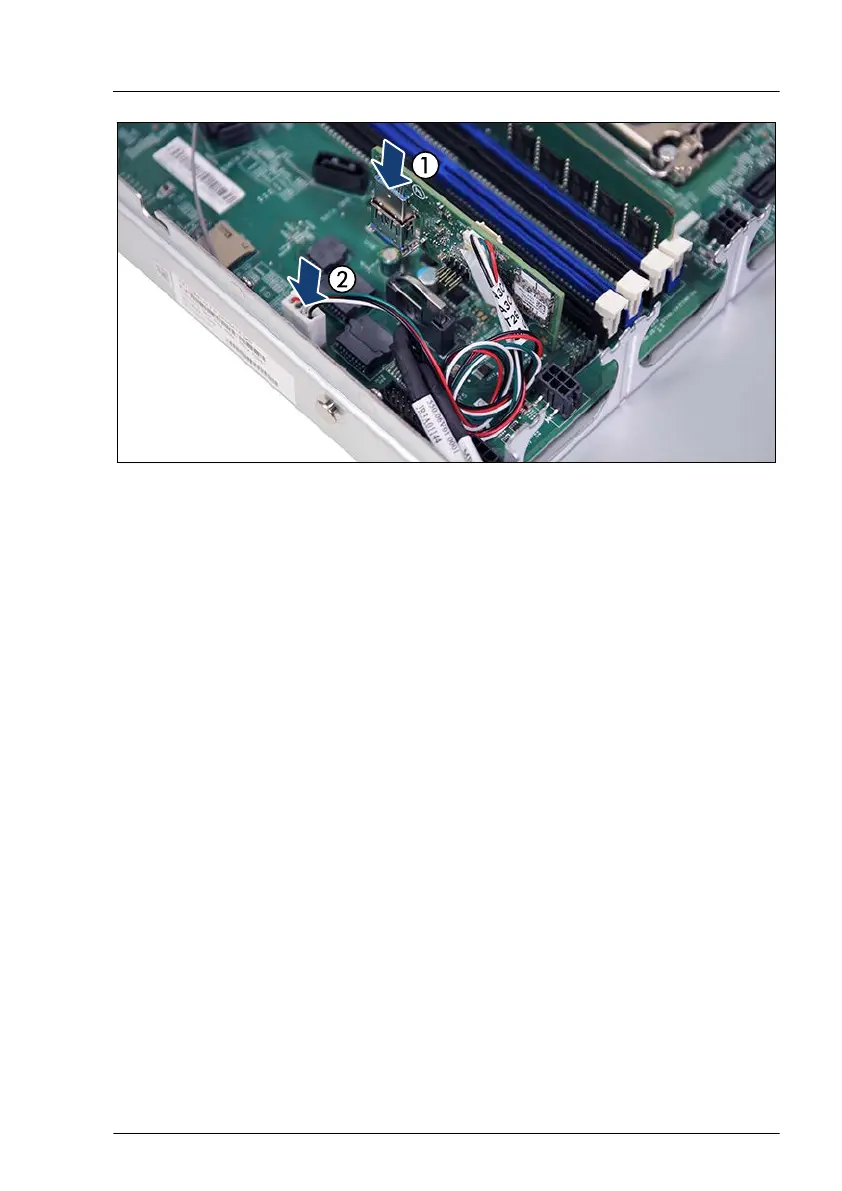

Figure 256: Installing the Dual microSD 64GB Enterprise
▶
Install the Dual microSD 64GB Enterprise into the connector "USB 5" on the
system board (1).
▶
Connect the cable to the connector "ROC" on the system board (2).
Concluding steps
▶
"Installing the air duct" on page
66.
▶
"Reassembling" on page
53.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
If applicable, "Installing the front cover with lock" on page 61.
Software configuration
In order to install the ESXi to the Dual microSD 64GB Enterprise, the VMware
ESXi installer CD is required. To obtain the ESXi installer CD by purchasing the
OEM Media Kit, or downloading the ESXi Custom Image ISO file from the
VMware website and burn the image to the CD.
https://www.vmware.com/go/download-vsphere
Install the ESXi to the Dual microSD 64GB Enterprise by following the steps
below:
System board and components
RX1330 M5 Upgrade and Maintenance Manual 321
