Fujitsu PRIMERGY RX1330 M5

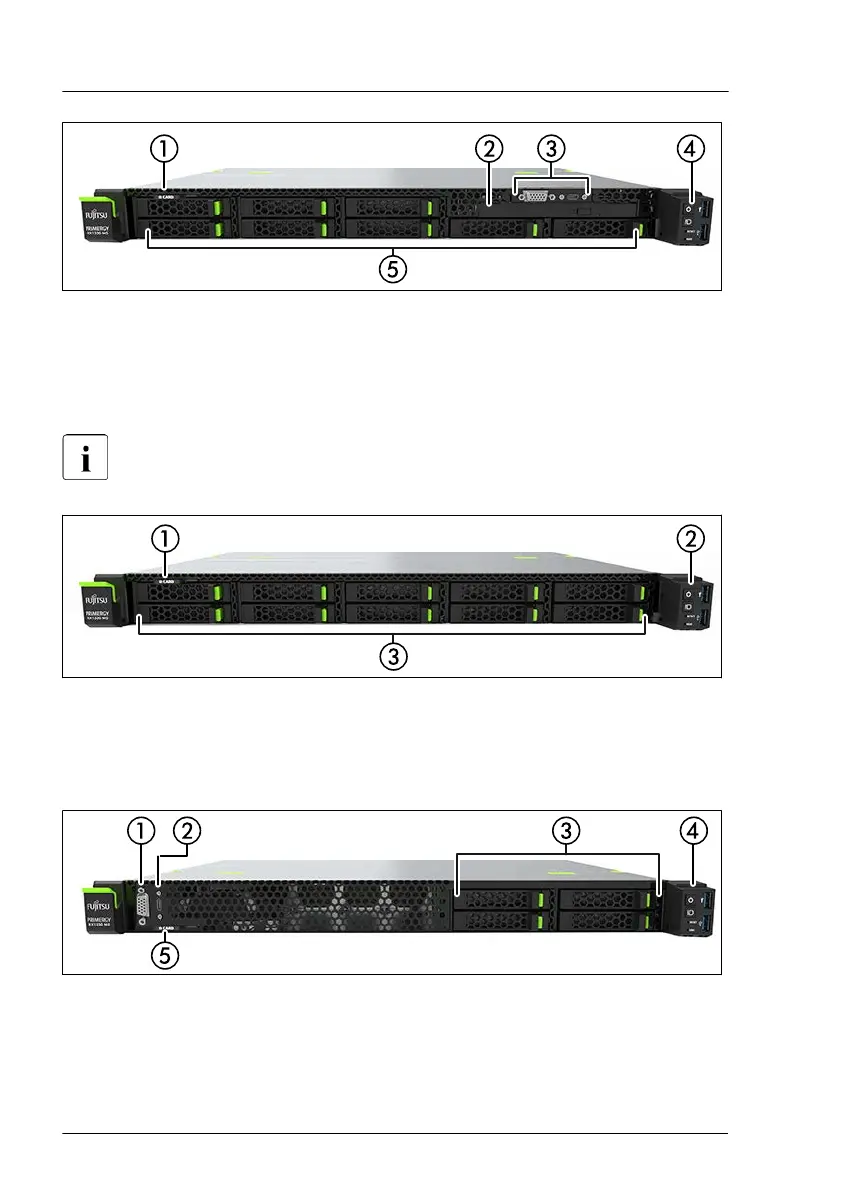

Figure 263: Server front with up to 8x 2.5-inch HDDs/SSDs (RX1330 M5)
1 ID card
2
ODD (option) / dummy cover
3
Front VGA module
4 Common Operation Panel (COP)
5 Up to 8x 2.5-inch HDDs/SSDs
The front VGA module offers a front VGA connector (option) and an
USB Type C connector.
Figure 264: Server front with up to 10x 2.5-inch HDDs/SSDs (RX1330 M5)
1 ID card
2 Common Operation Panel (COP)
3
Up to 10x 2.5-inch HDDs/SSDs
Figure 265: Server front with up to 4x 2.5-inch HDDs/SSDs (RX1330 M5S)
1 Front VGA connector (option)
2 USB T
ype C connector
3 Up to 4x 2.5-inch HDDs/SSDs
4 Common Operation Panel (COP)
5 ID card
