Fujitsu PRIMERGY RX1330 M5 User Manual

3RX1330M5S

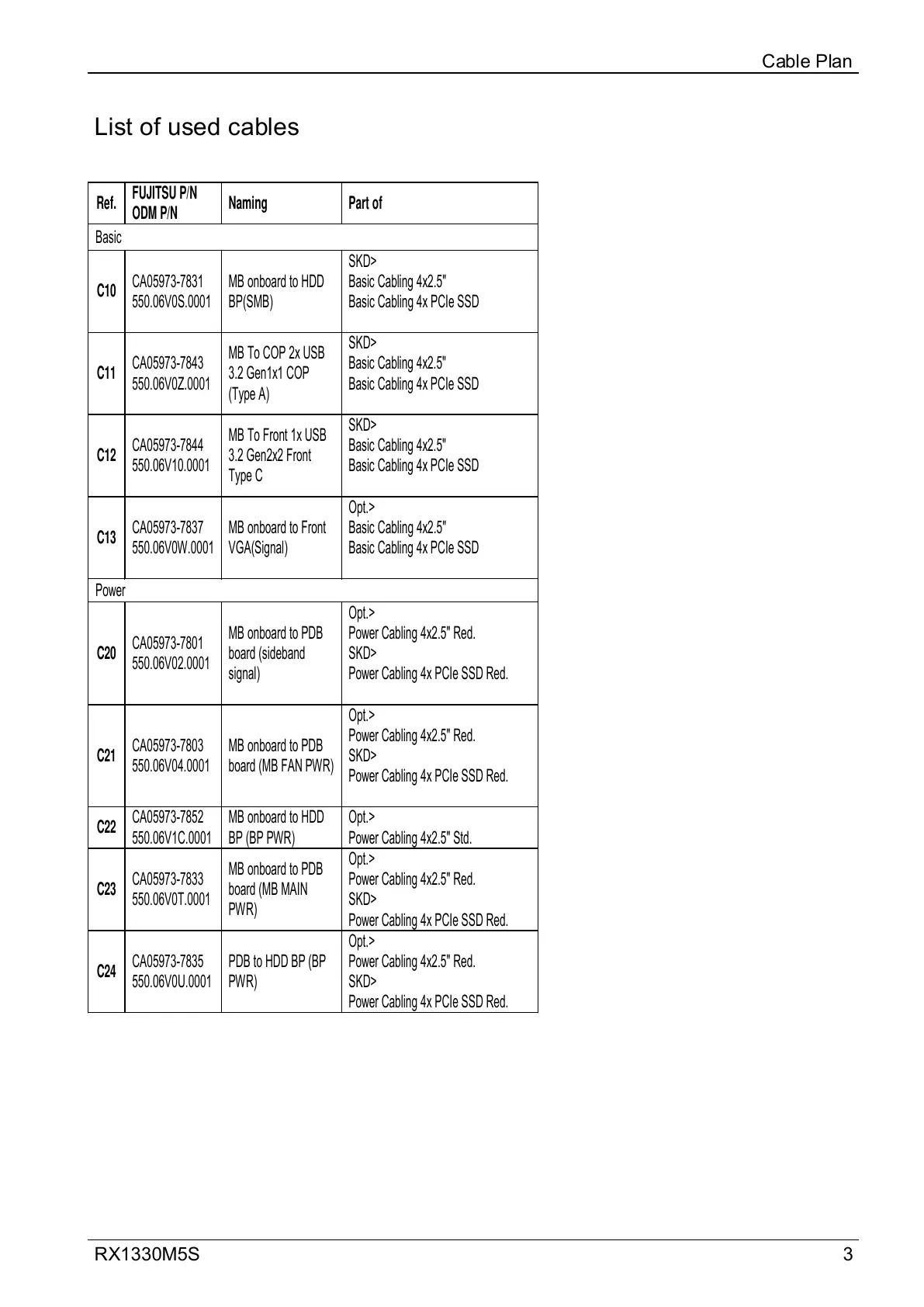

List of used cables
Cable Plan
Ref.
FUJITSU P/N
ODM P/N
Naming
Part of
Basic
C10
CA05973-7831
550.06V0S.0001
MB onboard to HDD
BP(SMB)
SKD>
Basic Cabling 4x2.5"
Basic Cabling 4x PCIe SSD
C11
CA05973-7843
550.06V0Z.0001
MB To COP 2x USB
3.2 Gen1x1 COP
(Type A)
SKD>
Basic Cabling 4x2.5"
Basic Cabling 4x PCIe SSD
C12
CA05973-7844
550.06V10.0001
MB To Front 1x USB
3.2 Gen2x2 Front
Type C
SKD>
Basic Cabling 4x2.5"
Basic Cabling 4x PCIe SSD
C13
CA05973-7837
550.06V0W.0001
MB onboard to Front
VGA(Signal)
Opt.>
Basic Cabling 4x2.5"
Basic Cabling 4x PCIe SSD
Power
C20
CA05973-7801
550.06V02.0001
MB onboard to PDB
board (sideband
signal)
Opt.>
Power Cabling 4x2.5" Red.
SKD>
Power Cabling 4x PCIe SSD Red.
C21
CA05973-7803
550.06V04.0001
MB onboard to PDB
board (MB FAN PWR)
Opt.>
Power Cabling 4x2.5" Red.
SKD>
Power Cabling 4x PCIe SSD Red.
C22
CA05973-7852
550.06V1C.0001
MB onboard to HDD
BP (BP PWR)
Opt.>
Power Cabling 4x2.5" Std.
C23
CA05973-7833
550.06V0T.0001
MB onboard to PDB
board (MB MAIN
PWR)
Opt.>
Power Cabling 4x2.5" Red.
SKD>
Power Cabling 4x PCIe SSD Red.
C24
CA05973-7835
550.06V0U.0001
PDB to HDD BP (BP
PWR)
Opt.>
Power Cabling 4x2.5" Red.
SKD>
Power Cabling 4x PCIe SSD Red.

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
