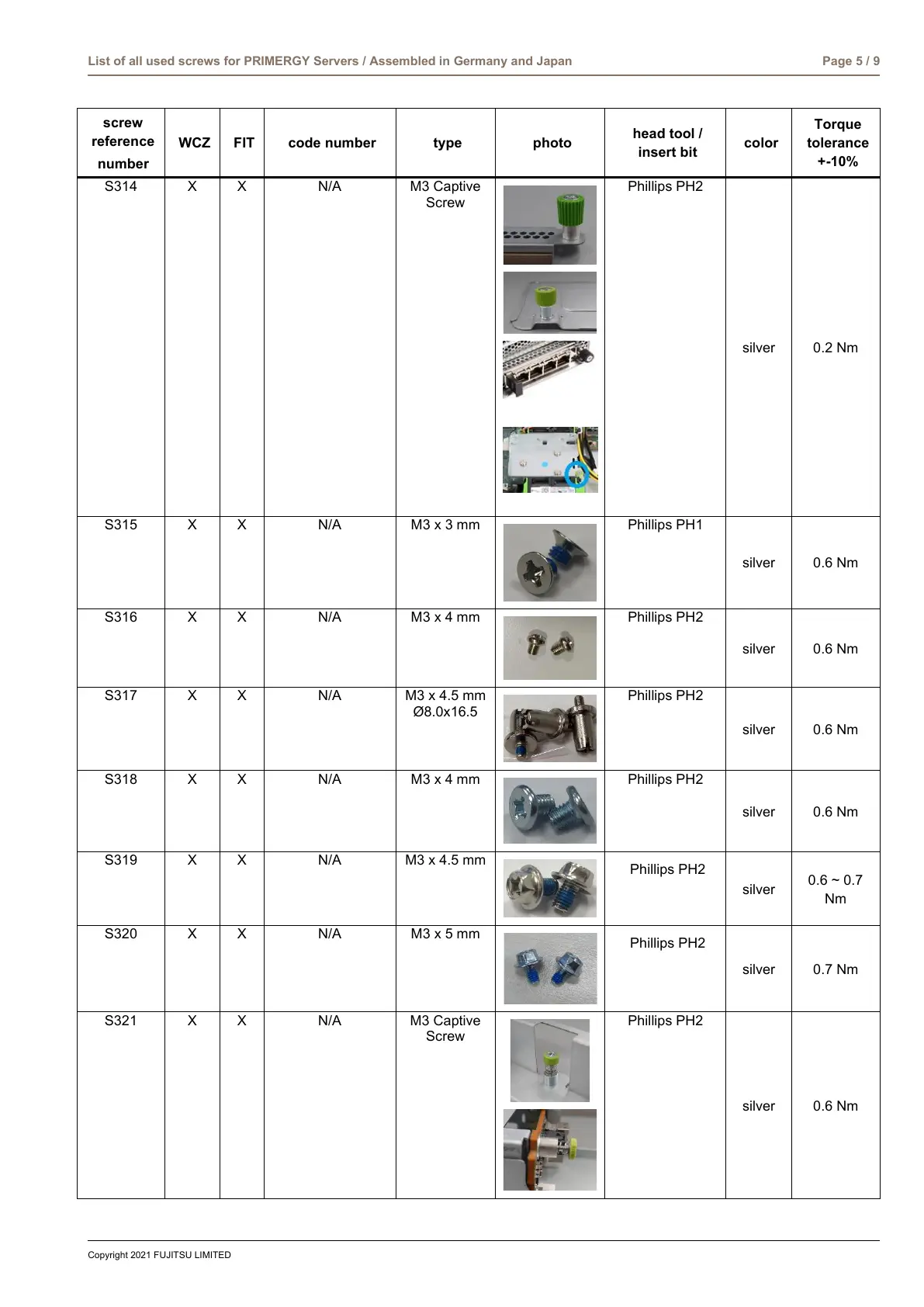

List of all used screws for PRIMERGY Servers / Assembled in Germany and Japan Page 5 / 9
screw
reference
number
WCZ
FIT
code number
type
head tool /
insert bit
color
Torque
tolerance
+-10%
S314
X
X
N/A
M3 Captive
Screw
Phillips PH2
silver
0.2 Nm
S315
X
X
N/A
M3 x 3 mm
Phillips PH1
silver
0.6 Nm
S316
X
X
N/A
M3 x 4 mm
Phillips PH2
silver
0.6 Nm
S317
X
X
N/A
M3 x 4.5 mm
Ø8.0x16.5
Phillips PH2
silver
0.6 Nm
S318
X
X
N/A
M3 x 4 mm
Phillips PH2
silver
0.6 Nm
S319
X
X
N/A
M3 x 4.5 mm
Phillips PH2
silver
0.6 ~ 0.7
Nm
S320
X
X
N/A
M3 x 5 mm
Phillips PH2
silver
0.7 Nm
S321
X
X
N/A
M3 Captive
Screw
Phillips PH2
silver
0.6 Nm

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
