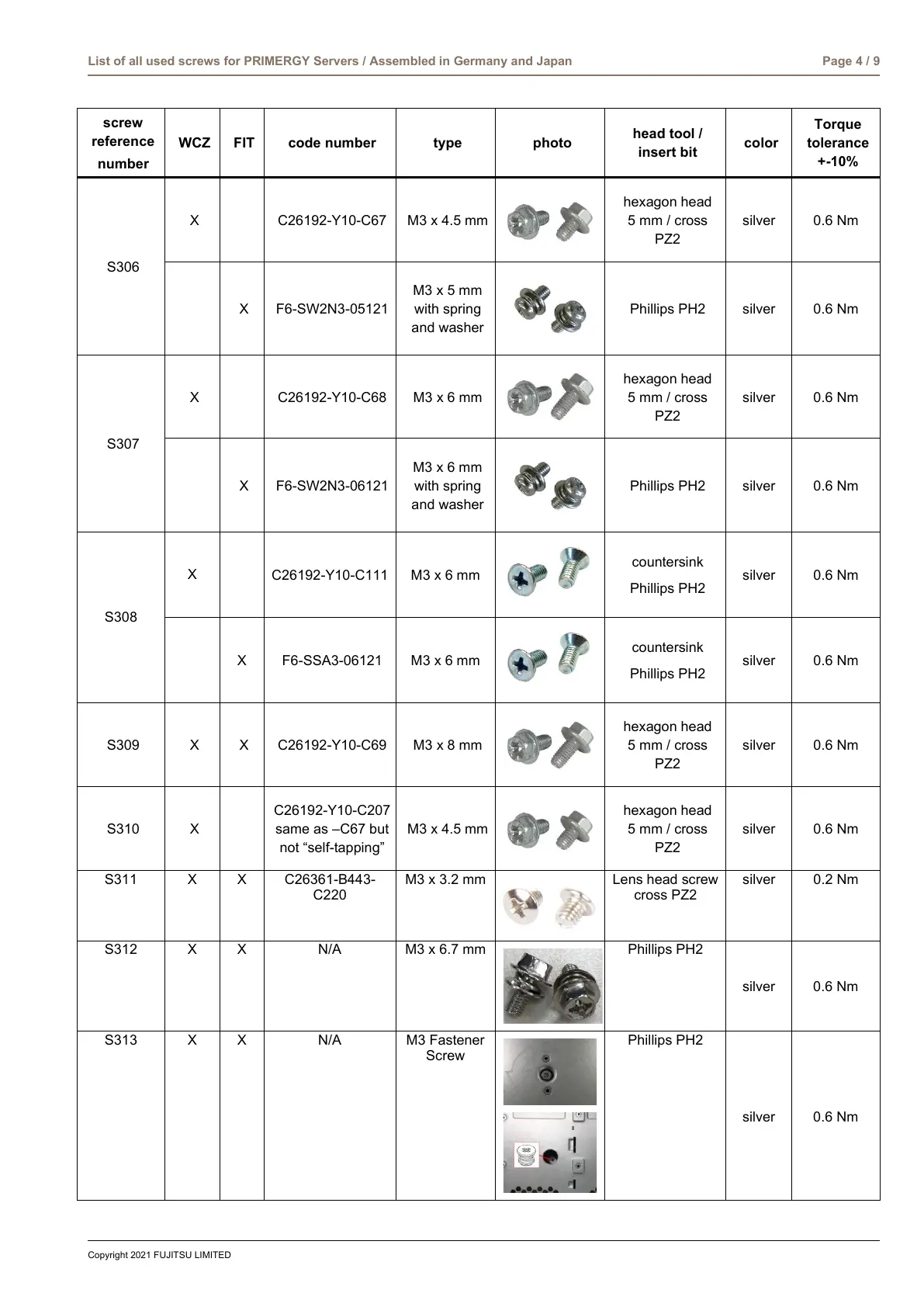

List of all used screws for PRIMERGY Servers / Assembled in Germany and Japan Page 4 / 9
screw
reference
number
WCZ
FIT
code number
type
head tool /
insert bit
color
Torque
tolerance
+-10%
S306
X
C26192-Y10-C67
M3 x 4.5 mm
hexagon head
5 mm / cross
PZ2
silver
0.6 Nm
X
F6-SW2N3-05121
M3 x 5 mm
with spring
and washer
Phillips PH2
silver
0.6 Nm
S307
X
C26192-Y10-C68
M3 x 6 mm
hexagon head
5 mm / cross
PZ2
silver
0.6 Nm
X
F6-SW2N3-06121
M3 x 6 mm
with spring
and washer
Phillips PH2
silver
0.6 Nm
S308
X
C26192-Y10-C111
M3 x 6 mm
countersink
Phillips PH2
silver
0.6 Nm
X
F6-SSA3-06121
M3 x 6 mm
countersink
Phillips PH2
silver
0.6 Nm
S309
X
X
C26192-Y10-C69
M3 x 8 mm
hexagon head
5 mm / cross
PZ2
silver
0.6 Nm
S310
X
C26192-Y10-C207
same as –C67 but
not “self-tapping”
M3 x 4.5 mm
hexagon head
5 mm / cross
PZ2
silver
0.6 Nm
S311
X
X
C26361-B443-
C220
M3 x 3.2 mm
Lens head screw
cross PZ2
silver
0.2 Nm
S312
X
X
N/A
M3 x 6.7 mm
Phillips PH2
silver
0.6 Nm
S313
X
X
N/A
M3 Fastener
Screw
Phillips PH2
silver
0.6 Nm

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
