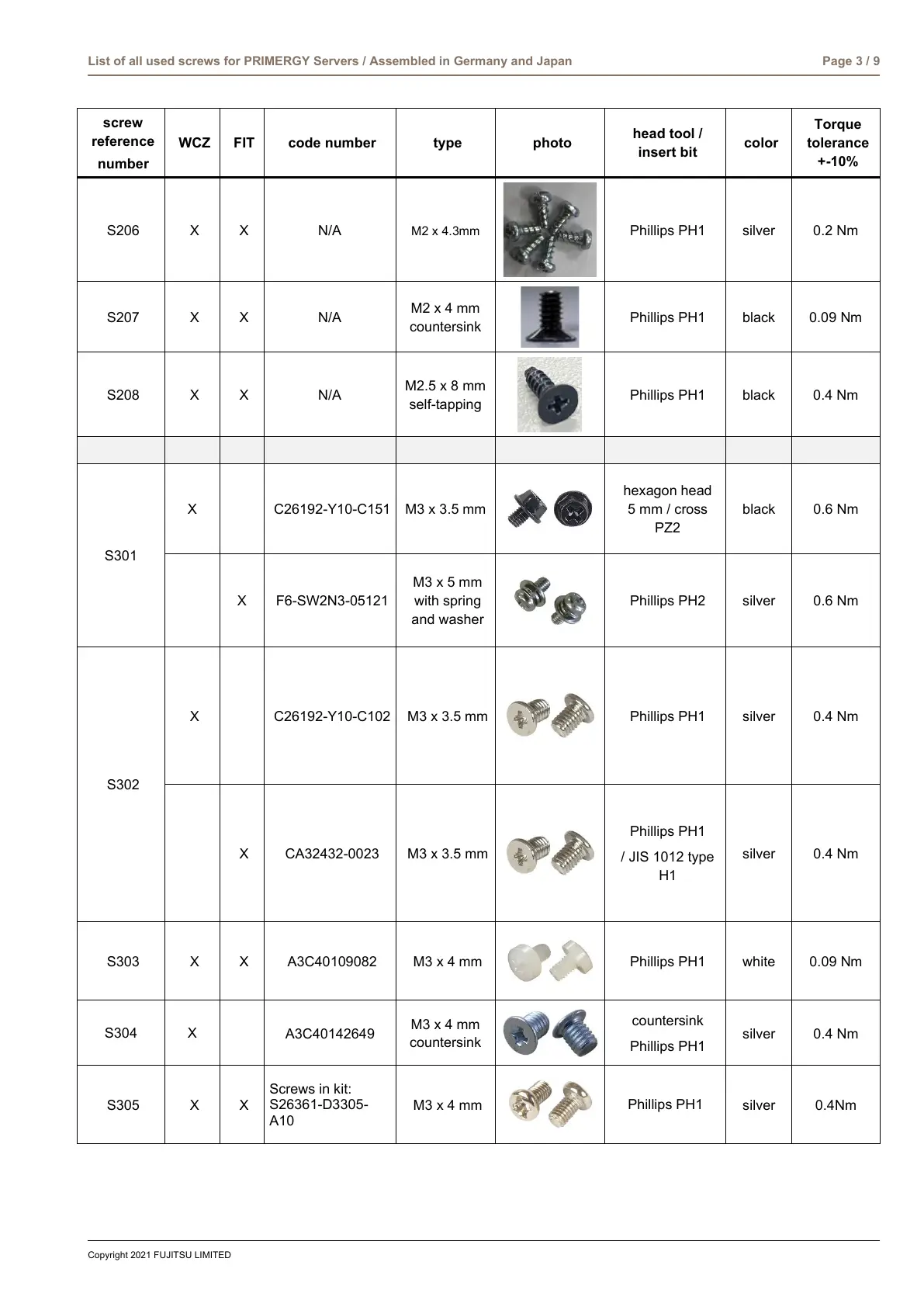

List of all used screws for PRIMERGY Servers / Assembled in Germany and Japan Page 3 / 9
screw
reference
number
WCZ
FIT
code number
type
head tool /
insert bit
color
Torque
tolerance
+-10%
S206
X
X
N/A
M2 x 4.3mm
Phillips PH1
silver
0.2 Nm
S207
X
X
N/A
M2 x 4 mm
countersink
Phillips PH1
black
0.09 Nm
S208
X
X
N/A
M2.5 x 8 mm
self-tapping
Phillips PH1
black
0.4 Nm
S301
X
C26192-Y10-C151
M3 x 3.5 mm
hexagon head
5 mm / cross
PZ2
black
0.6 Nm
X
F6-SW2N3-05121
M3 x 5 mm
with spring
and washer
Phillips PH2
silver
0.6 Nm
S302
X
C26192-Y10-C102
M3 x 3.5 mm
Phillips PH1
silver
0.4 Nm
X
CA32432-0023
M3 x 3.5 mm
Phillips PH1
/ JIS 1012 type
H1
silver
0.4 Nm
S303
X
X
A3C40109082
M3 x 4 mm
Phillips PH1
white
0.09 Nm
S304
X
A3C40142649
M3 x 4 mm
countersink
countersink
Phillips PH1
silver
0.4 Nm
S305
X
X
Screws in kit:
S26361-D3305-
A10
M3 x 4 mm
Phillips PH1
silver
0.4Nm

Fujitsu PRIMERGY RX1330 M5 Specifications

General

Processor Sockets	1
Memory	Up to 128 GB
Memory Type	DDR4
Form Factor	1U rack server
Memory Slots	4 DIMM slots
Storage	Up to 4x 3.5" or 8x 2.5" drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	2x 1GbE LAN ports
Power Supply	800W
