Redundant power supply

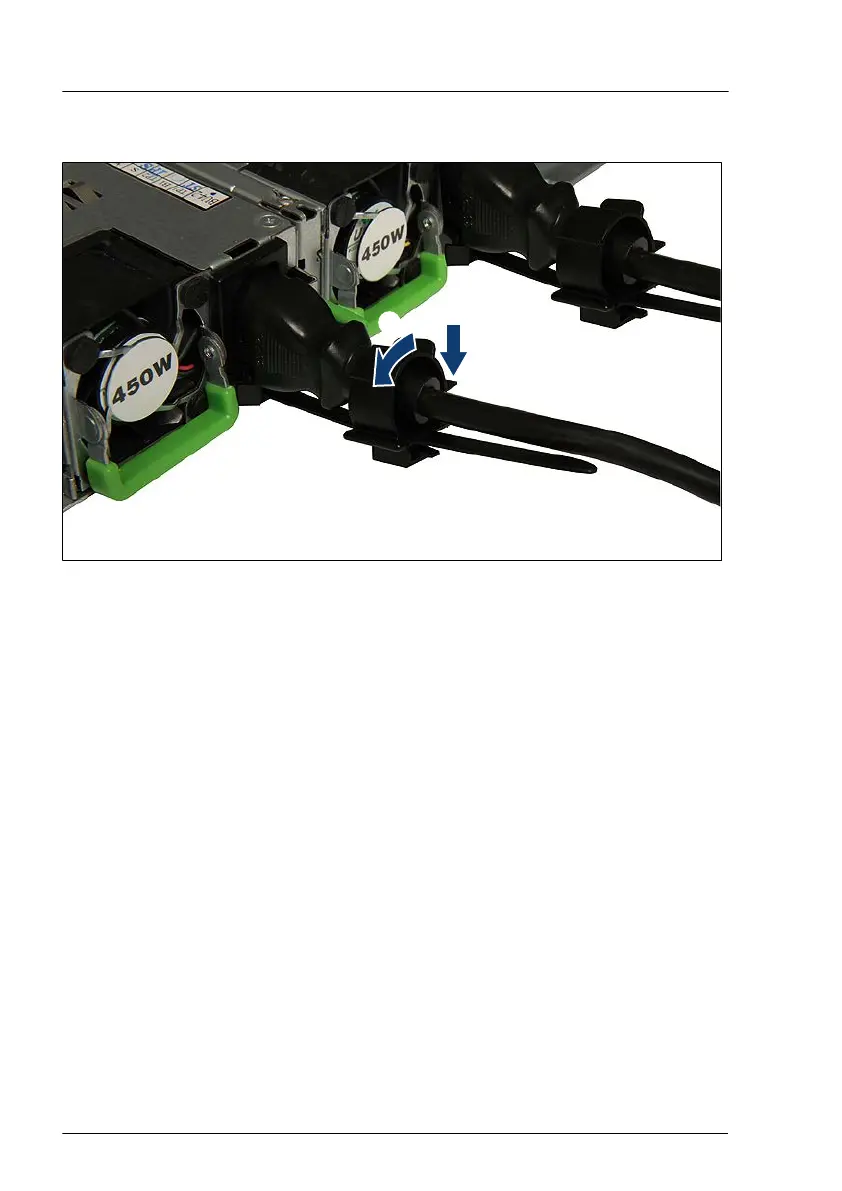

Figure 5: Unlocking the cable clamp of a PSU
▶
Press the cable clamp down until it disengages (1).
▶
Open the cable clamp (2).
▶
Disconnect the power cord from the PSU and remove it from cable clamp.
Basic hardware procedures
48 Upgrade and Maintenance Manual RX1330 M5
