4.3 Static Switch panel
The static switch panel, located on the front of static switch module, provides the user with the status of the
static switch module. All the functions and indications are available on the POWER
+
Control Panel.

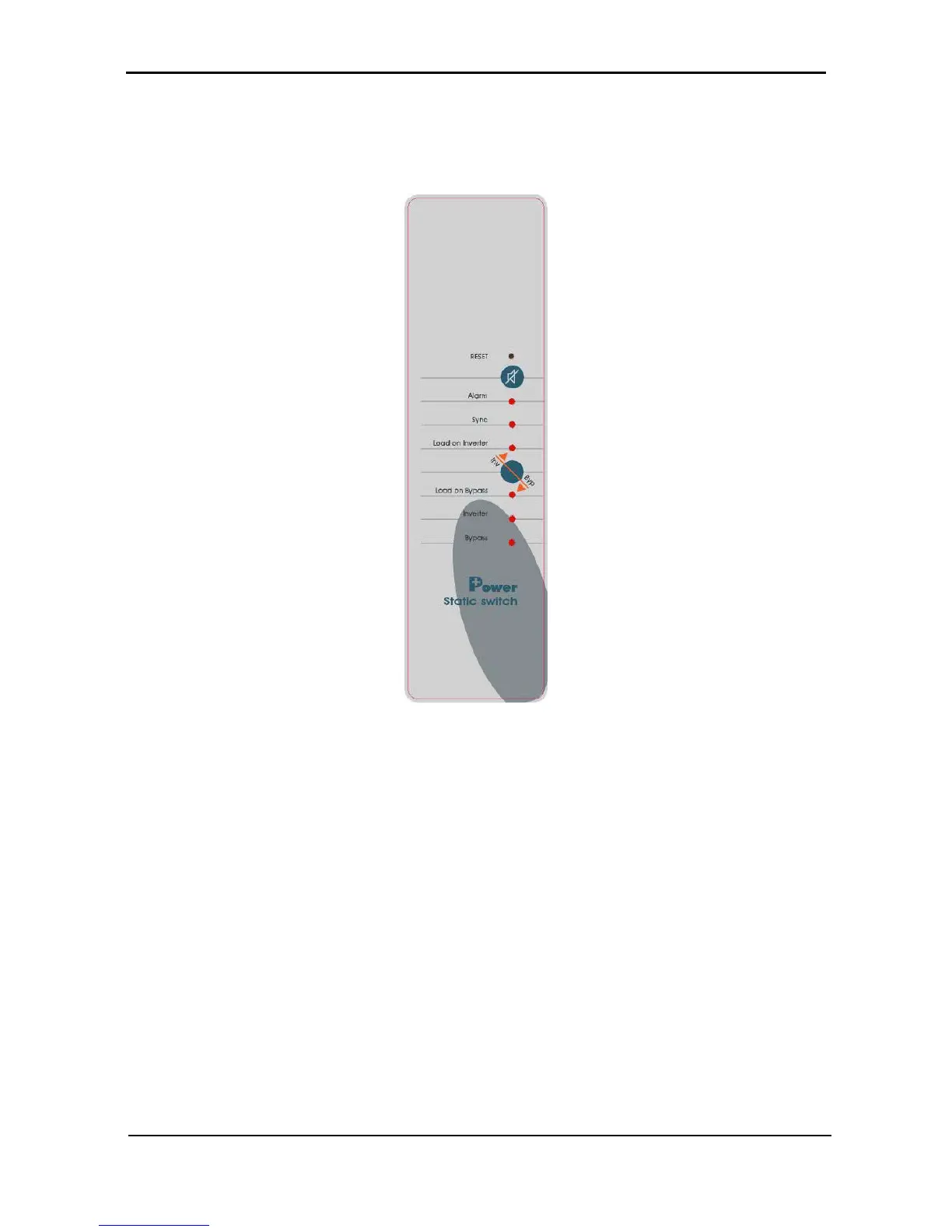

Figure 27: Static switch panel
