GAMATRONIC ELECTRONIC INDUSTRIES LTD.
56
POWER
+
PARALLEL
UPS,
USER GUIDE
,
REL
.
2.0
6.1 Quick-reference summary of Power+ menu functions
The following flowcharts detail the structure of the PowerPlus menus.
The symbol
directs you to a following chart. For example, means "go to the diagram
labeled M.7.3. Diagram M.7.3 illustrates sub-option 3 of Main Menu option 7.

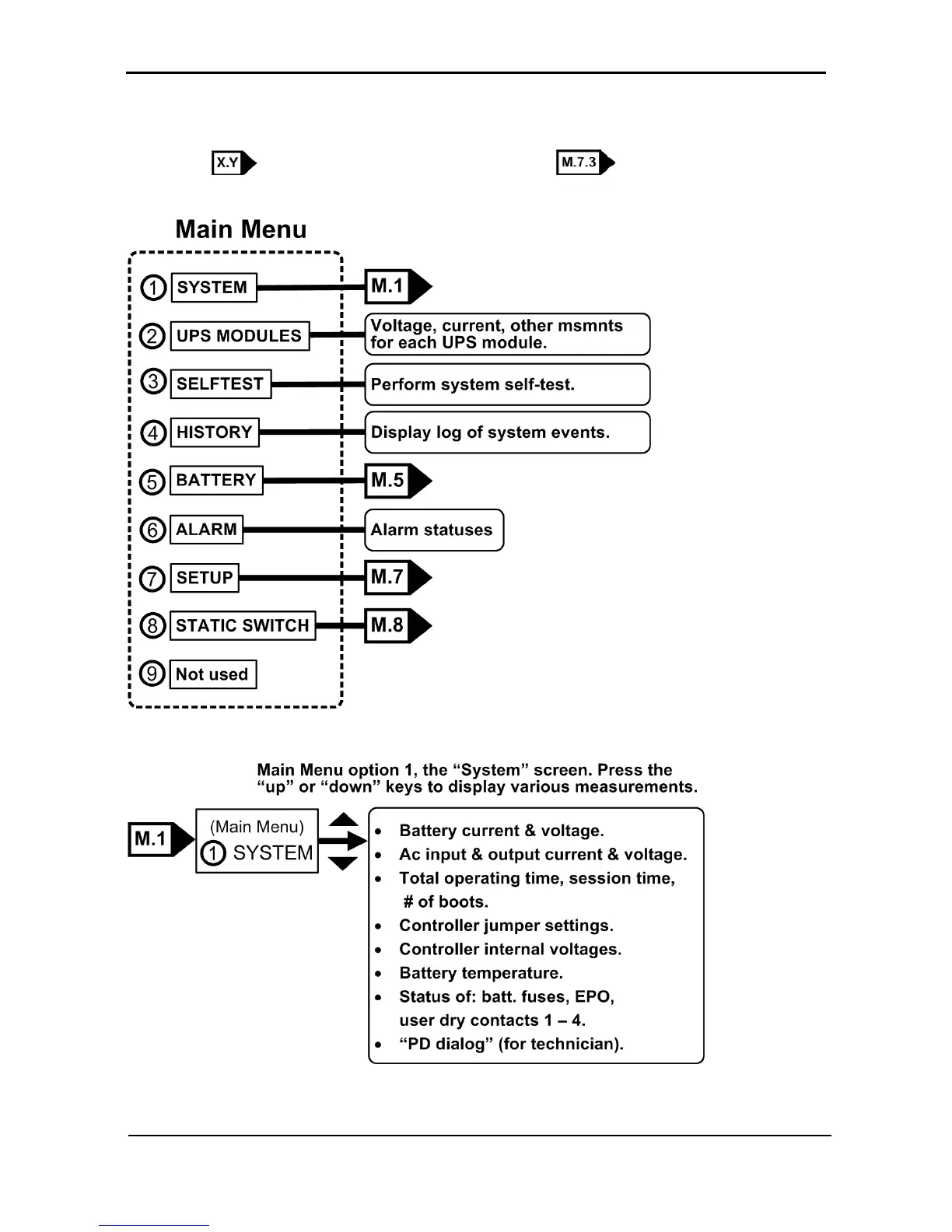

Figure 70: Main menu
Figure 71: System menu
