7.6 “Battery” Option
The information displayed on these screens is related only to one UPS, the UPS being queried.
The battery option on the main menu displays information about battery capacity, battery voltage and
current, and battery test. The information displayed on these screens is only related to one UPS; the one
being queried.

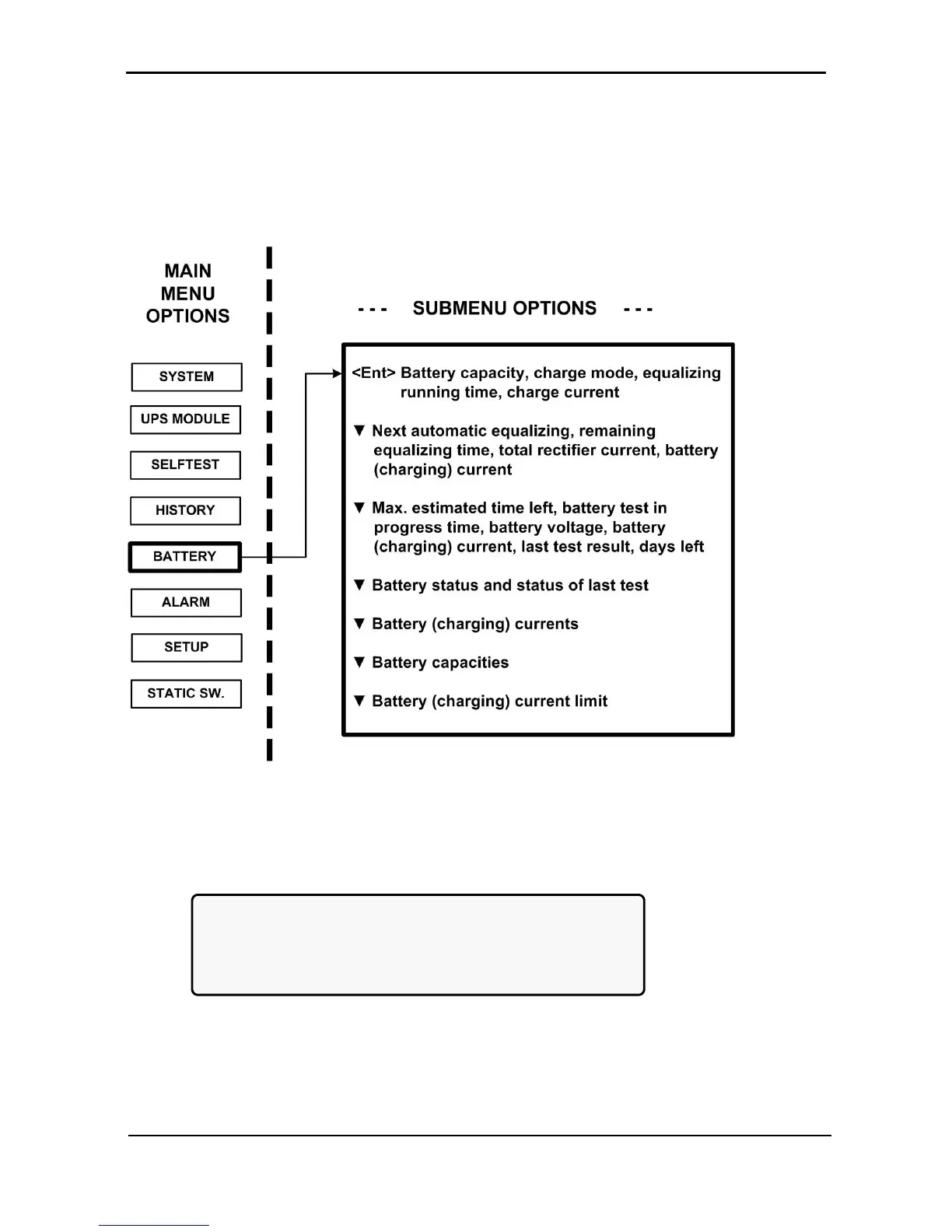

Figure 104: Main Menu option 5 (“Battery”)
1. View the battery capacity, charge mode, equalizing running time, and charge current:
[Main Menu > BATTERY]
Battery capacity: 0020Ah
Charge mode : Floating
Eq. running time: --------
Charge current : 053.0A
Figure 105: Battery status
