5. POWER
+
ROUTINE START-UP
5.1 Start-up after Shutdown
This section describes the start-up procedures for the operator after a POWER
+
shutdown. After
shutdown, the UPS on, Alarm and Load indicators will flash.
After a normal POWER+ shutdown the display screen indicates a load of zero amps, the UPS status is “OK,
OFF”; the Static Switch status is “OK, BYP”.
LOAD LEVEL ---22:21:18---
L1:__________ 000A, 230V BATTERY: 864V
L2:__________ 000A, 230V UPS OK (OFF)
L3:__________ 000A, 230V STSW OK (BYP)

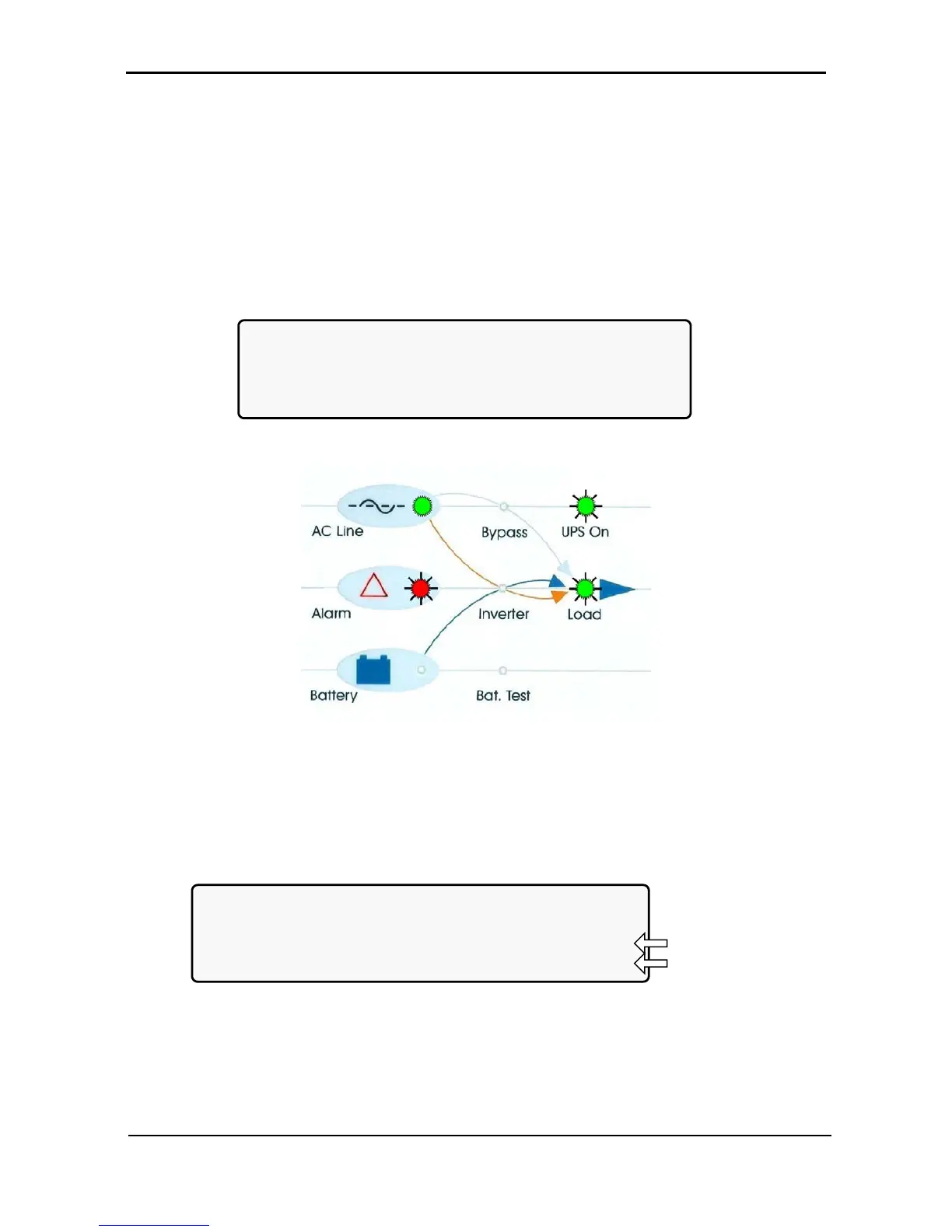

Figure 60: Main screen after a power shutdown
Figure 61: Main screen after a power shutdown indication
1. Press twice on the On/Off button on the upper right of the system controller panel.
Wait about 2 minutes for the POWER
+
to start up.
The following screen is displayed:
LOAD LEVEL ---22:21:18---
L1:__________ 000A, 230V BATTERY: 864V
L2:__________ 000A, 230V UPS OK (ON)
L3:__________ 000A, 230V STSW OK (INV)
Status
indications
Figure 62: Main screen at power-up
The UPS status should now be “OK, ON” and the STSW status “OK INV”.
