4.9 POWER
+
operation modes
4.9.1 Normal operation
During normal operation, the UPS draws power from the ac line, feeds dc to the inverter, which provides ac
to the load.
LOAD LEVEL ---11:20:25---
L1: _____ 015A, 230V BATTERY: 868V
L2: ______ 012A, 230V UPS OK (ON)
L3: _______ 011A, 230V STSW OK (INV)

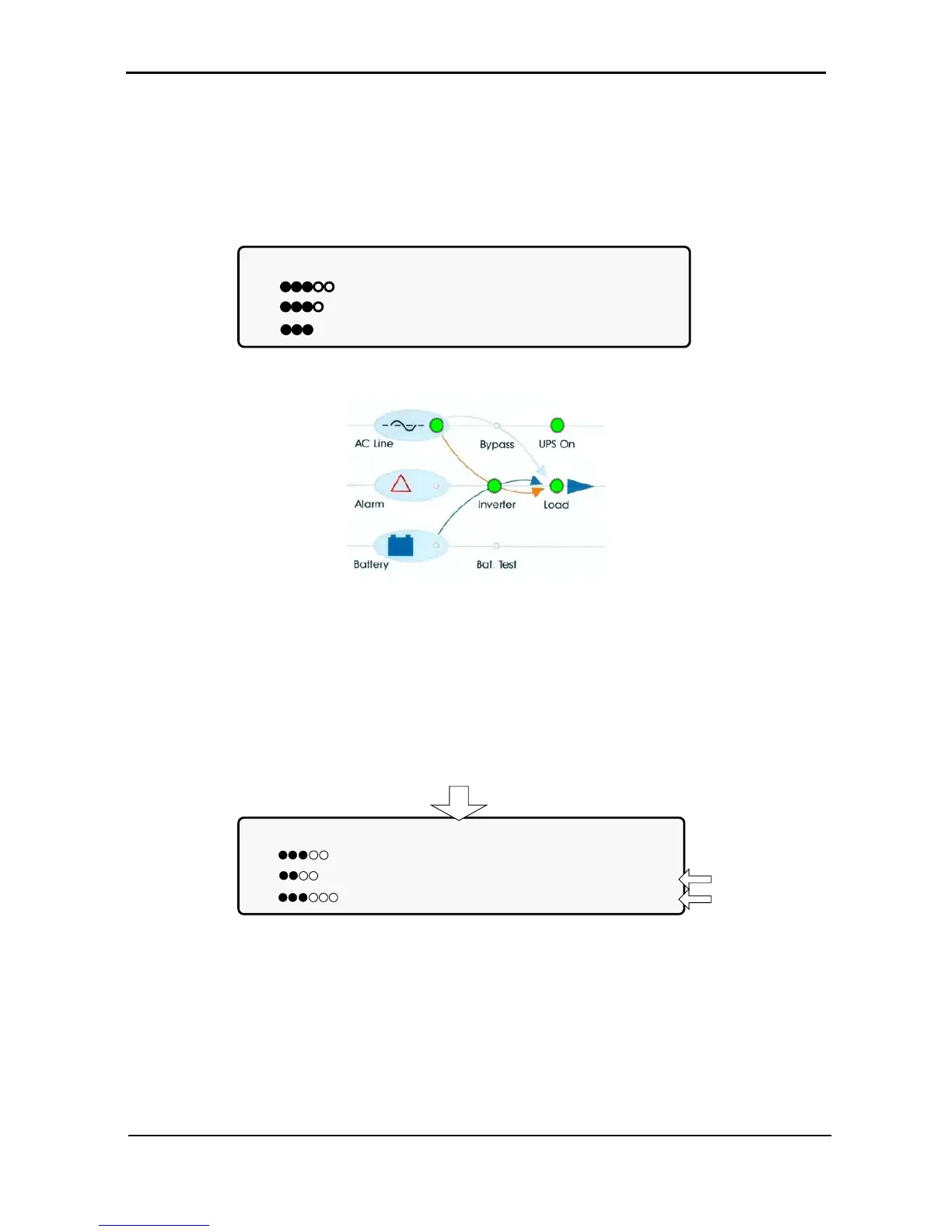

Figure 32: POWER+ control screen in normal operation
Figure 33: Normal operation indication
4.9.2 Battery operation
During Battery Operation, the battery supplies dc to the inverter that then provides ac to the load.
The red alarm flashes to indicate an abnormal status.
LOAD LEVEL no ac 005m ---11:20:25---
L1: _____ 015A, 230V BATTERY: 868V
L2: ______ 012A, 230V UPS OK (ON)
L3: ____ 011A, 230V STSW OK (INV)
AC failed for the
past 5 minutes
Status
indications
Figure 34: Ac power failure
