GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
8 - 144 Section 8-8 - Replacing Main Console
8-8-16 Replacement of the Rear Cover Bottom Assy-T
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6
8-8-16-1 Preparations
Remove the Rear Cover Mid Assy-T as described in 8-8-10 "Replacement of the Rear Cover Mid Assy-
T" on page 8-138
8-8-16-2 Removal Procedure
8-8-16-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)”
as described in Section 8-
12 on page 8-223
Table 8-78 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 5 minutes No tools required
Cut resistant gloves
Knee Pad

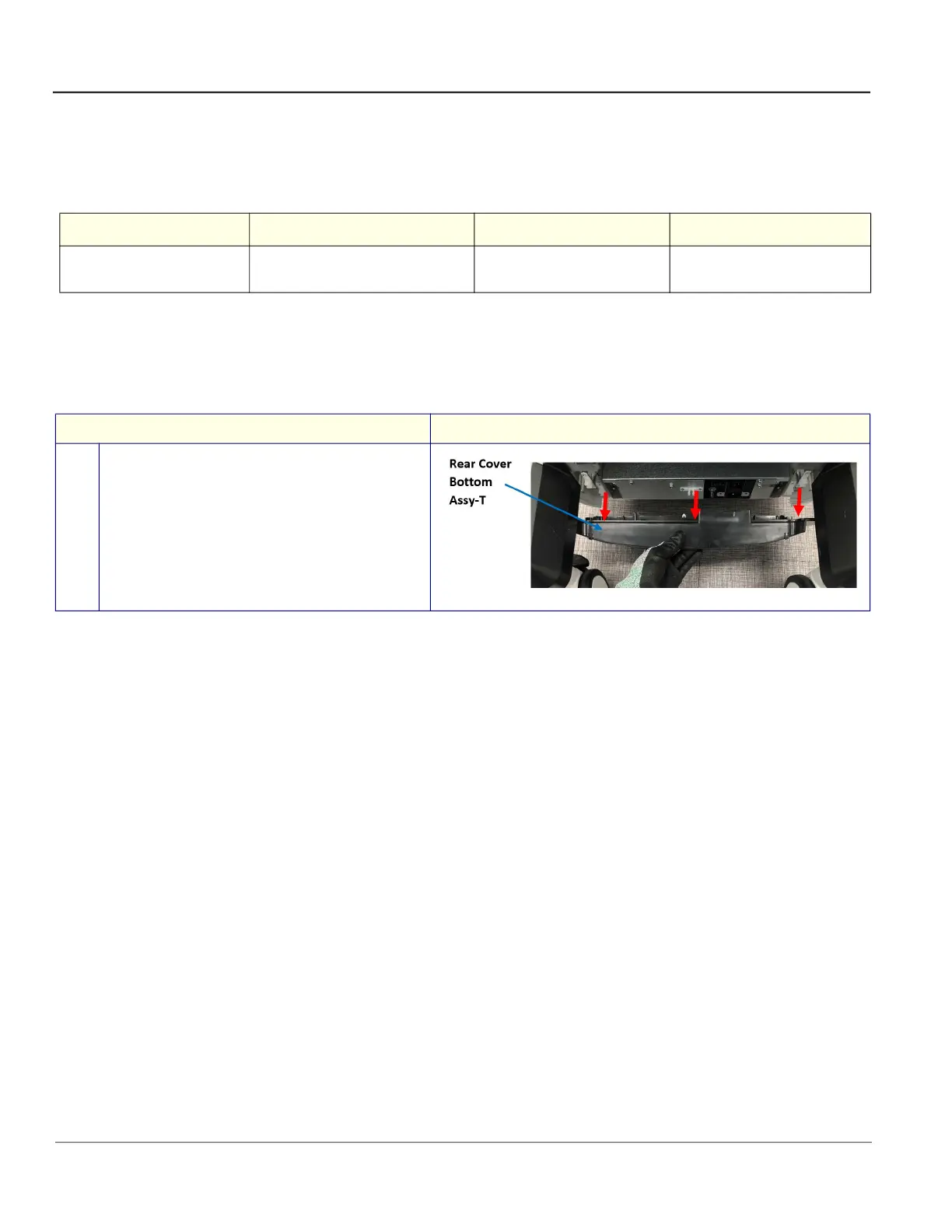

Step Corresponding graphic
1.
Pull the Rear Cover Bottom Assy-T to remove from
the console.
To Next Page
