GE HealthCare CONFIDENTIAL
DIRECTION 5936427, REV. 1 LOGIQ TOTUS Basic Service Manual
Section 8-8 - Replacing Main Console 8 - 153
8-8-23 Replacement of the AC Inlet Fuse 2EA
This table includes information specific to these instructions. For more information 8-2-6 "Tools needed
for servicing the LOGIQ Totus" on page 8-5 /8-2-7 "PPE Required During Service" on page 8-6.
8-8-23-1 Preparations
1.) Power off/Shutdown the system as described in 1-7-2 "Lockout/tagout procedure" on page 1-25
2.) Remove the Unity Power Cord Fix Brkt as described in 8-8-21 "Replacement of the Unity Power
Cord Fix Brkt" on page 8-150
8-8-23-2 Removal Procedure
8-8-23-3 Installation Procedure
1.) Parts to be installed in reverse order of removal
2.) Perform “Functional Checks after FRU replacement (Debrief Guideline)” as described in Section 8-
12 on page 8-223
Table 8-85 Manpower, Time, Tools, and PPE
Manpower Time Tools PPE
One person Approximately 5 minutes Phillips screwdriver
Cut resistant gloves
Knee Pad

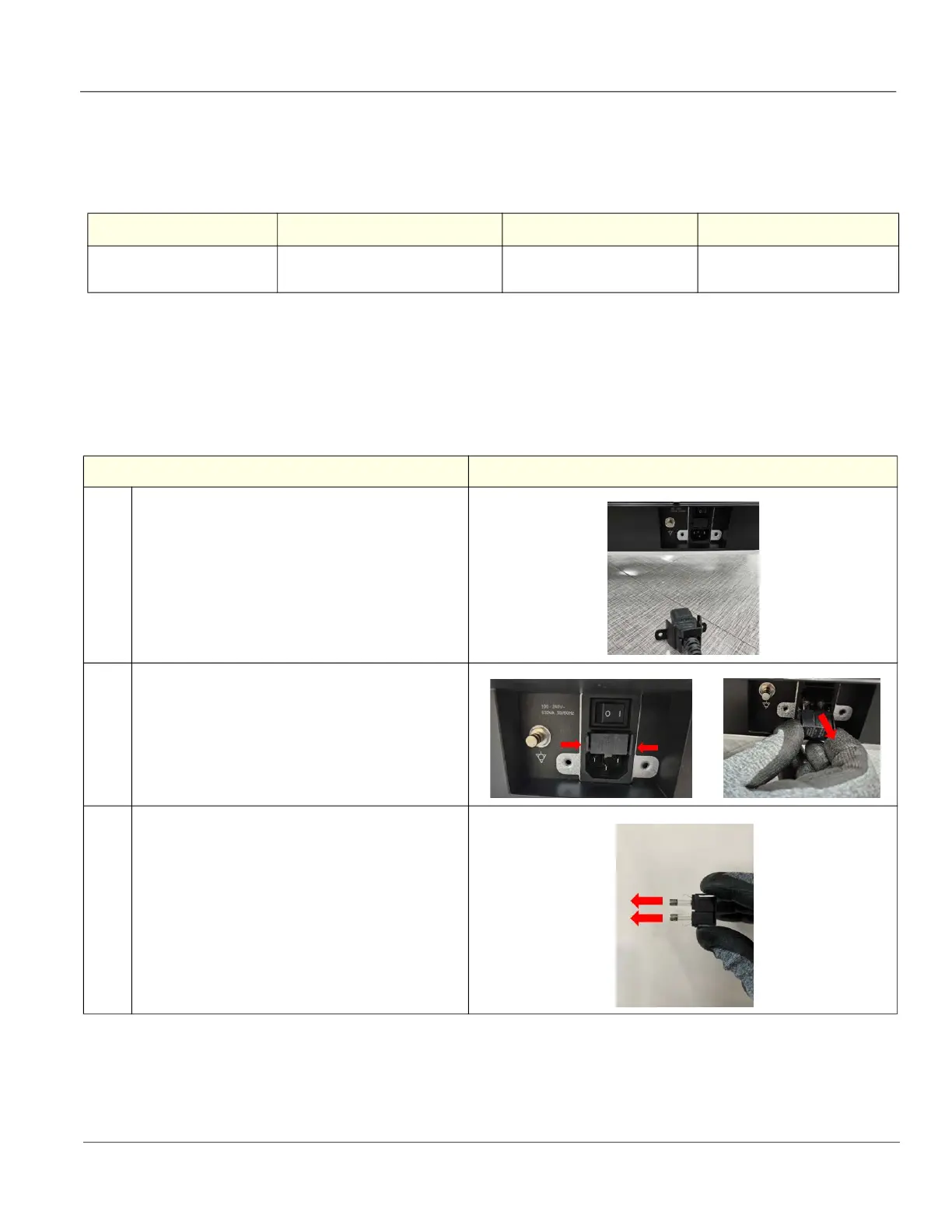

Steps Corresponding Graphic
1. Pull the Power Cord to disconnect the Power Cord
from the console.
2. Push side of the Drawer and pull the Drawer
3. Pull 2 Fuses from the Drawer.
